Fig. 100EXT - Ball Valves - DZR Brass

by Hattersley

Download Add to collection

Description

Ball Valves - DZR Brass

Fig. 100EXT

Features & Benefits

Dezincification resistant.
Light, compact, easy to install and operate.
Improved leak protection.
More resistant to damage during installation.
Optional extension stems for chilled water application

Size	1/4" to 2"
Pressure Rating	PN25
Product Material	DZR Brass
End Connections	BS EN 10226-2:2005 formerly BS21 Taper
Test Pressure	25 bar pneumatic

Object Data

1 Revision

Last Updated

31/08/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

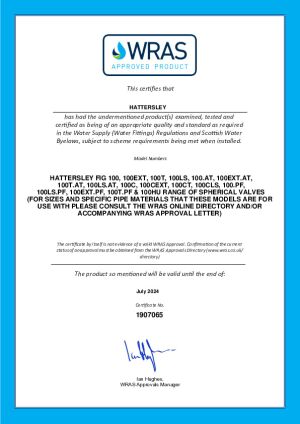

Product Certificates

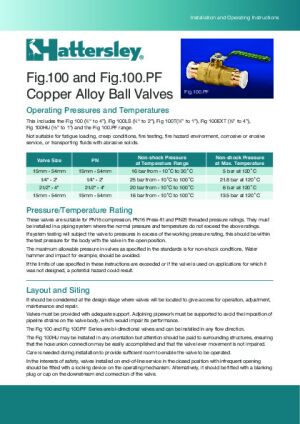

Installation Guide

Maintenance Information

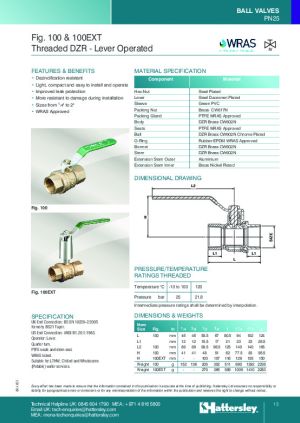

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/hattersley-fig-100ext/document/object-user-guide
135.10 mm
104.50 mm
111.60 mm
122.40 mm
235.10 mm
327.20 mm
439.80 mm
519.00 mm
64.00 mm
733.00 mm
84.00 mm
918.00 mm
a1.00 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b25.00 mm
BIM Object NameHattersley_BallValve_Fig100EXT
Brake Downstand21.00 mm
c27.00 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_06
Code Performancen/a
Colorn/a
Connection Size42.00 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2021-08-31T:09:00:00
d19.50 mm
DescriptionFig. 100EXT - Ball Valves - DZR Brass
Dim X15.00 mm
Dim XX17.00 mm
Documentation Certificateswww.bimstore.co/products/hattersley-fig-100ext/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/hattersley-fig-100ext/document/installation-guide
Documentation Literaturewww.bimstore.co/products/hattersley-fig-100ext/document/product-literature
Documentation Maintenancewww.bimstore.co/products/hattersley-fig-100ext/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/hattersley-fig-100ext/document/technical-data-sheet
Duration UnitYear
e9.50 mm
Expected Life0
Extension MaterialHattersley - Metal - Stainless Steel
f14.50 mm
Featuresn/a
Finishn/a
g18.50 mm
Graden/a
H135.00 mm
Handle Calc16.50 mm
Handle Collar Length45.00 mm
Handle Downstand11.70 mm
Handle Length90.00 mm
Handle MaterialHattersley - PVC - Green
Handle Width33.00 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient96
KeynoteS
L102.00 mm
L123.00 mm
L2140.00 mm
Loss MethodK Coefficient
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
ModelFig. 100EXT - Ball Valves - DZR Brass
Model NumberFig. 100EXT
Model ReferenceFig. 100EXT - Ball Valves - DZR Brass
NBS DescriptionBall valves
NBS Noten/a
NBS Object NameHattersley - Ball valves
NBS Office Master Tagn/a
NBS Reference90-10-90/330
Nominal Depth70.20 mm
Nominal Height170.10 mm
Nominal Length191.00 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size1 1/2"
Sizemm21.00 mm
Spare Partsn/a
Type CommentsFig. 100EXT - Ball Valves - DZR Brass
Type NameFig. 100EXT - Ball Valves - DZR Brass
URLwww.hattersley.com/
Valve Hex Calc57.00 mm
Valve Hex Calc 259.00 mm
Valve MaterialHattersley - Metal - Brass
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@hattersley.com
Warranty Guarantor Partsenquiries@hattersley.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
