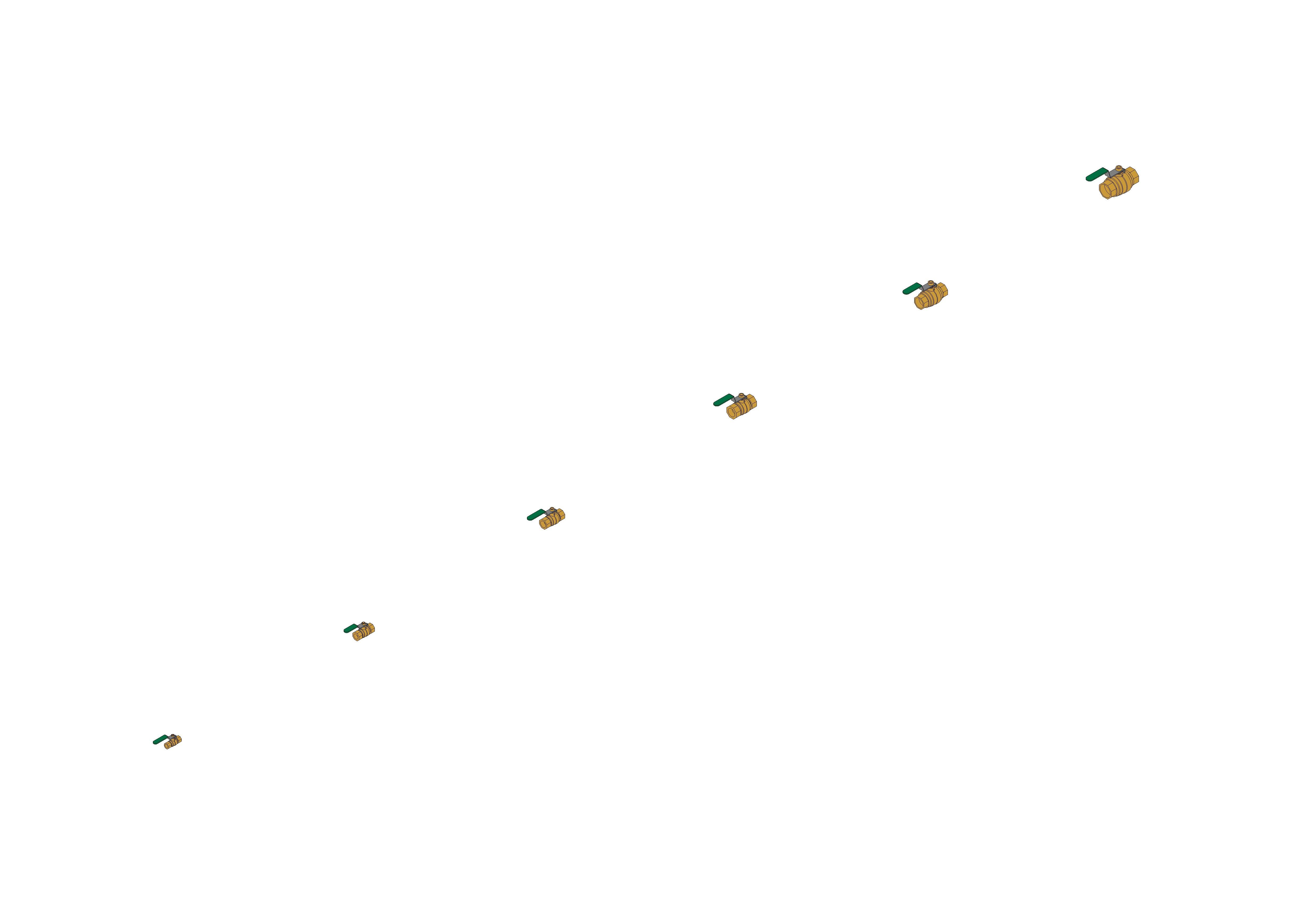

Fig. 100C - Ball Valves - DZR Brass

by Hattersley

Download Add to collection

Description

Ball Valves - DZR Brass

Fig. 100C

Features & Benefits

Dezincification resistant.
Light, compact, easy to install and operate.
Improved leak protection.
More resistant to damage during installation.
Optional extension stems for chilled water applications

Size	15mm to 54mm
Pressure Rating	PN16
Product Material	DZR Brass
End Connections	Compression Ends to BS EN 1254-2:1998
Test Pressure	25 bar pneumatic

Object Data

1 Revision

Last Updated

31/08/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

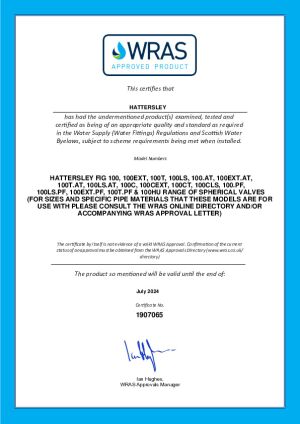

Product Certificates

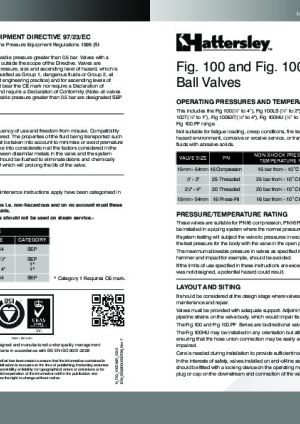

Installation Guide

Maintenance Information

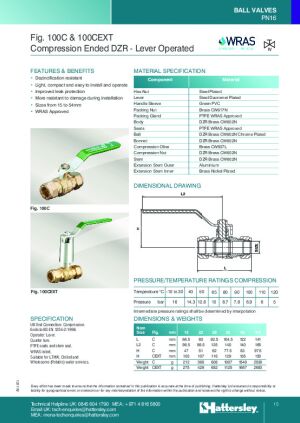

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/hattersley-fig-100c/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
BIM Object NameHattersley_BallValve_Fig100C
Brake Downstand13.00 mm
BSYes
Classification NameUniclass 2015
Classification ValuePr_65_54_95_06
Code Performancen/a
Colorn/a
Connection Size15.00 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2021-08-31T:09:00:00
DescriptionFig. 100C - Ball Valves - DZR Brass
Dim X8.00 mm
Dim XX10.00 mm
Documentation Certificateswww.bimstore.co/products/hattersley-fig-100c/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/hattersley-fig-100c/document/installation-guide
Documentation Literaturewww.bimstore.co/products/hattersley-fig-100c/document/product-literature
Documentation Maintenancewww.bimstore.co/products/hattersley-fig-100c/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/hattersley-fig-100c/document/technical-data-sheet
Duration UnitYear
Expected Life0
Featuresn/a
Finishn/a
Graden/a
H47.00 mm
Handle Calc9.00 mm
Handle Collar Length20.00 mm
Handle Downstand17.00 mm
Handle Length65.00 mm
Handle MaterialHattersley - PVC - Green
Handle Width18.00 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient4
KeynoteS
L66.50 mm
L115.50 mm
L298.50 mm
Loss MethodK Coefficient
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
ModelFig. 100C - Ball Valves - DZR Brass
Model NumberFig. 100C
Model ReferenceFig. 100C - Ball Valves - DZR Brass
NBS DescriptionBall valves
NBS Noten/a
NBS Object NameHattersley - Ball valves
NBS Office Master Tagn/a
NBS Reference90-10-90/330
Nominal Depth27.10 mm
Nominal Height60.50 mm
Nominal Length131.80 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size15mm
Sizemm7.50 mm
Spare Partsn/a
Symbol Length11.25 mm
Type CommentsFig. 100C - Ball Valves - DZR Brass
Type NameFig. 100C - Ball Valves - DZR Brass
URLwww.hattersley.com/
Valve Hax Calc 225.00 mm
Valve Hex Calc23.00 mm
Valve MaterialHattersley - Metal - Brass
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@hattersley.com
Warranty Guarantor Partsenquiries@hattersley.com
