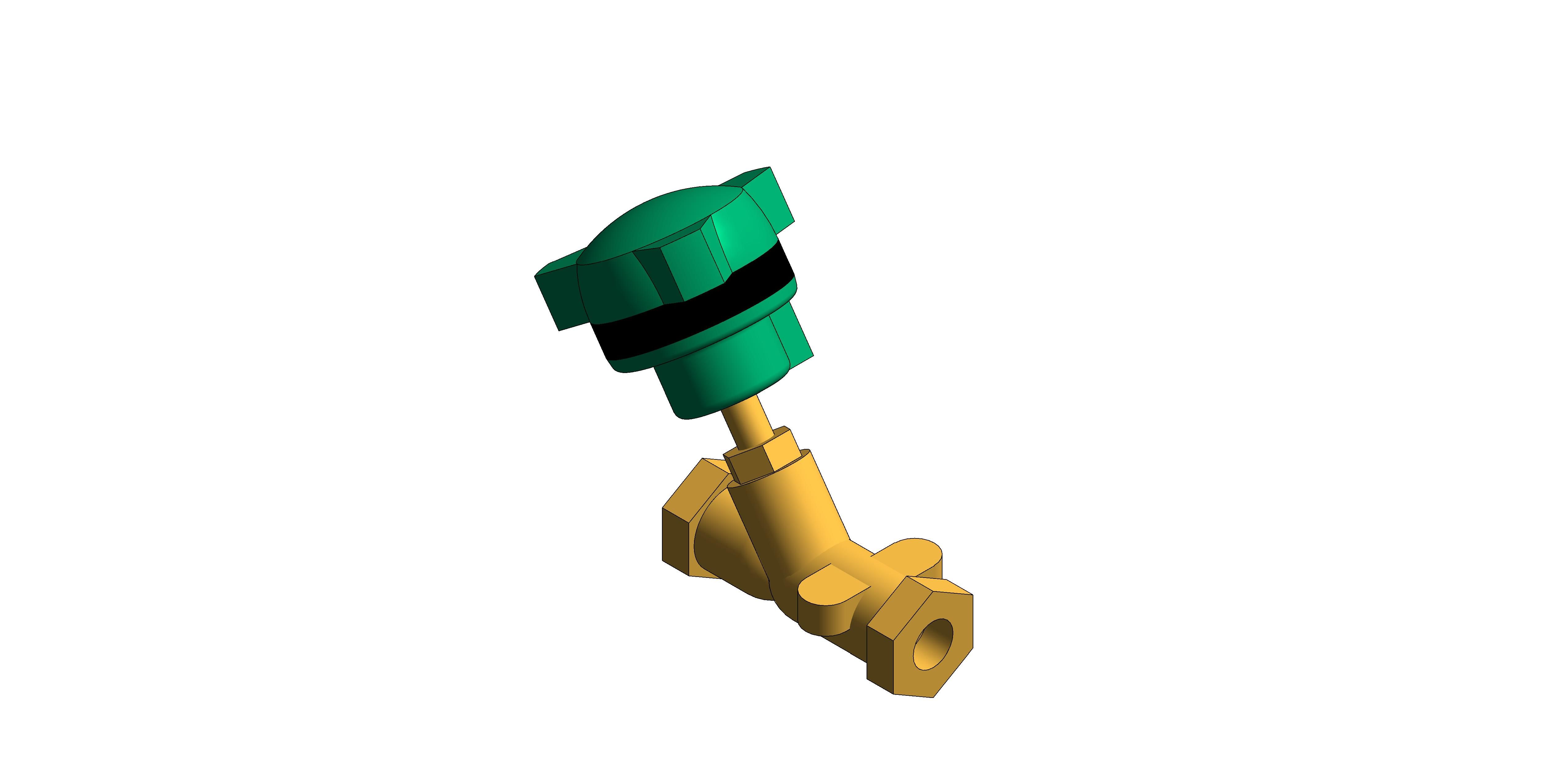

Fig. 1000L - Low Flow Metering Stations - DZR Brass

2.4k
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

2 Revision

Last Updated

10/11/2021

Download BIM

Add to collection

Available for:

Low Flow Metering Stations - DZR Brass

Fig. 1000L

Features & Benefits

Precise and accurate measurement, conforming to BS 7350:1990
Dezincification resistant material preventing corrosion cracking and fungal growth
WRAS Approved for use with potable water up to 99°C
Supplied with red and blue test points for upstream and downstream port identification

* Please refer to Datasheet for full technical information

Pressure Rating	PN20
Temperature Rating	Please see Datasheet for details
Product Material	DZR Brass
End Connections	Please see Datasheet for details

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/hattersley-fig-1000l/document/object-user-guide
Accessibility Performancen/a
Amm87 mm
Angled Piece Origin 139 mm
Assembly CodeD20
Asset TypeFixed
BIM Object NameHattersley_DoubleRegulatingValve_LowFlow_1000L
Bmm105 mm
Body Sec Rad13 mm
Bonnet Disc Radius12 mm
Bonnet Height32 mm
Bonnet Radius12 mm
BSYes
Classification NameUniclass 2015
Classification ValuePr_65_54_95_26
Code Performancen/a
Colorn/a
Connection Size15 mm
Connection Size Radius8 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2021-08-31T:09:00:00
DescriptionFig. 1000L - Low Flow Metering Stations - DZR Brass
Documentation Certificateswww.bimstore.co/products/hattersley-fig-1000l/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/hattersley-fig-1000l/document/installation-guide
Documentation Literaturewww.bimstore.co/products/hattersley-fig-1000l/document/product-literature
Documentation Maintenancewww.bimstore.co/products/hattersley-fig-1000l/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/hattersley-fig-1000l/document/technical-data-sheet
Duration UnitYear
End Connector Diameter30 mm
End Connector Thickness10 mm
Expected Life0
Featuresn/a
Finishn/a
Gland Nut Diameter18 mm
Gland Nut Thickness8 mm
Gland Radius7 mm
Graden/a
Handwheel MaterialPVC, Green
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.DOUBLEREGULATING
K Coefficient2.26
KeynoteS
Loss MethodK Coefficient
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
ModelFig. 1000L - Low Flow Metering Stations - DZR Brass
Model NumberFig. 1000L
Model ReferenceFig. 1000L - Low Flow Metering Stations - DZR Brass
NBS DescriptionDouble regulating valves
NBS Noten/a
NBS Object NameHattersley - Double regulating valves
NBS Office Master Tagn/a
NBS Reference90-10-90/356
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size1/2"
Spare Partsn/a
Stem Length54 mm
Stem Upper Radius5 mm
Test Valve Fixing Depth10 mm
Test Valve Fixing Width15 mm
Test Valve Offset 126 mm
Test Valve Offset 221 mm
Test Valve Offset 320 mm
Test Valve Offset 412 mm
Type CommentsFig. 1000L - Low Flow Metering Stations - DZR Brass
Type NameFig. 1000L - Low Flow Metering Stations - DZR Brass
URLwww.hattersley.com/
Valve MaterialBrass, Soft Yellow
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@hattersley.com
Warranty Guarantor Partsenquiries@hattersley.com
