Fig. 1000 - Metering Stations - DZR Brass

2.2k
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

31/08/2021

Download BIM

Add to collection

Available for:

Metering Stations - DZR Brass

Fig. 1000

Features & Benefits

Precise and accurate measurement, conforming to BS 7350:1990
Dezincification resistant material preventing corrosion cracking and fungal growth
WRAS Approved for use with potable water up to 99ºC
Supplied with red and blue test points for upstream and downstream port identification

Pressure Rating	PN20
Temperature Rating	10 - 100°C
Product Material	DZR Brass
End Connections	Please see Datasheet for details

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/hattersley-fig-1000/document/object-user-guide
A58 mm
A10 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B61 mm

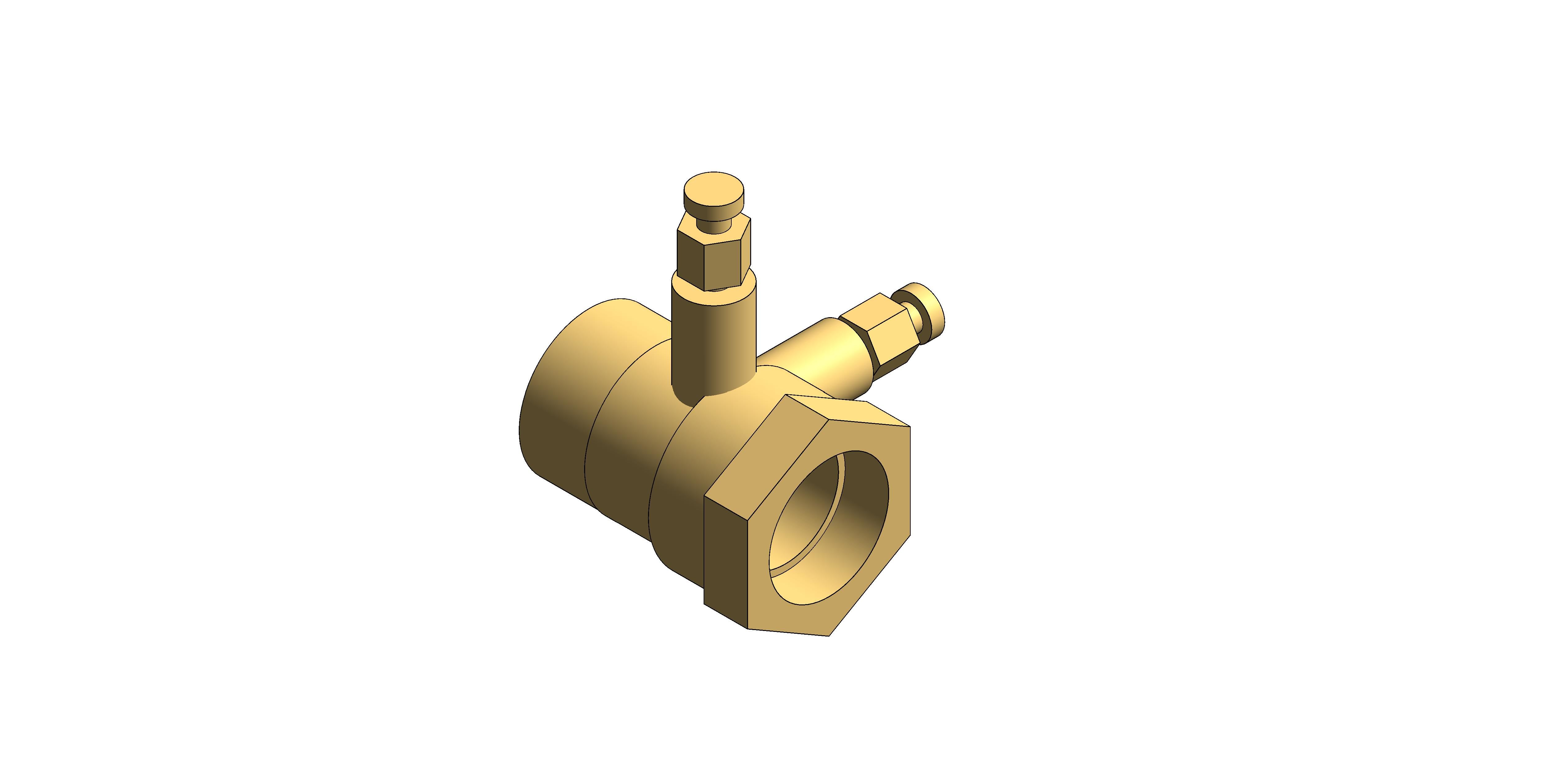

BIM Object NameHattersley_MeteringStation_Fig1000
Centre Left Length13 mm
Centre Left Radius16 mm
Centre Right Radius13 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_50
Code Performancen/a
Colorn/a
Connection Size20 mm
Connection Size Radius10 mm
Connector Length37 mm
Connector Radius9 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2021-08-31T:09:00:00
DescriptionFig. 1000 - Metering Stations - DZR Brass

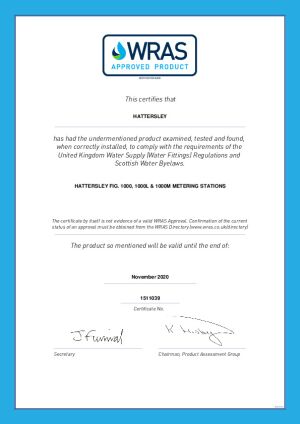

Documentation Certificateswww.bimstore.co/products/hattersley-fig-1000/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/hattersley-fig-1000/document/installation-guide
Documentation Literaturewww.bimstore.co/products/hattersley-fig-1000/document/product-literature

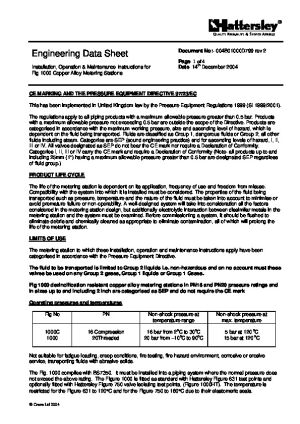

Documentation Maintenancewww.bimstore.co/products/hattersley-fig-1000/document/maintenance-information

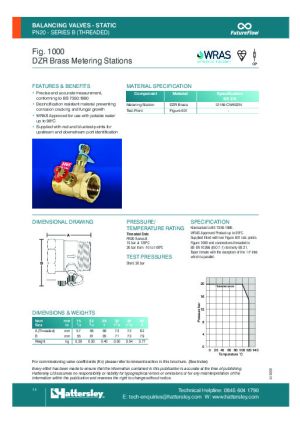

Documentation Technicalwww.bimstore.co/products/hattersley-fig-1000/document/technical-data-sheet
Duration UnitYear
End Nut Diameter33 mm
End Nut Thickness10 mm
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Has Compression AdaptorNo
Ifc Export AsIfcFlowControllerType
Ifc Export TypeIfcFlowMeterType
K Coefficient6.1
KeynoteS
Left Offset23 mm
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
ModelFig. 1000 - Metering Stations - DZR Brass
Model NumberFig. 1000
Model ReferenceFig. 1000 - Metering Stations - DZR Brass
NBS DescriptionMetering valves
NBS Noten/a
NBS Object NameHattersley - Metering valves
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth78 mm
Nominal Height80 mm
Nominal Length58 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Right Offset29 mm
Shapen/a
SizeDN20 - 3/4"
Spare Partsn/a
Test Point Length24 mm
Threaded Nut Length15 mm
Threaded Nut Radius13 mm
Type CommentsFig. 1000 - Metering Stations - DZR Brass
Type NameFig. 1000 - Metering Stations - DZR Brass
URLwww.hattersley.com/
Valve MaterialHattersley - Metal - DZR Copper Alloy
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@hattersley.com
Warranty Guarantor Partsenquiries@hattersley.com
