Sliding Door Hardware | Mortice Locks

Description

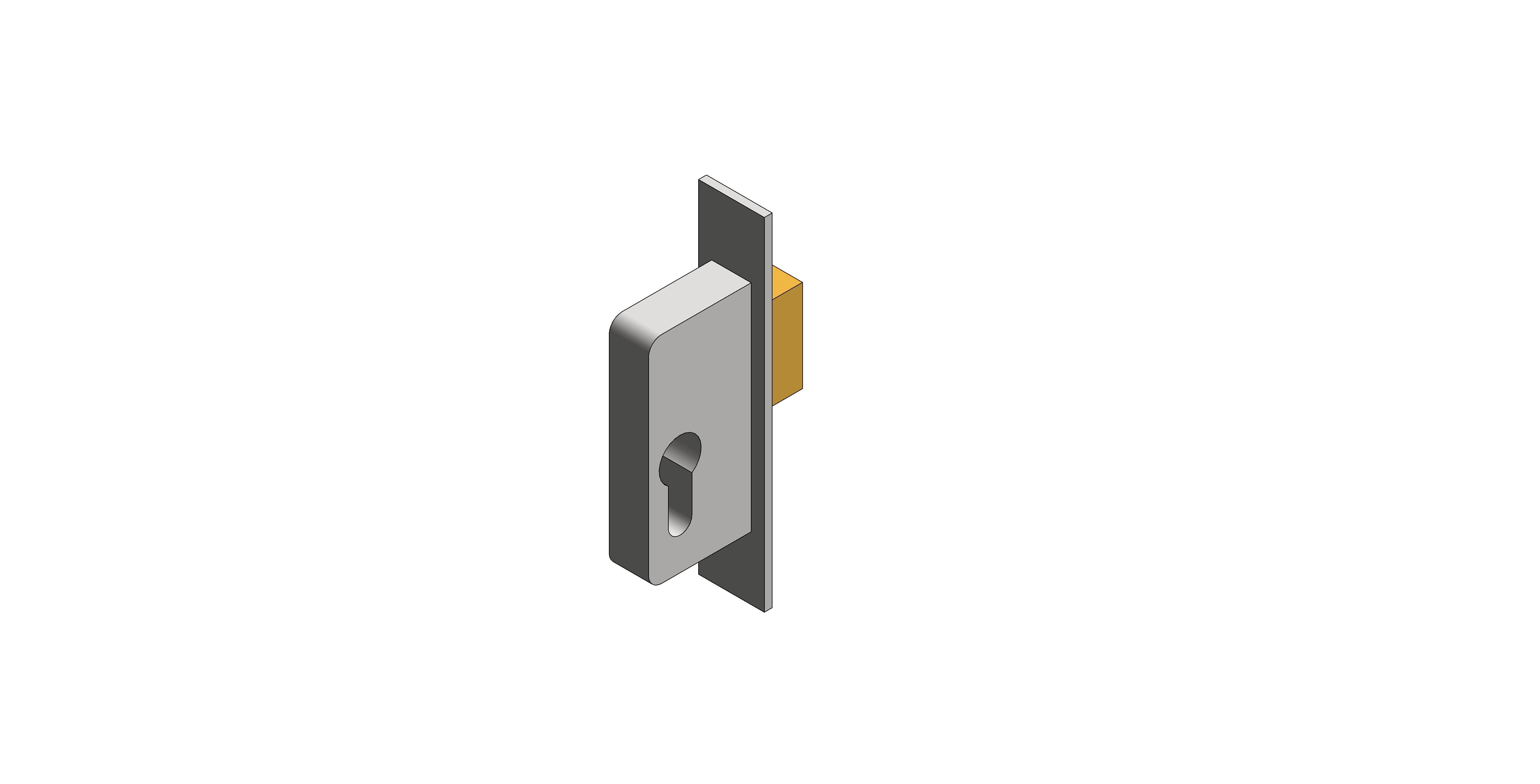

Backset Euro Mortice Lock

Designed for use in a number of situations, including with the HB1920 /HB1930 Series flush pull furniture for large scale doors. The HB2010 PZW is a narrow 30mm backset sliding door lock that can be used in the standard manner, or where two large sliding doors pass across each other.

The HB2010 with two prong locking claws is specifically designed for sliding doors, however the sister lock, the HB2015 utilises the same case dimensions but with a deadbolt suitable for hinge, bi-fold, or pivot doors.

Material: Diecast zinc and brass

Backset: 30mm

Case Depth: 42mm from inside face plate

Does not include escutcheons or cylinder. These need to be ordered separately

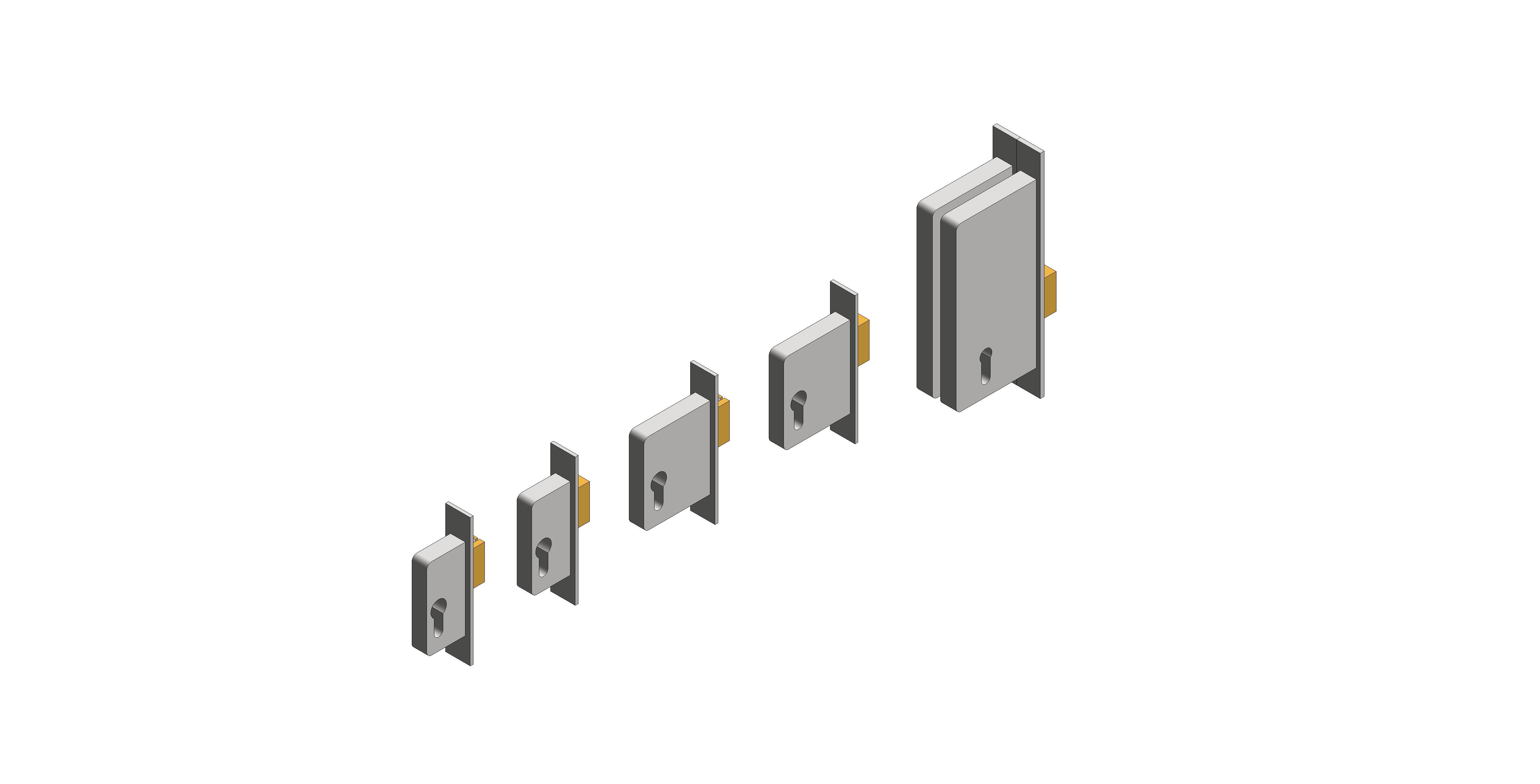

Configurations:
HB 2010 – Sliding Mortice Lock 30mm Backset
HB 2015 – Deadbolt 30mm Backset
HB 2020 – Sliding Mortice Lock 55mm Backset
HB 2025 – Deadbolt 55mm Backset
HB 2050 – Adjustable Roller Ball Lock 55mm Backset
