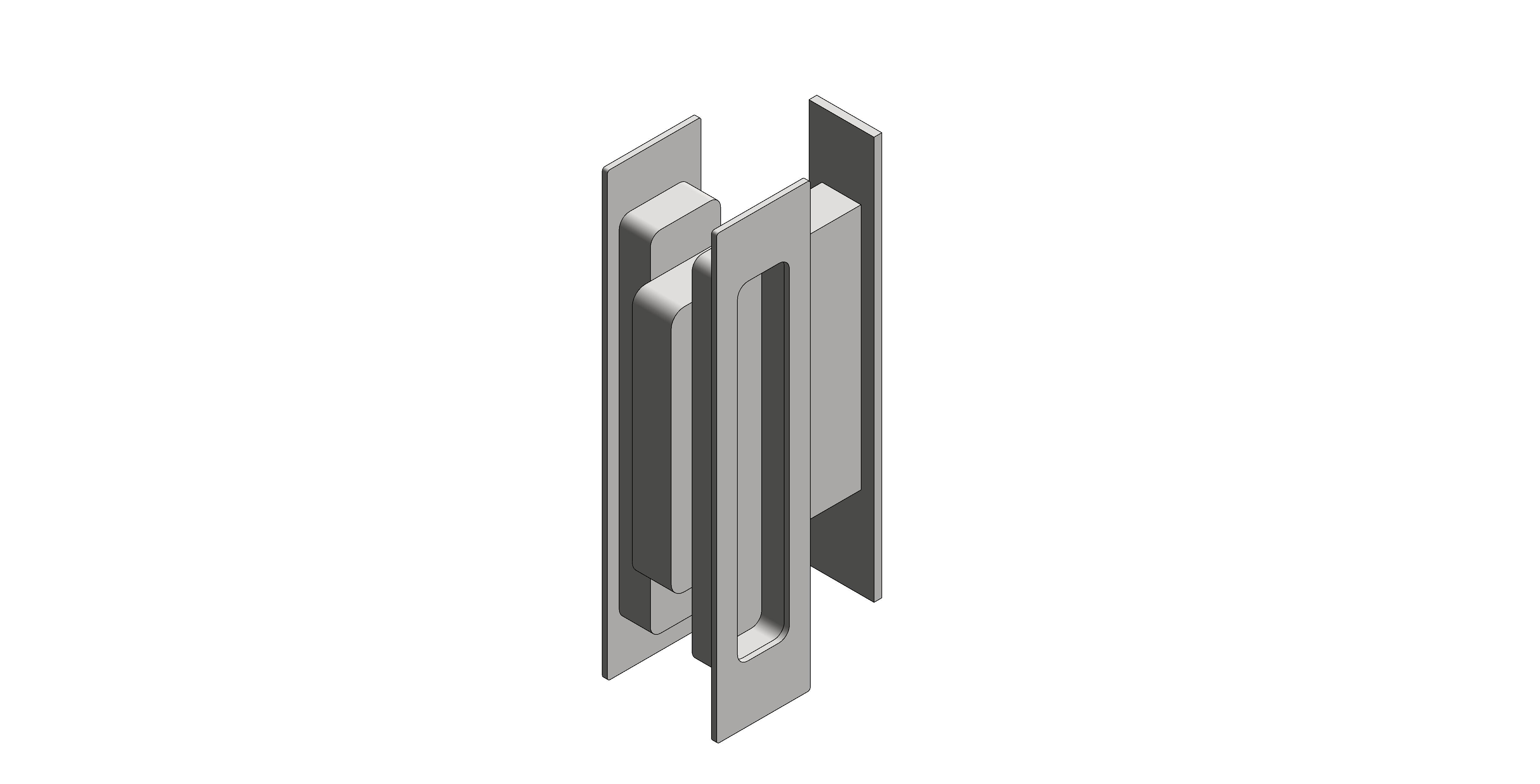

Sliding Door Hardware | HB690 & HB690-35 Series Privacy Set

Description

HB690 Series Sliding Door Privacy Lock – 55mm Backset

Halliday + Baillie Cavity Sliding Privacy Lock Series.

The HB690 170mm length privacy sliding door lock includes a snib flush pull inside and emergency release flush pull outside for safe, efficient, locking on bathroom and washroom cavity sliders. The HB690 comes with a small recessed end pull for easy use to pull the slider from the pocket. Minimum door thickness required is 38mm. For door 35mm-38mm thickness, please order the HB690/35 with shallower flush pulls.

Please note that the “HB690 Series” denotes the type of lock body used with various flush pull configurations. The “HB630” set has a key and snib both sides, and is one possible configuration in the series.

Material: Diecast zinc with brass and 316 stainless steel

Backset : 55mm

Minimum door thickness : 38mm (for 35-37mm doors please use the HB690/35 set)

Flush pulls : 170mm x 36mm x 14mm

Internal Depth: 11mm

Suitable for timber or aluminium doors.

Configurations:
HB 690 – Privacy Set with Snib Inside and Emergency Release Pull Outside
HB 692 – Snib In, Blank Out
HB 693 – Snib In, No Pull Out
HB 694 – Snib Pulls to Both Sides
