Sliding Door Hardware | HB630 Series Lock Sets

Description

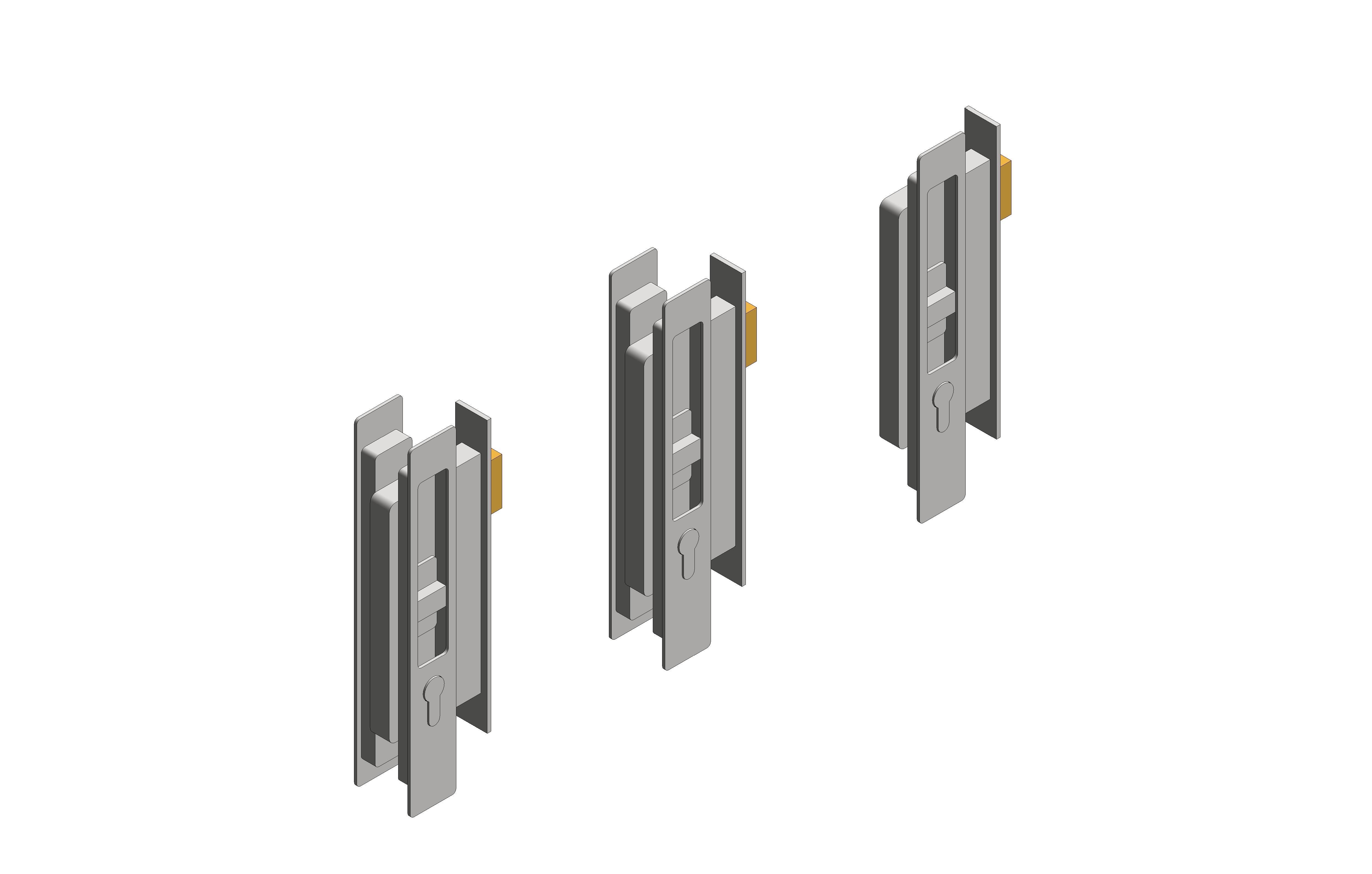

HB630 Series Sliding Door Lock 55mm Backset

Ideal for external timber and aluminium sliding doors where locking is required.

Halliday + Baillie Key Lock Sliding System with 55mm backset can be used on either internal or external doors. The HB630 Series has several configurations, to suit door usage. Cylinders are ordered separately with confirmation of the door thickness.

Please note that the “HB630 Series” denotes the type of lock body used with various flush pull configurations. The “HB630” set has a key and snib both sides, and is one possible configuration in the series.

Material: Diecast zinc with brass and 316 stainless steel

Backset : 55mm

Minimum door thickness : 38mm

Flush pulls : 250mm x 36mm x 13mm

Suitable for timber or aluminium doors with wide stiles

Configurations:
HB 630 – Key and Snib Both Sides
HB 632 – Key Snib In, Blank Out
HB 633 – Key Snib In, No Pull Out

Product code: HB 630
