Sliding Door Hardware | Flush Bolts

by Halliday + Baillie

Download Add to collection

Description

Our individual locks and deadbolts provide high quality NZ and German made security for use on sliding and swing doors to use with your handles, or with ours.

Configurations:

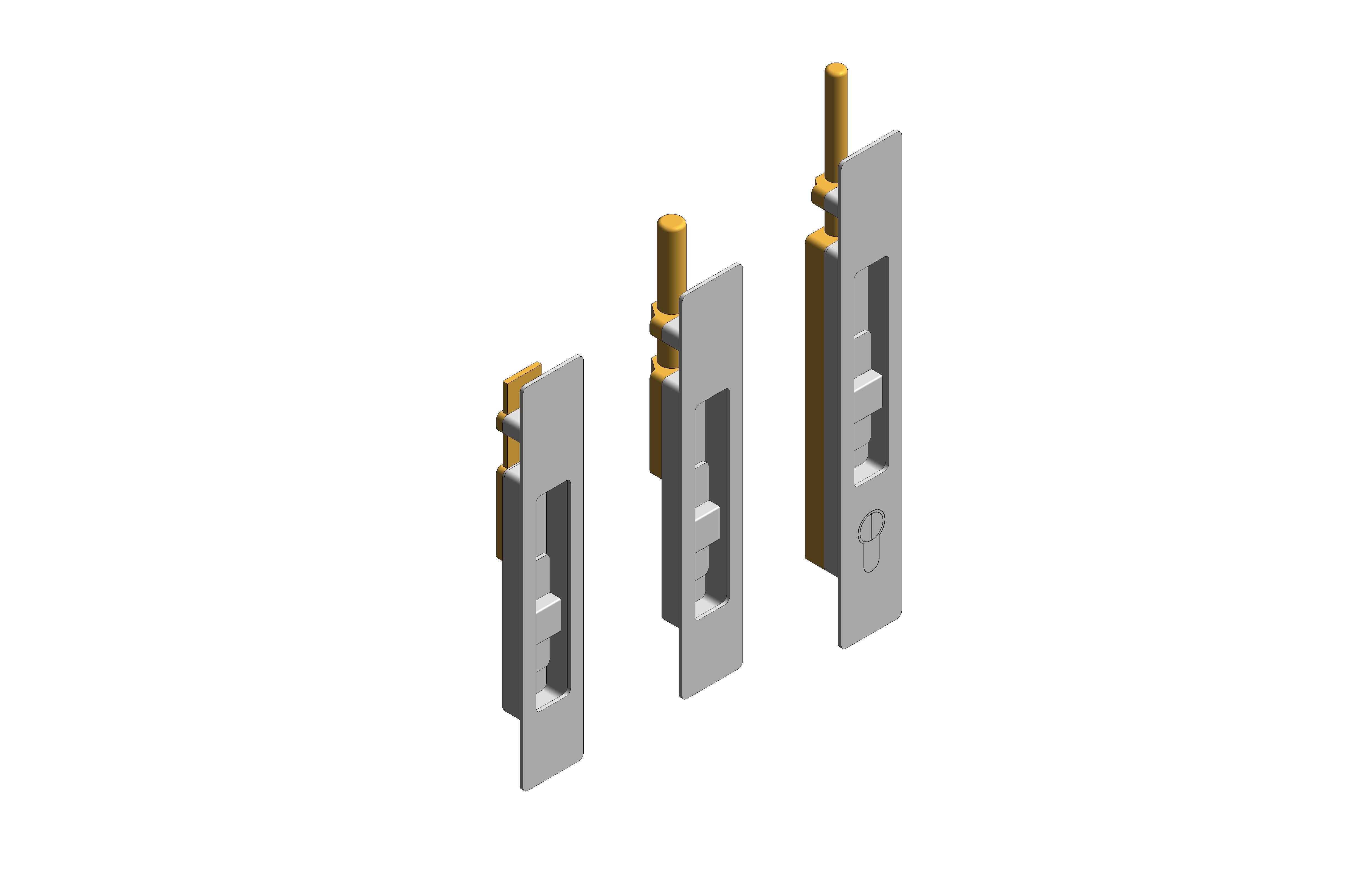

HB 1810 – Flush Bolts
HB 1820 – Flush Bolts
HB 1830 – Flush Bolts

Object Data

1 Revision

Last Updated

30/09/2025

Available Software

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Literature

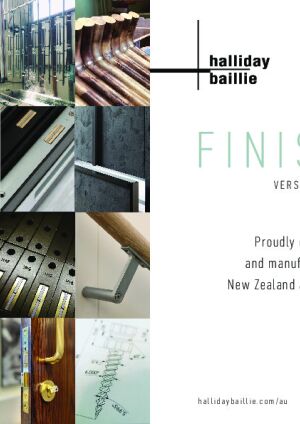

Colour Guide

Product Data Sheet

Object metadata

_AuthorHalliday + Baillie
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bysales@hallidayandbaillie.com
_Current Revision2
_Distributed Bywww.bimstoreoz.au/
Accessibility Performancen/a
Assembly CodeC1020410
Asset TypeFixed
BIM Object NameDoorHardware_HallidayBaillie_FlushBolts_(HB1810-HB1820-HB1830)
Classification NameUniclass2015
Classification ValuePr_30_36_59_29
Code Performancen/a
ColorSee FinishesSheet parameter
Constituentsn/a
Constraints1
Created Bysales@hallidayandbaillie.com
Created On2025-09-15T09:00:00
Default Elevation914.4 mm
Depth18.0 mm
DescriptionFlush Bolt (Flat Throw)
Documentation Certificateswww.hallidaybaillie.com/au/product/hb1810-flush-bolt-flat-throw-for-alumnium-sliding-doors/
Documentation Installation Guidewww.hallidaybaillie.com/au/wp-content/uploads/sites/10/2022/09/HB_NZ_HB18XX-Flush-Bolt-Installation-Guide.pdf
Documentation Literaturewww.hallidaybaillie.com/au/product/hb1810-flush-bolt-flat-throw-for-alumnium-sliding-doors/
Documentation Maintenancewww.hallidaybaillie.com/au/product/hb1810-flush-bolt-flat-throw-for-alumnium-sliding-doors/
Documentation Technicalwww.hallidaybaillie.com/au/wp-content/uploads/sites/10/2022/05/HB_NZ_Bolt_HB1810.pdf
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Finishes Sheetwww.hallidaybaillie.com/au/wp-content/uploads/sites/10/2022/05/HB-AU-Finish-Sheet-2025.pdf
Graden/a
HB 1810Yes
HB 1820No
HB 1830No
Height220.0 mm
Ifc Export AsIfcDiscreteAccessoryType
Ifc Export TypeUSERDEFINED
KeynoteL20
ManufacturerHalliday + Baillie
Manufacturer NameHalliday + Baillie
MaterialMilled solid brass and stainless steel
ModelHB 1810
Model NumberHB 1810
Model ReferenceHB 1810 Flush Bolts
NBS DescriptionFlush pull handles
NBS Object NameHalliday + Baillie - Flush pull handles
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth18.0 mm
Nominal Height220.0 mm
Nominal Length38.0 mm
Production Year2025
Referenced Standardn/a
Replacement Costn/a
ShapeRectangular
Size220mm (H) x 38mm (W) x 20mm (D)
Spare Partsn/a
Type NameHB 1810 Flush Bolts
URLwww.hallidaybaillie.com/
Void Bottom77.9 mm
Void Top53.5 mm
Warranty Descriptionwww.hallidaybaillie.com/au/warranties/
Warranty Duration Labor0
Warranty Duration Parts5
Warranty Duration UnitYears
Warranty Guarantor Laborsales@hallidayandbaillie.com
Warranty Guarantor Partssales@hallidayandbaillie.com
Width38.0 mm

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
