Sliding Door Hardware | 300mm+ Flush Pulls

Description

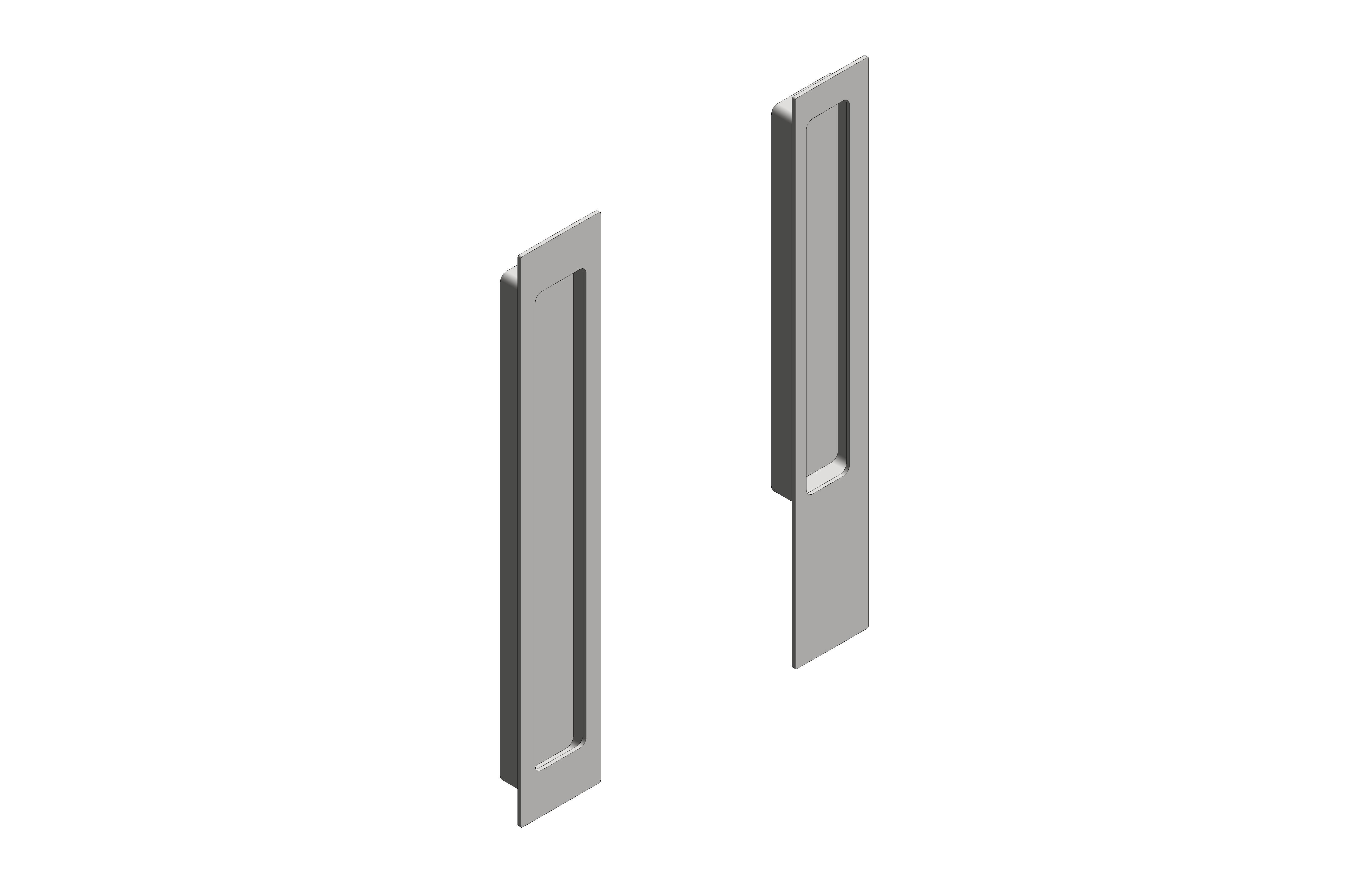

Designed to compliment the existing range of Halliday and Baillie Flush Pulls, the new larger HB1470 responds to the increasing size of interior doors. For hinge or pivot doors the companion HB1475 Bi-fold Flush Pull keeps a seamless look across a project.

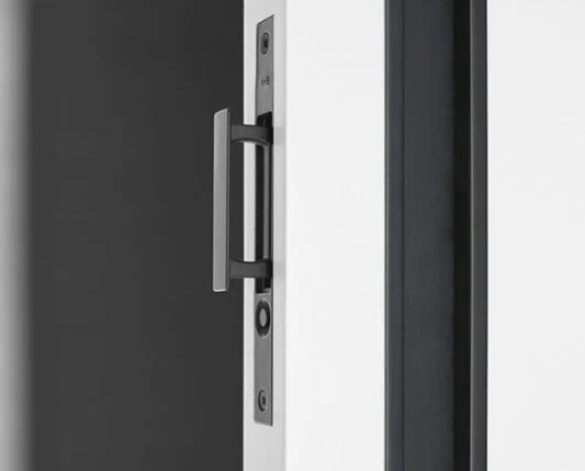

(Shown with an HB680 End Pull - Flush Pulls sold separately)

Minimum Door Thickness Required: 33mm if used back to back with no end pull, 42mm if used back to back with an HB680 End Pull as pictured.

Material: Solid brass Flush pulls : 310mm x 50mm x 15mm

Suitable for timber or aluminium doors. HB1410 timber fixing kit to be ordered separately

For finish options please see out current finishes sheet. Please check with your local Halliday + Baillie representative as not all finishes are available in all regions.

Flush pulls are designed to be mounted with the body within the thickness of the door, and the face surface mounted - total projection is 2mm. Fully recessed mounting is possible on timber doors with the appropriate door thickness. Using glue, epoxy or silicone products etc to secure flush pulls to the door is not required or recommended for installation, and may void warrantee.

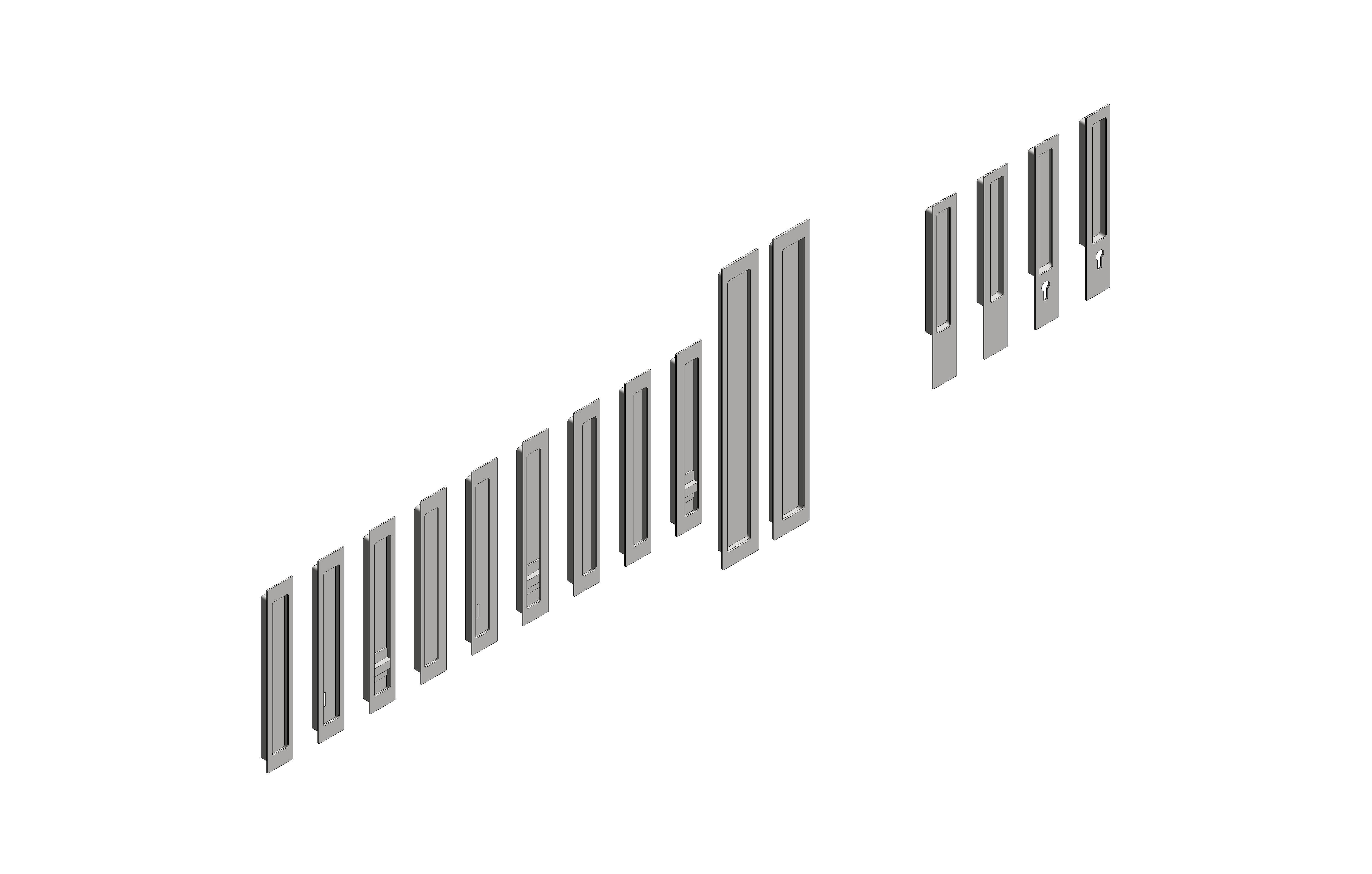

Configurations:
HB 1475RH BFP – Large Offset Flush Pull - Right Handed
HB 1575RH BFP – 510mm Extra Large Offset Flush Pull - Right Handed
HB 1475LH SFP – Large Offset Flush Pull - Left Handed -  Snib
HB 1475RH IFP – Large Offset Flush Pull - Right Handed - Indicator
HB 1475RH SFP – Large Offset Flush Pull - Right Handed - Snib
HB 1575LH BFP – 510mm Extra Large Offset Flush Pull - Left Handed
HB 1475LH IFP – Large Offset Flush Pull - Left Handed -Indicator
HB 1475LH BFP – Large Offset Flush Pull - Left Handed
HB 1470 SFP – 310mm Flush Pull - Snib
HB 1470 IFP – 310mm Flush Pull - Indicator
HB 1470 BFP – 310mm Flush Pull
