Grohe Sianne System 280 - 1142740000
by GROHE
Description
Product Number - 1142740000
EAN - 4067393106944
Colour - Chrome
PRODUCT MAIN FEATURES
Product Page - https://www.grohe.com/en-GB/product/sianne-system-280-shower-system-with-thermostat-for-wall-mounting-chrome-1142740000
Object Data
1 Revision
Last Updated
06/10/2026
Available Software
BS1192:4
Compliant
BSB
Compliant
EPD
Not Available
Object metadata
- _AuthorAG 213
- _Authorized Bybimstore
- _Bim Spec Guid0
- _BS Bible Version17
- _Created Bywww.bimstore.co/
- _Current Revision1
- _Distributed Bywww.bimstore.co/

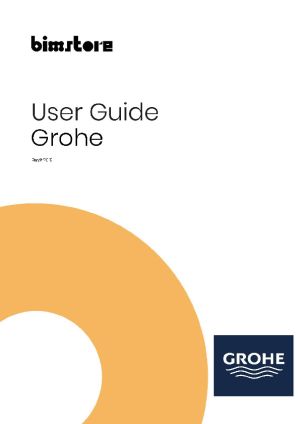

- _Object User Guidewww.bimstore.co/products/03f89ab7-3872-4617-954b-8b2173238e6e/document/object-user-guide
- Accessibility Performancen/a
- Assembly CodeD2010
- Asset TypeFixed
- BIM Object NameGrohe_PlumbingFixture_SianneSystem280_ShowerSystem_1142740000
- Classification NameUniclass2015
- Classification ValuePr_40_20_87_75
- CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
- Code Performancen/a
- ColorChrome
- Constituentsn/a
- Cradle To Cradle Certificationn/a
- Created Byinfo-uk@grohe.com
- Created On2026-09-15T09:00:00
- CW ConnectionNo
- Default Elevation0.0 mm
- DescriptionSIENNA SYSTEM 280 Shower System

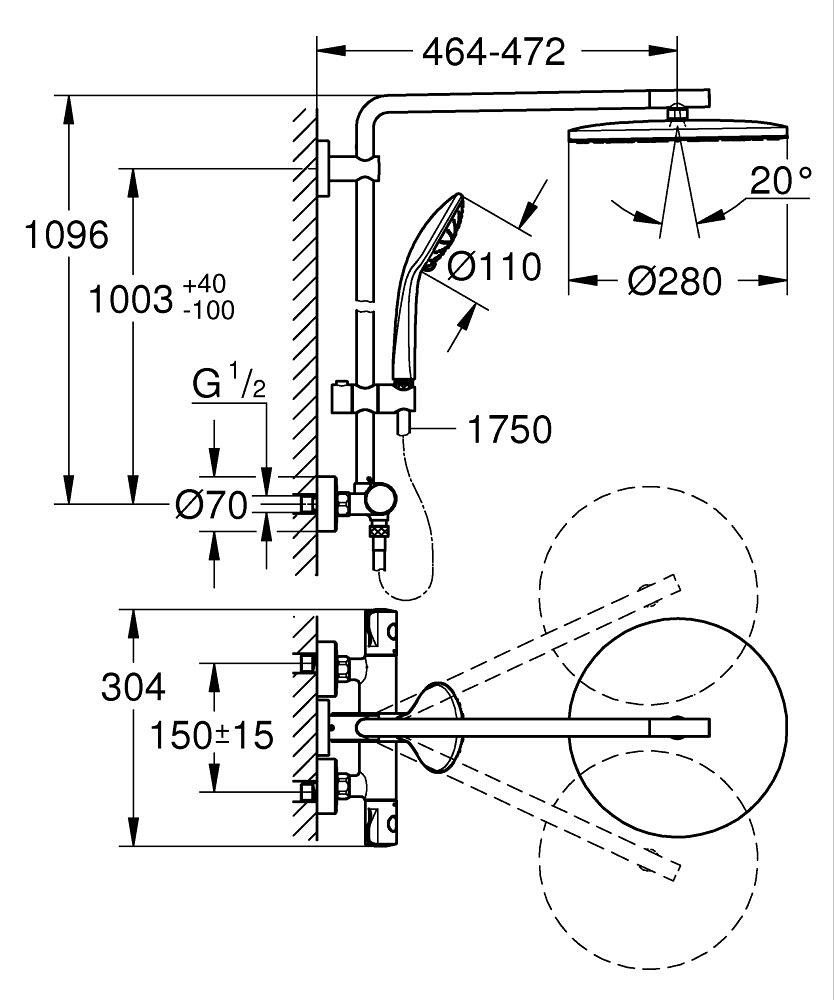

- Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/2000/2200/2270/2275/2275888/1280/2275888.jpg
- Documentation Certificateswww.bimstore.co/products/03f89ab7-3872-4617-954b-8b2173238e6e/document/product-certificates
- Documentation Installation Guidewww.bimstore.co/products/03f89ab7-3872-4617-954b-8b2173238e6e/document/installation-guide
- Documentation Literaturewww.bimstore.co/products/03f89ab7-3872-4617-954b-8b2173238e6e/document/product-literature
- Documentation Maintenancewww.bimstore.co/products/03f89ab7-3872-4617-954b-8b2173238e6e/document/maintenance-information
- Documentation Technicalwww.bimstore.co/products/03f89ab7-3872-4617-954b-8b2173238e6e/document/technical-data-sheet
- Duration UnitYears
- EcojoyNo
- EF000008304
- EF0000401143
- EF000049472.0 mm
- EF000551280.0 mm
- EF001469not relevant
- EF00170770
- EF002286External thread
- EF002671Chrome
- EF003454false
- EF003829false
- EF004250Brass
- EF005084Wall
- EF006009true
- EF006013false
- EF006974Thermostatic
- EF0071052
- EF017567FALSE
- EF020103false
- EF0207851/2 inch
- EF021457false
- EF021607false
- EF021720true
- EF021760true
- EF022168true
- EF022284false
- EF023051Mechanical
- EF023686not applicable
- EF023957true
- EF024045true
- EF024792false
- EF024885true
- EF024921false
- EF025090false
- EF025091false
- EF025093not applicable
- EF0250941750
- EF025095not applicable
- EF025096true
- EF0250977.6 L/s
- EFSE0002true
- Expected Life0
- Export Type to IFC AsIfcPipeFitting
- Featuresn/a
- Finishn/a
- Full Recyclability Of PlasticAll plastic components are fully recyclable
- Graden/a
- GROHE Social Committmentgreen.grohe.com/social_engagement
- GROHE Sustainabilitygreen.grohe.com
- HW ConnectionNo
- Ifc Export AsIfcPipeFitting
- Ifc Export TypeIfcPipeFittingType
- KeynoteN13
- ManufacturerGrohe
- Manufacturer NameGrohe
- Materialn/a
- ModelSIENNA SYSTEM 280 Shower System
- Model Number1142740000
- Model ReferenceSIENNA SYSTEM 280 Shower System
- NBS DescriptionShower fittings package
- NBS Noten/a
- NBS Object NameGrohe - Shower fittings package
- NBS Office Master Tagn/a
- NBS Reference45-35-70/330
- Nominal Depth0.0 mm
- Nominal Height0.0 mm
- Nominal Length0.0 mm
- PQ Diagram Linkcdn.cloud.grohe.com/PQCharts/lores/1/114/original/1142740000-pqchart-en_GB.svg
- Primary MaterialGrohe_Chrome
- Product Descriptionconsisting of: horizontal swivable 450 mm shower arm exposed thermostat with Aquadimmer function allows change between: head shower Euphoria 280 metal shower face spray pattern: Rain maximum flow rate (at 3 bar): 7.5 l/min with ball joint, rotation angle ± 10° hand shower Euphoria 110 Massage spray patterns: Rain, SmartRain, Massage maximum flow rate (at 3 bar): 7.6 l/min adjustable in height with gliding element shower hose Silverflex 1750 mm, 1/2" x 1/2" (114 476) maximum flow rate system (at 3 bar): 7.6 l/min minimum flow rate 5 l/min GROHE TurboStat - compact cartridge with wax thermoelement GROHE SafeStop - safety button at 38°C GROHE SafeStop Plus - integrated temperature limiter at max. 43°C GROHE Aquadimmer Shower - select the shower and set flow with one turn ergonomic handles GROHE DreamSpray - perfect spray pattern GROHE SprayDimmer - stepless flow rate adjustment GROHE SpeedClean - effortless limescale removal Flexible Installation - 1 adjustable bracket for existing drill holes Inner WaterGuide - inner insulation for surface protection TwistStop - to prevent hose from twisting GROHE LongLife finish suitable for instantaneous heaters from 18 kW/h optional upgrade: GROHE EasyReach tray (26 362), sold separately
- Production Year2026
- Product Number1142740000
- Product Page URLwww.grohe.co.uk/en_gb/-1142740000.html
- Product Short TextShower system with thermostatic mixer for wall mounting
- Product TypeShower System
- Referenced Standardn/a
- Replacement Costn/a
- Shapen/a
- Sizen/a
- Spare Partsinfo-uk@grohe.com
- Sustainability Awardgreen.grohe.com/awards
- Sustainability Reportgreen.grohe.com/reporting
- TPI Document Linkcdn.cloud.grohe.com/tpi/2000/2200/2270/2278/2278172/original/2278172.pdf cdn.cloud.grohe.com/tpi/2000/2200/2200/2208/2208652/original/2208652.pdf
- Type CommentsSIENNA SYSTEM 280 Shower System
- Type IFC Predefined TypeIfcPipeFittingType
- Type NameSIENNA SYSTEM 280 Shower System
- URLwww.grohe.co.uk/
- Vent ConnectionNo
- Warranty Descriptionn/a
- Warranty Duration Labor0
- Warranty Duration Parts0
- Warranty Duration UnitYears
- Warranty Guarantor Laborinfo-uk@grohe.com
- Warranty Guarantor Partsinfo-uk@grohe.com
- Waste ConnectionNo
We have more variations, please download the object to get them all.
Sustainability & Environmental Data
Not available.
Environmental Product Declarations
There are no EPDs.
