RAINSHOWER COSMOPOLITAN 310 Head shower set ceiling 142 mm, 1 spray (26067AL0)

Description

consisting of:
head shower Rainshower Cosmopolitan 310 (27 478)
material: metal
1 spray pattern: Rain
Rainshower shower arm ceiling 142 mm (28 724)
GROHE EcoJoy 9.5 l/min flow limiter
GROHE DreamSpray perfect spray pattern
GROHE StarLight finish
SpeedClean anti-lime system
suitable for instantaneous heater
min. recommended pressure 1.0 bar

Object Data

1 Revision

Last Updated

16/12/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

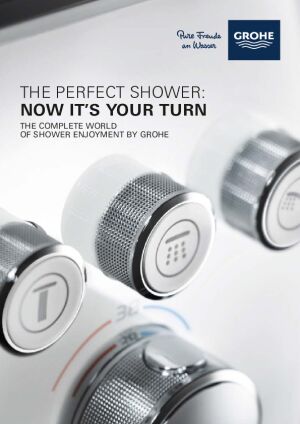

Product Literature

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/grohe-rainshower-cosmopolitan-head-shower-set/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010710
Asset TypeFixed
BIM Object NameGrohe_PlumbingFixtures_RainshowerCosmopolitan310_HeadShowerSet_26067AL0
Classification NameUniclass2015
Classification ValuePr_40_20_87_76
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorGraphite
Constituentsn/a
Cradle To Cradle Certificationn/a
Created Byinfo-uk@grohe.com
Created On2021-12-07 T:09:00:00
CW ConnectionNo
Default Elevation0.0 mm
Descriptionconsisting of: head shower Rainshower Cosmopolitan 310 (27 478) material: metal 1 spray pattern: Rain Rainshower shower arm ceiling 142 mm (28 724) GROHE EcoJoy 9.5 l/min flow limiter GROHE DreamSpray perfect spray pattern GROHE StarLight finish SpeedClean anti-lime system suitable for instantaneous heater min. recommended pressure 1.0 bar
Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/1000/1600/1680/1687/1687642/1280/1687642.jpg
Documentation Certificateswww.bimstore.co/products/grohe-rainshower-cosmopolitan-head-shower-set/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/grohe-rainshower-cosmopolitan-head-shower-set/document/installation-guide
Documentation Literaturewww.bimstore.co/products/grohe-rainshower-cosmopolitan-head-shower-set/document/product-literature
Documentation Maintenancewww.bimstore.co/products/grohe-rainshower-cosmopolitan-head-shower-set/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/grohe-rainshower-cosmopolitan-head-shower-set/document/technical-data-sheet
Duration UnitYear
EcojoyNo
EF000008310.0 mm
EF000040185.0 mm
EF000049185.0 mm
EF000051Cascade spout
EF0003030.0 mm
EF000443External thread
EF000551310.0 mm
EF002671Other
EF0127538.0
EF015309185.0 mm
EF0210401
EF021480Yes
EF0218278.0
EF022042Z
EF022726External thread
EF0234521/2 inch
EF023686Aluminium
Expected Life0
Featuresn/a
Finishn/a
Full Recyclability Of PlasticAll plastic components are fully recycable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilitygreen.grohe.com
HW ConnectionYes
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
Installation Videon/a
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
Model26067AL0
Model Number26067AL0
Model ReferenceHead shower set ceiling 142 mm, 1 spray
NBS DescriptionShower heads
NBS Noten/a
NBS Object NameGrohe - Shower heads
NBS Office Master Tagn/a
NBS Reference45-35-70/333
Nominal Depth185.0 mm
Nominal Height185.0 mm
Nominal Length310.0 mm
PQ Diagram Linkcdn.cloud.grohe.com/PQCharts/lores/2/260/original/26067AL0-pqchart-en_GB.svg
Primary MaterialGrohe - Metal - Brushed Hard Graphite
Product Descriptionconsisting of: head shower Rainshower Cosmopolitan 310 (27 478) material: metal 1 spray pattern: Rain Rainshower shower arm ceiling 142 mm (28 724) GROHE EcoJoy 9.5 l/min flow limiter GROHE DreamSpray perfect spray pattern GROHE StarLight finish SpeedClean anti-lime system suitable for instantaneous heater min. recommended pressure 1.0 bar
Production Year2021
Product Number26067AL0
Product Short TextHead shower set ceiling 142 mm, 1 spray
Product TypeShower Set
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size310mm x 185mm x 185mm
Spare Partsn/a
Sustainability Awardgreen.grohe.com/awards
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkcdn.cloud.grohe.com/tpi/100000/100000/100000/100200/100240/100242/100242661/original/100242661.pdf
Type CommentsHead shower set ceiling 142 mm, 1 spray
Type NameHead shower set ceiling 142 mm, 1 spray
URLwww.grohe.co.uk/en_gb/
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo
