GATE112023 - Gate Valves

by Reliance Valves

Download Add to collection

Description

GATE112023 - Gate Valves

Object Data

1 Revision

Last Updated

07/05/2024

Available Software

EPD

Not Available

Accompanying literature

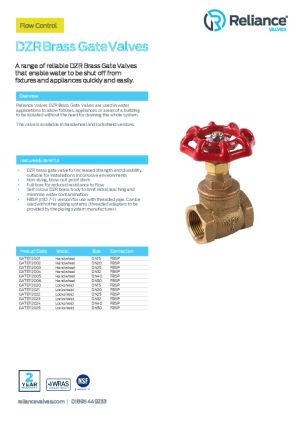

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorPeter Graham
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.rwc.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeD2090900
Asset TypeFixed
BIM Object NameRWC_FlowControl_GateValves_GATE112023
Classification NameUniclass2015
Classification ValuePr_65_54_95_15
Code Performancen/a
Colorn/a
Connector DescriptionDN32 1¼" FBSP DZR Lockshield Gate Valve
Connector Diameter39 mm
Connector Height 10 mm
Connector Left Right0 mm
Constituentsn/a
Created Bytechnical@rwc.co.uk
Created On22-11-2023
Default Elevation0 mm
DescriptionDN32 1¼" FBSP DZR Lockshield Gate Valve for the tamperproof isolation of water flow
Documentation Certificates--Link From Website--
Documentation Installation Guide--Link From Website--
Documentation Literature--Link From Website--
Documentation Maintenance--Link From Website--
Documentation Technical--Link From Website--
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Flow0.0 L/s
Graden/a
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingTypeEnum.Connector
KeynoteS
ManufacturerReliance Worldwide Corporation (UK) Ltd.
Manufacturer NameReliance Worldwide Corporation (UK) Ltd.
Materialn/a
ModelDN32 1¼" FBSP DZR Lockshield Gate Valve GATE112023
Model NumberGATE112023
Model ReferenceGATE112023
NBS DescriptionCopper alloy gate valves
NBS Object NameRWC - Gate Valves
NBS Office Master Tagn/a
NBS Reference90-10-90/342 Pr_65_54_95_88 Pr_65_54_95_88
Nominal Depth42 mm
Nominal Height126 mm
Nominal Length64 mm
Pressure Drop0.0 Pa
Production Year2023
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size64x126x42
Spare Partsn/a
Type CommentsGATE112023
Type NameDN32 1¼" FBSP Bronze Lockshield Gate Valve
URLwww.rwc.co.uk
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partstechnical@rwc.co.uk

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
