Fig M650 - Check Valves - Ductile Iron - Swing Pattern

Download Add to collection

Description

Features & Benefits:

Suitable for velocities of up to 3 meters/second.
Ideal for water or other liquids.
Bolted cover and is also suitable for mounting in horizontal and vertical pipelines.

Object Data

1 Revision

Last Updated

15/03/2014

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

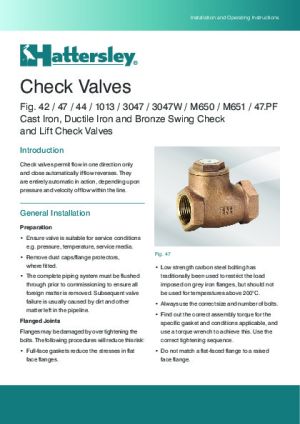

Installation Guide

Product Data Sheet

Object metadata

_authorMark Thompson
_BIMspec_GUID0
_Body Centre60 mm
_Body Radius170 mm
_current revision1
_distributed bywww.bimstore.co.uk
_Flange Hole Centres190 mm
_Flange Hole Diameter23 mm
_Flange Raised Face Diameter156 mm
_Flange Raised Face Height3 mm
_Top of Stem111.1 mm
A mm292 mm
Assembly CodeD30
B mm235 mm
Barcode0
BodyDuctile Iron BS EN 1563 EN JS 1050
Body Edge Radius78.33333333 mm
Body Globe Offset19.46666667 mm
Body Seat RingBronze BS EN 1982 CC491K
Body Square Depth86.16666667 mm
Body Square Height56 mm
Body Vertical Radius91.694 mm
Body Width254 mm
C mm19 mm
Connection Size100 mm
Connection Size Radius50 mm
CoverDuctile Iron BS EN 1563 EN JS 1050
Cover Disc Size241.3 mm
Cover Disk Depth24 mm
D mm225 mm
DescriptionCheck valves permit flow in one direction only and close automatically if flow reverses. They are entirely automatic in action, depending upon pressure and velocity of flow within the line to perform their functions of opening and closing. Swing pattern metal faced disc. Suitable for velocities of up to 3 metres/second. Ideal for water or other liquids. Bolted cover. Suitable for mounting in horizontal and vertical pipelines.
DiscDuctile Iron BS EN 1563 EN JS 1050
Disc RingBronze BS EN 1982 CC491K
DocumentationLink URLwww.hattersley.com/documents/Fig_M650_Check_Valve_Hattersley_0813_v3.pdf
E mm168 mm
End ConnectionFlanged BS EN 1092-2 PN25
Expected Life0
Flange_12No
Flange_16No
Flange_4No
Flange_8Yes
GasketAsbestos Free
HingeDuctile Iron BS EN 1563 EN JS 1050
Hinge PinStainless Steel 970 420537
Hinge Pin Centre Offset36.04938272 mm
Hinge Pin Length183.388 mm
Hinge Pin Radius22.9235 mm
K Coefficient599
KeynoteS
Loss Method2
ManufacturerHattersley Ltd
ModelM650
OperatorSwing Pattern Check Valve
Pressure (BAR)www.hattersley.com/documents/Fig_M650_Check_Valve_Hattersley_0813_v3.pdf
Pressure Rating (Cat)PN25
Product DescriptionDuctile Iron Swing Pattern Check Valve
Product Documentation Linkwww.hattersley.com/documents/Fig_M650_Check_Valve_Hattersley_0813_v3.pdf
Product Page URLwww.hattersley.com/productView.asp?prodID=39&catID=6
Specification NotesHorizontal swing pattern. Bolted cover. Flanged to BS EN 1092-2 PN25. Copper alloy trim.
Temperature deg C-10 to 120 deg C
Type Comments100mm
Uniclass 2WR-90-94-95
URLwww.hattersley.com/
Valve MaterialCast Iron - Blue Paint
Warranty Duration12 months
Warranty Duration Unit12 months
Weight (kg)40

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
