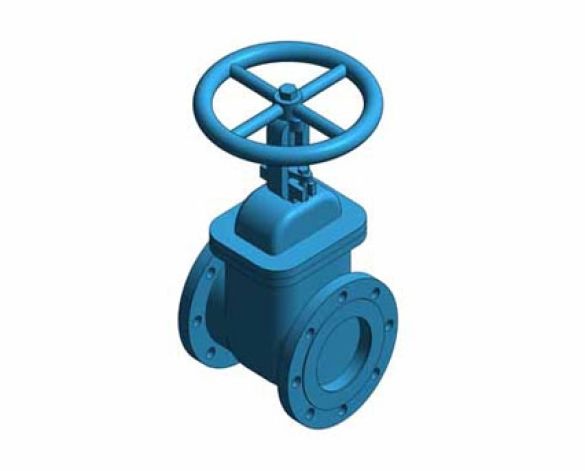

Fig M544 - Gate Valve - Cast Iron

Download Add to collection

Description

Features & Benefits:

Cast Iron with integral flanges.
Outside screw pattern with rising stem.
Ideal for use on more active media where fluid might have an adverse effect on thread.
Flanged ends require no pipe threading.

Object Data

1 Revision

Last Updated

15/03/2014

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

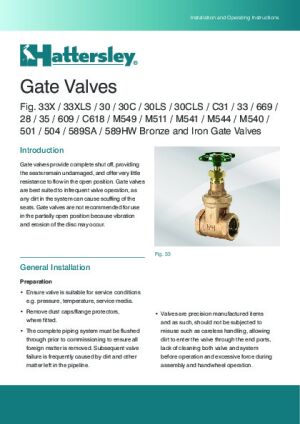

Installation Guide

Product Data Sheet

Object metadata

_authorMark Thompson
_BIMspec_GUID0
_Bonnet Curve Flat Length23 mm
_Bonnet Curve Radius12.5 mm
_Bonnet Curve Width90 mm
_Bonnet Gap0 mm
_current revision1
_distributed bywww.bimstore.co.uk
_End Flange Hole Centres180 mm
_End Flange Hole Diameter19 mm
_End Flange Raised Diameter156 mm
_End Flange Raised Height3 mm
_Sweep Curve Radius20 mm
_Sweep Height25 mm
12_HolesNo
4_HolesNo
8_HolesYes
A mm229 mm
Assembly CodeD30
B mm24 mm
Barcode0
BodyCast Iron BS EN 1561 EN-JL1040
Body Radius75.9 mm
Body Seat RingBronze BS EN 1982 CC491K
Body Width181 mm
BonnetCast Iron BS EN 1561 EN-JL1040
Bonnet Base Height20.3625 mm
Bonnet Disk Depth13.575 mm
Bonnet Disk Length162.9 mm
Bonnet Disk Width200.376 mm
Bonnet GasketAsbestos Free
C mm220 mm
Connection Size100 mm
Connection Size Radius50 mm
D mm520 mm
DescriptionCrane cast iron gate valves offer the ultimate in dependable service wherever minimum pressure drop is important. Complete with Bronze trim. Each valve is hydrostatically tested to BS5150. Manufactured in accordance with BS5150
DocumentationLink URLwww.hattersley.com/documents/Fig_M544_544E_Gate_Valve_Hattersley_0813_v3.pdf
E mm305 mm
End ConnectionBS EN 1092-2 PN16
Expected Life0
GlandCast Iron BS EN 1561 EN-JLI030
Gland Height136.2916667 mm
Gland Length90 mm
Gland Offset48 mm
Gland PackingExpanded Graphite
Handle MaterialCast Iron - Blue Paint
HandwheelCast Iron BS EN 1561 EN-JL-1040
Handwheel Depth30.5 mm
Handwheel Nut Diameter25.41666667 mm
Handwheel Nut Height12.70833333 mm
Handwheel Radius152.5 mm
K Coefficient923
KeynoteS
Loss Method2
ManufacturerHattersley Ltd
ModelM544
OperatorHandwheel
Pressure (BAR)www.hattersley.com/documents/Fig_M544_544E_Gate_Valve_Hattersley_0813_v3.pdf
Pressure Rating (Cat)PN16
Product DescriptionCast Iron Gate Valve
Product Documentation Linkwww.hattersley.com/documents/Fig_M544_544E_Gate_Valve_Hattersley_0813_v3.pdf
Product Page URLwww.hattersley.com/productView.asp?prodID=14&catID=2
Specification NotesCast Iron with integral flanges. Outside screw pattern with rising stem. Ideal for use on more active media where fluid might have an adverse effect on thread. Flanges ends require no pipe threading. BS 5150 and BS EN 1171. Face to face dimensions at BS EN 558-1 basic series 3. Bronze trim
StemSteel BS EN EN10087
Stem Cone BushBrass BS EN 12164 CW614N
Stem Corner Radius41.745 mm
Stem Height136.2916667 mm
Stem Loop Depth166.98 mm
Stem Loop Width134.7058824 mm
Stem Lower Circle Radius83.49 mm
Stem Radius11.2962963 mm
Temperature deg C-10 to 230
Top of Stem132 mm
Type Comments100mm
Uniclass 2WR-90-94-95
URLwww.hattersley.com/
Valve MaterialCast Iron - Blue Paint
Warranty Duration12 months
Warranty Duration Unit12 months
WedgeCast Iron 1561 EN-JL1040
Wedge Facing RingBronze BS EN 1982 CC491K
Wedge NutBronze BS EN 1982 CC491K
Weight (kg)40
YokeBronze BS EN 1982 CC491K
Yoke JointAsbestos Free
Yoke SleeveCast Iron BS EN 1561 EN-JLI030

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
