Fig M540 - Gate Valve - Cast Iron

Download Add to collection

Description

Features & Benefits:

Ductile Iron with integral flanges.
Inside screw pattern with non-rising stem.
Ideal for use for non-corrosive and reasonably clean services.
Seat rings are threaded and securely fixed into the body.

Object Data

1 Revision

Last Updated

15/03/2014

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

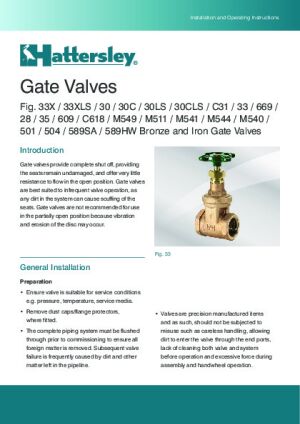

Installation Guide

Product Data Sheet

Object metadata

_authorMark Thompson
_BIMspec_GUID0
_Bonnet Curve Flat Length25 mm
_Bonnet Curve Width120 mm
_current revision1
_distributed bywww.bimstore.co.uk
_End Flange Hole Centres190 mm
_End Flange Hole Diameter23 mm
_End Flange Raised Diameter156 mm
_End Flange Raised Height3 mm
4_HolesNo
8_HolesYes
A mm229 mm
Assembly CodeD30
B mm19 mm
Barcode0
BodyDuctile Iron BS EN 1561 EN-JS1050
Body Radius82.25 mm
Body Seat RingBronze BS EN 1982 CC491K
Body Width191 mm
BonnetDuctile Iron BS EN 1561 EN-JS1050
Bonnet Base Height21.4875 mm
Bonnet Disk Depth14.325 mm
Bonnet Disk Length171.9 mm
Bonnet Disk Width217.14 mm
Bonnet Gap0 mm
Bonnet GasketAsbestos Free
C mm235 mm
Connection Size100 mm
Connection Size Radius50 mm
D mm420 mm
DescriptionCrane cast iron gate valves offer the ultimate in dependable service wherever minimum pressure drop is important. Complete with Bronze trim. Each valve is hydrostatically tested to BS5150. Manufactured in accordance with BS5150
DocumentationLink URLwww.hattersley.com/documents/Fig_M540_Gate_Valve_Hattersley_0813_v3.pdf
E mm250 mm
End ConnectionBS EN 1092-2 PN25
Expected Life0
GlandHT Brass BS EN 1561 EN JS-1040
Gland Connnector Length81.42857143 mm
Gland FlangeDuctile Iron BS EN 1561 EN-JS1050
Gland Length114 mm
Gland Offset85 mm
Gland PackingExpanded Graphite
Gland Width32.57142857 mm
Handle MaterialCast Iron - Blue Paint
HandwheelCast Iron BS EN 1561 EN-JL-1030
Handwheel Nut Diameter20.83333333 mm
Handwheel Nut Height10.41666667 mm
Handwheel Radius125 mm
K Coefficient923
KeynoteS
Loss Method2
ManufacturerHattersley Ltd
ModelM540
OperatorHandwheel
Pressure (BAR)www.hattersley.com/documents/Fig_M540_Gate_Valve_Hattersley_0813_v3.pdf
Pressure Rating (Cat)PN25
Product DescriptionDuctile Iron Gate Valve
Product Documentation Linkwww.hattersley.com/documents/Fig_M540_Gate_Valve_Hattersley_0813_v3.pdf
Product Page URLwww.hattersley.com/productView.asp?prodID=15&catID=2
Specification NotesDuctile Iron with integral flanges. Inside screw pattern with non-rising stem. Ideal for use for non-corrosive and reasonably clean services. Seat rings are threaded and securely fixed into the body. Bronze trim.
StemAl Bronze 12163 CW301G
Stem Corner Radius36.19 mm
Stem Height218.5833333 mm
Stem Loop Depth180.95 mm
Stem Loop Width134.7058824 mm
Stem Lower Circle Radius90.475 mm
Stem Radius10.86956522 mm
Stuffing BoxDuctile Iron BS EN 1561 EN-JS1050
Stuffing Box GasketAsbestos Free
Temperature deg C-10 to 2200
Top of Stem141 mm
Type Comments100mm
Uniclass 2WR-90-94-95
URLwww.hattersley.com/
Valve MaterialCast Iron - Blue Paint
Warranty Duration12 months
Warranty Duration Unit12 months
WedgeDuctile Iron BS EN 1561 EN-JS1050
Wedge Facing RingBronze BS EN 1982 CC491K
Wedge NutAl Bronze 12163 CW301G
Weight (kg)35

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
