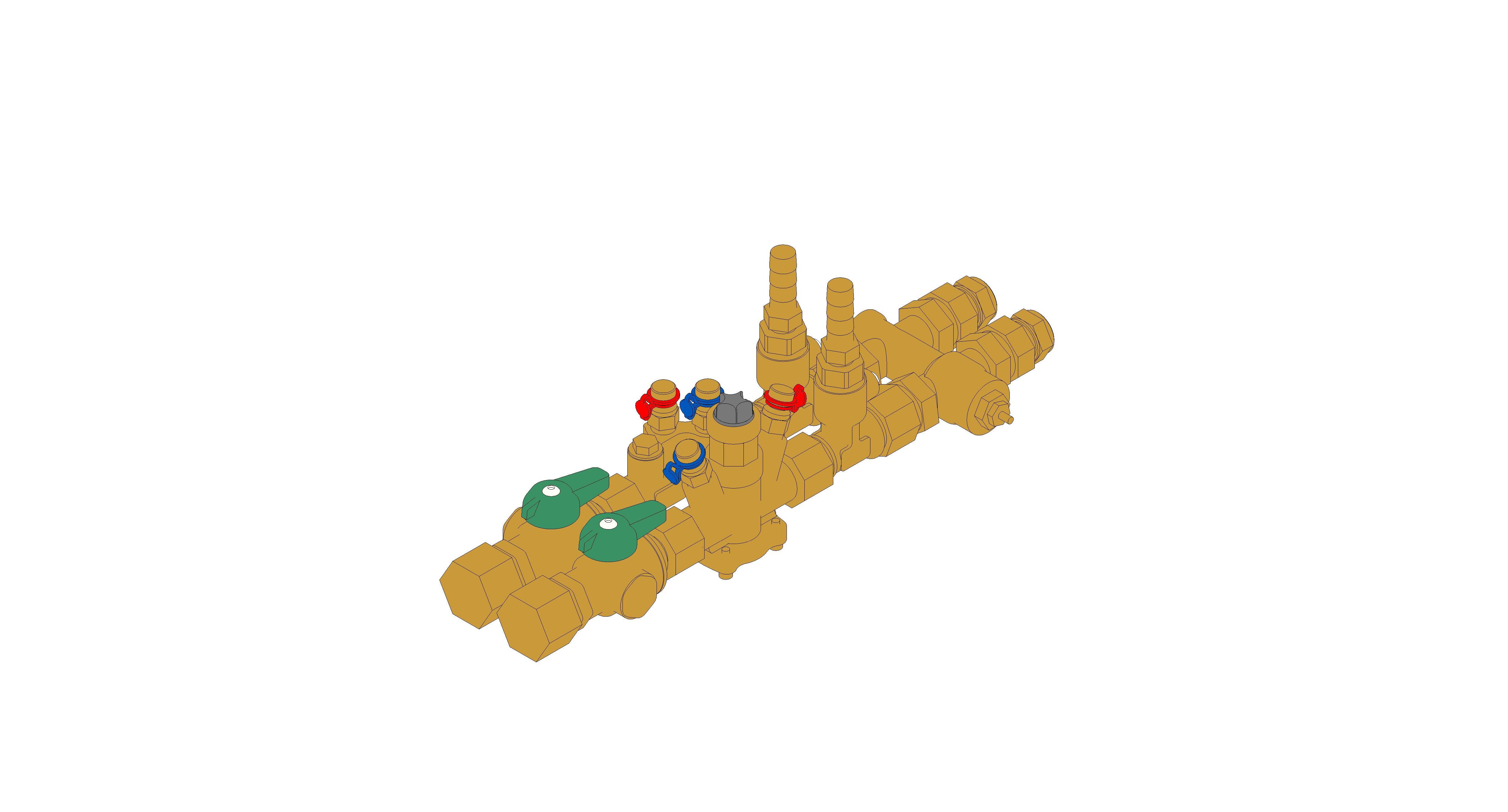

Hook-Up Elite Prime with PICV, BSRIA Flushing Drain & 4-Port

Fig. HD40BSS4B



Features & Benefits

  • Compact design, with flow and return legs at equal lengths, for simple direct mounting onto terminal unit
  • Fitted with Elite Prime with a wide range of settable flows to suit all applications
  • Includes Venturi metering station for improved accuracy and pressure drop recovery
  • All valves are subject to both a pressure test, in accordance with BS EN 12266-1, as well as a flow limitation test, in accordance to BSRIA BTS1. This provides reassurance of performance and accuracy within each valve
  • Bypass unit with integrated 3-way isolation valves
  • Flushing valves on flow and return - in accordance with BSRIA BG29
  • Integrated dial allowing for calibrated setting of the PICV with integrated test points allowing for ΔP verification
  • 4-Port valve included to provide a constant flow rate irrespective of load demand. Suitable for minimum flow and end-of-line applications

Size

DN15/15

Pressure Rating

PN16

Temperature Rating

0 to 90°C

Centre Size

40mm

End Connections

H-Body - BSP Taper
Terminal end - Compression/Solder
