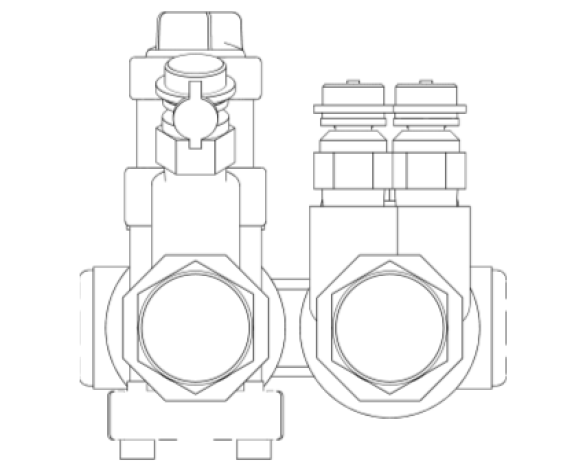

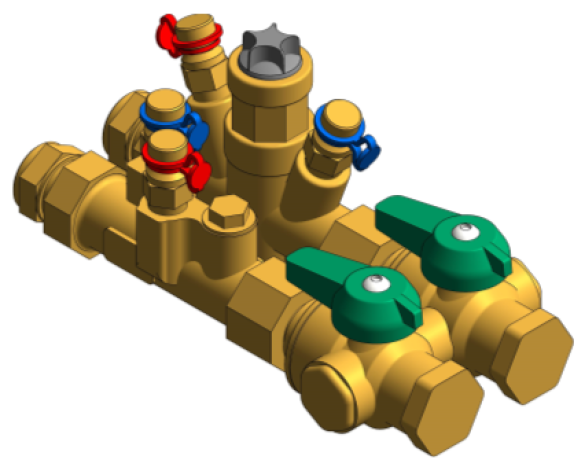

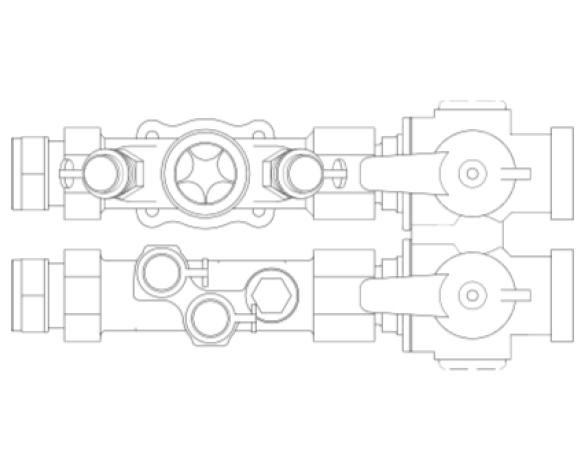

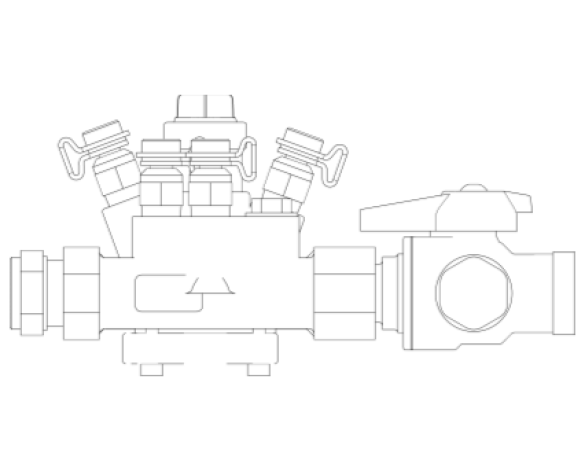

Fig HD40BSR1B - Hook-up Elite Prime

Download Add to collection

Description

FEATURES & BENEFITS:

Compact design, with flow and return legs at equal lengths, for simple direct mounting onto terminal unit
Fitted with Elite Prime with a wide range of settable flows to suit all applications
Includes Venturi metering station for improved accuracy and pressure drop recovery
All valves are subject to both a pressure test, in accordance with BS EN 12266-1, as well as a flow limitation test, in accordance to BSRIA BTS1.
This provides reassurance of performance and accuracy within each valve
Bypass unit with integrated 3-way isolation valves
Integrated dial allowing for calibrated setting of the PICV with integrated test points allowing for ΔP verification

Object Data

1 Revision

Last Updated

05/09/2018

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

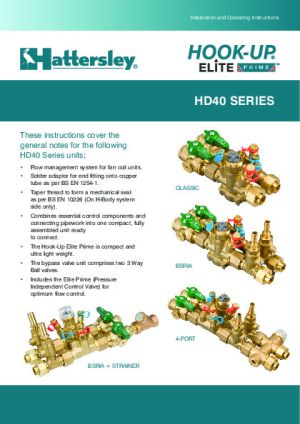

Installation Guide

Product Data Sheet

Object metadata

_AuthorIan Holmes
_Authorized ByRyan Lashley
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Annual MaintenanceStrainer & Drain cleaned
Assembly CodeD2090800
Asset TypeFixed
BIM Object NameHattersley_PipeAccessories_ElitePrimeHookUp _FigHD40BSR1B
CE Approvaln/a
Classification NameUniclass2015
Classification ValuePr_65_54_40_16
Code Performancen/a
ColorBronze
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2018-07-27T09:00:00
DescriptionCompact design, with flow and return legs at equal lengths, for simple direct mounting onto terminal unit. Fitted with Elite Prime with a wide range of settable flows to suit all applications. Includes Venturi metering station for improved accuracy and pressure drop recovery. All valves are subject to both a pressure test, in accordance with BS EN 12266-1, as well as a flow limitation test, in accordance to BSRIA BTS1. This provides reassurance of performance and accuracy within each valve. Bypass unit with integrated 3-way isolation valves. Integrated dial allowing for calibrated setting of the PICV with integrated test points allowing for ∆P verification.
Diameter15 mm
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturespecifi.bimstore.co.uk/document/share/2693
Documentation Maintenancen/a
Documentation Technicalspecifi.bimstore.co.uk/document/share/2693
Duration UnitYears
Expected Life0
FeaturesCompact design, with flow and return legs at equal lengths, for simple direct mounting onto terminal unit. Fitted with Elite Prime with a wide range of settable flows to suit all applications. Includes Venturi metering station for improved accuracy and pressure drop recovery. All valves are subject to both a pressure test, in accordance with BS EN 12266-1, as well as a flow limitation test, in accordance to BSRIA BTS1. This provides reassurance of performance and accuracy within each valve. Bypass unit with integrated 3-way isolation valves. Integrated dial allowing for calibrated setting of the PICV with integrated test points allowing for ∆P verification.
FinishBronze to BSEN 1982 CC49IK
Graden/a
Gross Weight2kg
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.MIXING
KeynoteS12
ManufacturerHattersley
Manufacturer NameHattersley
MaterialBronze to BSEN 1982 CC49IK
ModelElite Prime Hook Up
Model NumberFig HD40BSR1B
Model ReferenceElite Prime Hook Up
NBS DescriptionControl valves
NBS Object NameHattersley - Control valves
NBS Office Master Tagn/a
NBS Reference90-15-40/329
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Operation And Maintenance Manualn/a
Production Year2018
Product Literaturen/a
Product Model NumberFig HD40BSR1B
Product RangeElite Prime Hook Up
Referenced StandardBS EN 12266-1 & BSRIA BTS1
Reference StandardBS EN 12266-1 & BSRIA BTS1
Replacement Costn/a
Shapen/a
Shipping Weight2kg
SizeDN15 x DN15
Spare Partsn/a
Type CommentsFig HD40BSR1B
Type NameFig HD40BSR1B
URLwww.hattersley.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsenquiries@hattersley.com
