Fig C618 - Export Gate Valve

Download Add to collection

Description

Features & Benefits:

Robust and high quality bronze body with integral seating surfaces.
Inside screw pattern with rising stem
Suitable for high pressures up to 20 bar

Object Data

1 Revision

Last Updated

15/03/2014

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

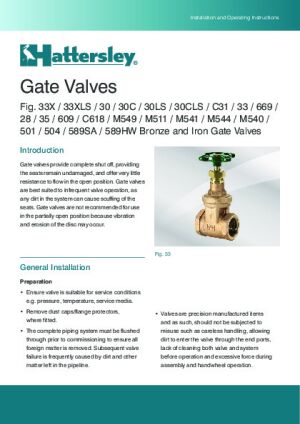

Installation Guide

Product Data Sheet

Object metadata

_authorMark Thompson
_BIMspec_GUID0
_Bonnet Height30.2 mm
_current revision1
_distributed bywww.bimstore.co.uk
_End Nut Diameter70.5 mm
_End Nut Thickness11.7 mm
_Packing Ring Height88 mm
_Top of Stem46.1 mm
A mm68 mm
Assembly CodeD30
B mm222 mm
Barcode0
BodyBronze BS EN 1982 CC491K
Body Centre Width39.22857143 mm
Body Radius28.2 mm
Body Width44.6 mm
BonnetBronze BS EN 1982 CC491K
Bonnet Radius33.57142857 mm
C mm90 mm
Centre Void Depth28.77142857 mm
Connection Size42 mm
Connection Size Radius21 mm
Default Elevation1219.2 mm
DescriptionHattersley gate valves offer the ultimate in dependable service wherever minimum pressure drop is important.They serve as efficient stop valves with fluid flow in either direction. The straight through design offers little resistance to flow and reduces pressure drop to a minimum. A gate-like disc - actuated by a stem screw and handwheel - moves up and down at right angles to the path of flow, and seats against two seat faces to shut off the flow. Gate valves are not recommended for throttling since the control characteristic is not appropriate and subsequent damage due to erosion may prevent the valve providing an effective shut off.
DocumentationLink URLwww.hattersley.com/documents/Fig_C618_Gate_Valve_Hattersley_0813_v3.pdf
Expected Life0
GlandCopper Alloy BS EN 12164 CW603N
Gland NutCopper Alloy BS EN 12164 CW603N
Gland PackingPTFE
Globe Radius33.57142857 mm
HandwheelAluminium
Handwheel Depth30 mm
Handwheel MaterialPVC, Green
ID PlateAluminium
K Coefficient129
KeynoteS
Loss Method2
ManufacturerHattersley
ModelC618
OperatorHandwheel
Packing Nut Height27.7 mm
Packing Nut Hex Radius16.8025 mm
Packing Ring Hex Height11.48888889 mm
Packing Ring Hex Radius25.85 mm
Pressure (BAR)www.hattersley.com/documents/Fig_C618_Gate_Valve_Hattersley_0813_v3.pdf
Pressure Rating (Cat)PN20
Product DescriptionBronze Gate Valve
Product Documentation Linkwww.hattersley.com/documents/Fig_C618_Gate_Valve_Hattersley_0813_v3.pdf
Product Page URLwww.hattersley.com/productView.asp?prodID=161&catID=2
Specification NotesRobust and high quality bronze body with integral seating surfaces. Inside screw pattern with rising stem. Suitable for high pressures up to 20 bar. Threaded bonnet. One piece wedge. Bronze trim. Complies with BS EN 12288:2010. Complies with MSS SP-80 Class 150.
StemCopper Alloy BS EN 12164 CW714N
Stem Diameter7.001041667 mm
Temperature °C-10 to 180°C
Type Comments1 1/2"
UK End ConnectionTaper threaded to BS EN 10226-2 (ISO 7-1) formerly BS 21
Uniclass 2WR-90-94-95
URLwww.hattersley.com/
US End ConnectionNPT Thread
Valve MaterialBrass, Soft Yellow
Warranty Duration12 months
Warranty Duration Unit12 months
Weight (kg)1.41
