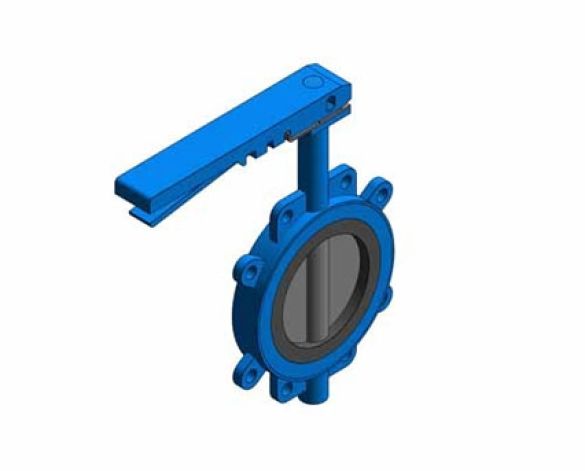

Fig 980ANSI - Export Butterfly Valve

Download Add to collection

Description

980ANSI - Ductile Iron Fully Lugged Butterfly Valve Class 150. Generally Conforms to BS EN 593.

This download include all size variations of the 980ANSI Butterfly Valve by Hattersley.

Object Data

1 Revision

Last Updated

15/03/2014

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_authorKris Atkinson
_BIMspec_GUID0
_current revision1
_distributed bywww.bimstore.co.uk
260mm LeverYes
356mm LeverNo
A mm232 mm
Assembly CodeD30
B mm124 mm
Barcode0
BodyDuctile Iron ASTM A536 65-45-12 (Epoxy Paint)
BSYes
BushingEDPM
C mm54 mm
Casing MaterialIron, Ductile Epoxy Paint (Blue)
Casing Thickness32.75824307 mm
Connection Size100 mm
D mm32 mm
DescriptionGenerally conforms to BS EN 593, Ductile Iron body epoxy coated, Fully lugged, Aluminium bronze disk, EPDM liner phenolic backed, Trigger lever, Valves DN200 and larger supplied as standard with fully enclosed gear operator, Suitable for fitting between flanges to ANSI B16.1 Class 125 and 150, Valves may be used for flow regulation
DiscAluminium Bronze B150 C63000
Disc Dia Calc50 mm
Disc MaterialAluminum
Disc Shaft Calc48 mm
Disc Shaft Cover Calc13.87912154 mm
Disc Thickness9.879121535 mm
Disc Vertical Calc83.5 mm
DocumentationLink URLwww.hattersley.com/productView.asp?prodID=166&catID=12
E mm171 mm
Expected Life0
F mm260 mm
G mm90 mm
Inner Casing Dia Calc82.5 mm
K Coefficient517
KeynoteS
LinerEPDM
Loss Method2
Lugg CL Calc98 mm
Lugg CL Dimension12.5 mm
Lugg Hole Dia6.6 mm
Lugg Outer Dia Calc13.2 mm
ManufacturerHattersley
Middle Casing Dia Calc66.25 mm
Model980ANSI
O_RingBuna-N
OperatorTrigger Lever
Outer Casing Dia Calc85.5 mm
Pressure (BAR)www.hattersley.com/productView.asp?prodID=166&catID=12
Pressure Rating (Cat)PN16
Product DescriptionDuctile Iron Fully Lugged Butterfly Valve Class 150 - Export Only
Product Documentation Linkwww.hattersley.com/productView.asp?prodID=166&catID=12
Product Page URLwww.hattersley.com/productView.asp?prodID=166&catID=12
ShaftStainless Steel A276 410
Shaft Dia9 mm
Spare PartsLever (100M0C950D490) Hwheel (302B20015D008)
SparesLever (100M0C950D490) Hwheel (302B20015D008)
Specification NotesGenerally conforms to BS EN 593, Ductile Iron body epoxy coated, Fully lugged, Aluminium bronze disk, EPDM liner phenolic backed, Trigger lever, Valves DN200 and larger supplied as standard with fully enclosed gear operator, Suitable for fitting between flanges to ANSI B16.1 Class 125 and 150, Valves may be used for flow regulation
Taper PinStainless Steel A276 316
Temperature °C-10 to 120°C
Turn Handle Calc260 mm
Type Comments100mm
UK End ConnectionFully-Lugged
Uniclass 2WR-90-94-95
URLwww.hattersley.com
Warranty Duration12 months
Warranty Duration Unit12 months
Weight (kg)13

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
