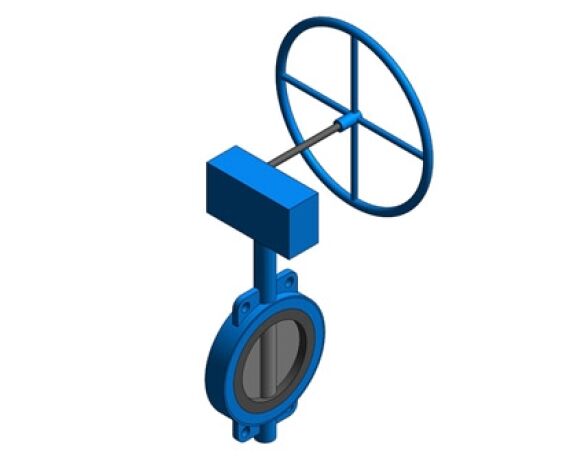

Fig 953G - SBV - Cast Iron with Double Regulating Feature

Download Add to collection

Description

Features & Benefits:

Robust iron body materials for long service life
Precise flow regulation and accurate measurement
Fully-Lugged - easy to install and operate
Positive flow control at all handwheel settings

Object Data

1 Revision

Last Updated

16/04/2014

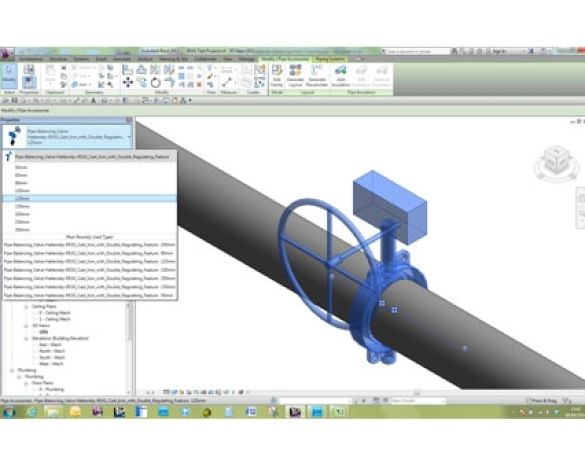

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_authorKris Atkinson
_BIMspec_GUID0
_current revision1
_distributed bywww.bimstore.co.uk
A mm200 mm
ApprovalsWRAS approved product
Assembly CodeD30
B mm124 mm
Barcode0
BearingsPTFE Coated
BodyDuctile Iron
BSYes
C mm54 mm
Casing MaterialIron, Ductile Epoxy Paint (Blue)
Casing Thickness32.75824307 mm
Connection Size100 mm
D mm42 mm
Description953 - 953G - Robust iron body materials for long service life. Precise flow regulation. Flanged with handwheel- easy to install and operate. Positive flow control at all handwheel settings.
DiscAluminium Bronze 1982 CC333G
Disc 2Stainless Steel 10270 X10CrNi18-8
Disc Dia Calc50 mm
Disc MaterialAluminum
Disc Shaft Calc48 mm
Disc Shaft Cover Calc13.87912154 mm
Disc Thickness9.879121535 mm
Disc Vertical Calc83.5 mm
DocumentationLink URLwww.hattersley.com/documents/Fig_953_953G_SBV_Hattersley_0813_v3.pdf
E mm171 mm
Expected Life0
F mm150 mm
G mm90 mm
Gearbox Spindle Dia5 mm
Gearbox Wheel Dia13 mm
H mm60 mm
Inner Casing Dia Calc82.5 mm
J mm75 mm
K Coefficient517
K mm240 mm
KeynoteS
LinerEPDM
Loss Method2
Lugg CL Calc98 mm
Lugg CL Dimension12.5 mm
Lugg Hole Dia6.6 mm
Lugg Outer Dia Calc13.2 mm
ManufacturerHattersley
Middle Casing Dia Calc66.25 mm
Model953G
Model Number953G
NoteButterfly valves should not be less than 30
OperatorGearbox
Outer Casing Dia Calc85.5 mm
Pressure (BAR)www.hattersley.com/documents/Fig_953_953G_SBV_Hattersley_0813_v3.pdf
Pressure Rating (Cat)PN16
Product DescriptionCast Iron with Double Regulating Feature - PN16 - Gearbox Operated
Product Documentation Linkwww.hattersley.com/documents/Fig_953_953G_SBV_Hattersley_0813_v3.pdf
Product Page URLwww.hattersley.com/productView.asp?prodID=69&catID=9
Service RatingSuitable for Chilled Water LTHW and MTHW
ShaftStainless Steel 10088-1 X17CrNi16-2
Shaft Dia9 mm
Specification NotesValves up to and including 200mm can be supplied lever operated or fully enclosed gear operated. All operators fitted with double regulating feature. Flow charts available.
Type Comments100mm
Type Name100mm
UK End ConnectionSemi-Lugged
Uniclass 2WR-90-94-95
URLwww.hattersley.com/
Warranty Duration12 months
Warranty Duration Unit12 months
Weight (kg)18.2

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
