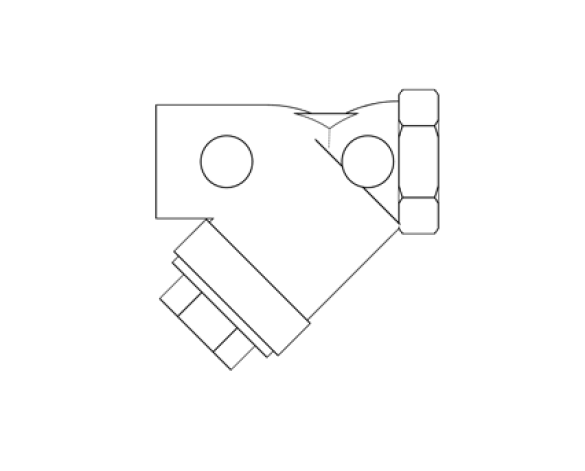

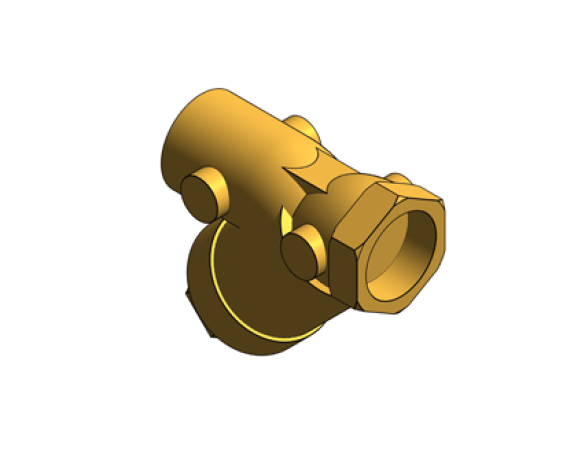

Fig. 907 - Strainer

Object metadata

• _Angled Piece Length92.3 mm
• _Angled Piece Origin32.5 mm
• _Angled Piece Radius33.8 mm
• _Angled Revolve Axis28.6 mm
• _Angled Revolve Fillet5.746 mm
• _Angled Revolve Length220.956 mm
• _Angled Revolve Length357.226 mm
• _Angled Revolve Radius27.6 mm
• _Angled Revolve Step12.028 mm
• _authorAndy Smart
• _BIMspec_GUID0
• _Cap Radius30.758 mm
• _Connection Size Radius Calc21 mm
• _current revision1
• _distributed bywww.bimstore.co.uk
• _Globe Radius11.895 mm
• _Globe Thickness67.6 mm
• _Hex Diameter57.2 mm
• _Outlet Radius26 mm
• A mm130 mm
• ApprovalsWRAS Approved Product
• Assembly CodeD30
• B mm116 mm
• Barcode0
• BodyBronze
• C mm165 mm
• CapBronze
• Connection Size42 mm

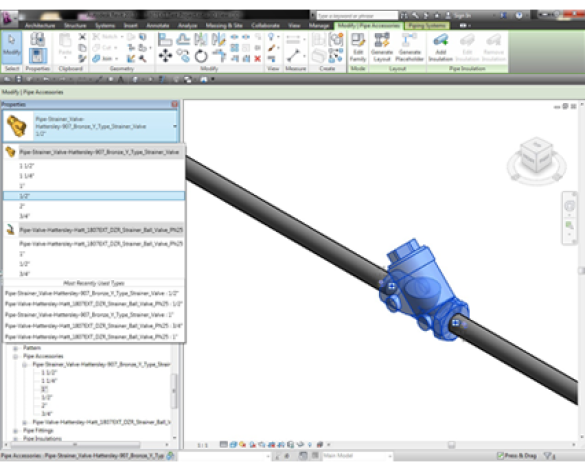

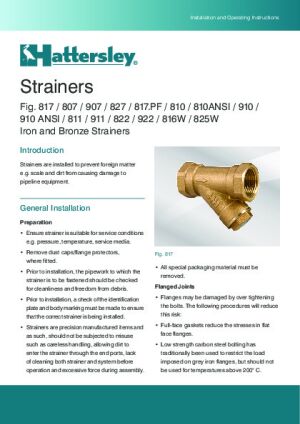

• DocumentationLink URLwww.hattersley.com/documents/Fig_807_907_Strainer_Hattersley_0913_v4.pdf
• Expected Life0
• GasketAsbestos Free (non-stick)
• Hex Thickness18.2 mm
• ID Plate MaterialAluminum (Yellow)
• K Coefficient3.3
• KeynoteS
• Loss Method2
• ManufacturerHattersley
• Model907
• Pressure (BAR)www.hattersley.com/documents/Fig_807_907_Strainer_Hattersley_0913_v4.pdf
• Pressure Rating (Cat)PN32
• Product DescriptionRobust and high quality bronze body. Streamlined flow contours minimize pressure drop. Compact design with short face to face. Perforated stainless steel green.
• Product Documentation Linkwww.hattersley.com/documents/Fig_807_907_Strainer_Hattersley_0913_v4.pdf
• Product Page URLwww.hattersley.com/productView.asp?prodID=105&catID=14
• Ridge Thickness22.1 mm
• ScreenStainless Steel
• Spare PartsBasket (004B00807F113) Gasket (004B00807D390)
• SparesBasket (004B00807F113) Gasket (004B00807D390)
• Specification NotesStandard screen has 0.75mm diaeter holes, Screwed Cap, Ends threaded to BS EN 10266 (BS21 ISO R7), 907 supplied with two Figure 631 test points and plugs
• Temperature deg C-10 to 120

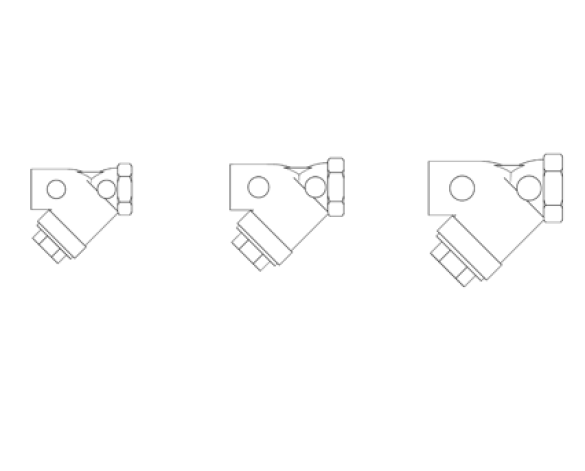

• Type Comments1 1/2"
• Type Name907 1 1/2 inch
• UK End ConnectionEnds threaded to BS EN 10266 (BS21 ISO R7)
• Uniclass 2WR-90-94-95
• URLwww.hattersley.com/
• Valve MaterialBrass, Soft Yellow
• Warranty Duration12 months
• Warranty Duration Unit12 months
• Weight (kg)1.8
