Fig 5973 - Cast Iron Metrex Commissioning Set

Download Add to collection

Description

Features & Benefits:

Robust iron body materials for long service life
Precise flow regulation and accurate measurement
Fully-Lugged - easy to install and operate
Positive flow control at all handwheel settings

Object Data

1 Revision

Last Updated

17/04/2014

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

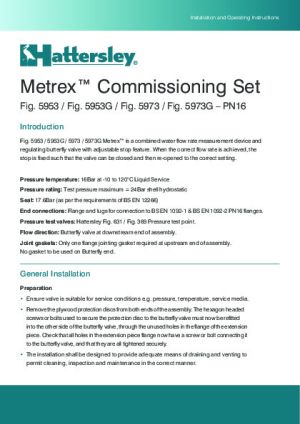

Installation Guide

Product Data Sheet

Object metadata

_authorConnor Laing
_BIMspec_GUID0
_current revision1
_distributed bywww.bimstore.co.uk
260mm LeverYes
356mm LeverNo
A mm200 mm
Assembly CodeD30
B mm124 mm
Barcode0
Blue TipIron, Ductile Epoxy Paint (Blue)(2)
C mm54 mm
Casing MaterialIron, Ductile Epoxy Paint (Blue)
Casing Thickness32.75824307 mm
Connection Size100 mm
D mm42 mm
DescriptionConforms to BS EN 593:2009, Fully-Lugged, Gearbox, Valves DN250 and larger supplied as standard with fully enclosed gear operator. Valves may be used for flow regulation. 970G are suitable for Group 1 and 2 gases and Group 1 and 2 liquids as defined by the Pressure Equipment Directive 97/23/EC
Disc Dia Calc50 mm
Disc MaterialAluminum
Disc Shaft Calc48 mm
Disc Shaft Cover Calc13.87912154 mm
Disc Thickness9.879121535 mm
Disc Vertical Calc83.5 mm
DocumentationLink URLwww.hattersley.com/documents/Fig_970_970G_Butterfly_Valve_Hattersley_0813_v3.pdf
E mm171 mm
Expected Life0
Extension StemBronze - BS EN 1982 CC491K
Extention Length192 mm
F mm150 mm
G mm90 mm
gap31 mm
Gearbox Spindle Dia5 mm
Gearbox Wheel Dia13 mm
H mm60 mm
Inner Casing Dia Calc82.5 mm
J mm75 mm
K Coefficient224.9
K mm240 mm
KeynoteS
Loss Method2
Lugg CL Calc98 mm
Lugg CL Dimension12.5 mm
Lugg Hole Dia6.6 mm
Lugg Outer Dia Calc13.2 mm
ManufacturerHattersley
Middle Casing Dia Calc66.25 mm
Model5973
Model Number5973
Nose Height37 mm
OperatorLever
Orifice InsertStainless Steel - BS EN 10088-1 XSCrNiMo
Outer Casing Dia Calc85.5 mm
Pressure (BAR)www.hattersley.com/documents/Fig_970_970G_Butterfly_Valve_Hattersley_0813_v3.pdf
Pressure Rating (Cat)PN16
Product DescriptionRobust iron body materials for long service life. Precise flow regulation and accurate measurement. Flanged with hand wheel- easy to install and operate.
Product Documentation Linkwww.hattersley.com/documents/Fig_970_970G_Butterfly_Valve_Hattersley_0813_v3.pdf
Product Page URLwww.hattersley.com/productView.asp?prodID=94&catID=12
rad 1110 mm
Red Nose Height15 mm
Red TipIron, Ductile Epoxy Paint (Blue)(1)
Shaft Dia9 mm
Specification NotesConforms to BS EN 593:2009, Fully-Lugged, Gearbox, Valves DN250 and larger supplied as standard with fully enclosed gear operator. Valves may be used for flow regulation. 970G are suitable for Group 1 and 2 gases and Group 1 and 2 liquids as defined by the Pressure Equipment Directive 97/23/EC
Temperature °C-10 to 130°C
Tip StemIron, Ductile Epoxy Paint
total size208.4 mm
Type Comments100mm
Type Name100mm
UK End ConnectionFully-Lugged
Uniclass 2WR-90-94-95
URLwww.hattersley.com/
Valve BodiesCast Iron - BS EN 1561 EN-JLI040
Warranty Duration12 months
Warranty Duration Unit12 months
Weight (kg)24.1

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
