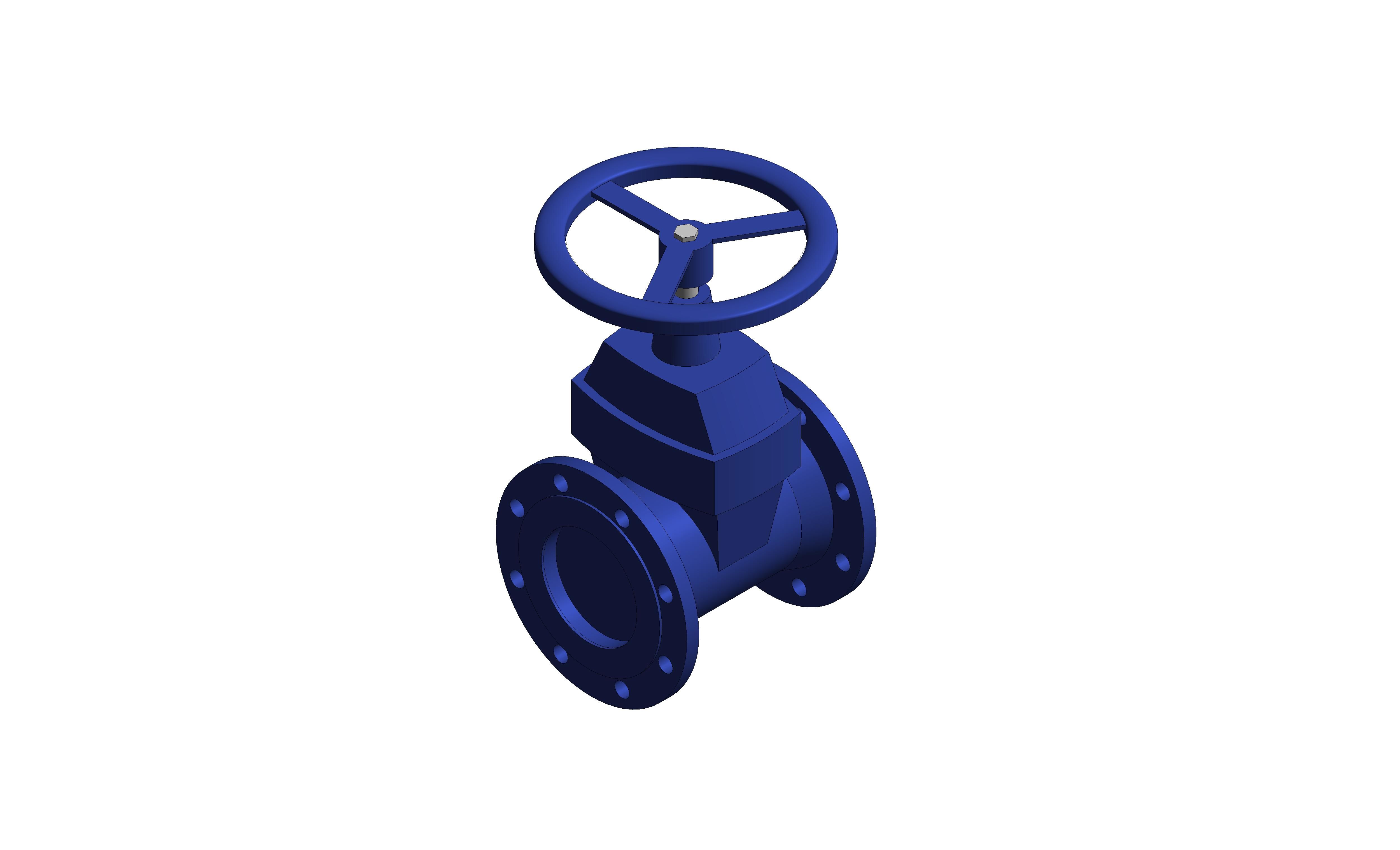

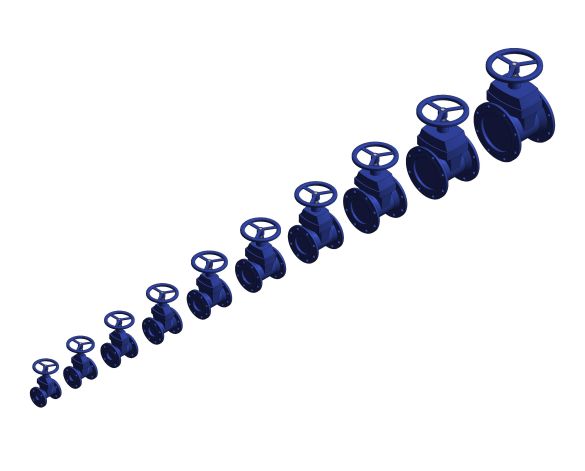

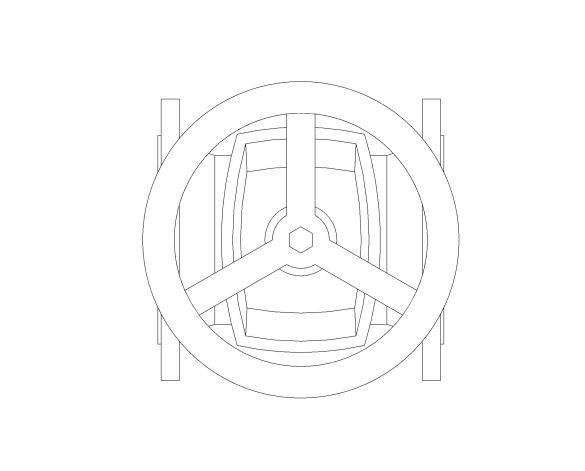

Fig. 589 SA - Fig. 589 HW - Resilient Seated Gate Valve

Download Add to collection

Description

Resilient Seated Gate Valve

Object Data

1 Revision

Last Updated

20/04/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/fig-589sa-fig-589-hw-resilient-seated-gate-valve/document/object-user-guide
a61.50 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b72.00 mm
BIM Object NameHattersley_ResilientSeatedGateValve_Fig589SA-Fig589HW
BodyDuctile iron BS EN1563 EN-GJS-500-7
BoltsStainless steel A2 (304)
BonnetDuctile iron BS EN1563 EN-GJS-500-7
Bonnet GasketEPDM BS EN 681-1
c68.80 mm
C19.00 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_12
Code Performancen/a
Colorn/a
Connection Size100.00 mm
Connection Size Radius50.00 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2023-03-16 T:09:00:00
d90.41 mm
D220.00 mm
DescriptionResilient seated gate valve
Documentation Certificateswww.bimstore.co/products/fig-589sa-fig-589-hw-resilient-seated-gate-valve/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/fig-589sa-fig-589-hw-resilient-seated-gate-valve/document/installation-guide
Documentation Literaturewww.bimstore.co/products/fig-589sa-fig-589-hw-resilient-seated-gate-valve/document/product-literature
Documentation Maintenancewww.bimstore.co/products/fig-589sa-fig-589-hw-resilient-seated-gate-valve/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/fig-589sa-fig-589-hw-resilient-seated-gate-valve/document/technical-data-sheet
Duration UnitYear
Dust RingEPDM
e60.27 mm
Expected Life0
f70.73 mm
Featuresn/a
Finishn/a
Flange Diameter220.00 mm
Flange Hole Offset90.00 mm
Flange Hole Radius9.50 mm
Flange Thickness19.00 mm
g41.28 mm
Graden/a
Guide ShoesPA
h27.52 mm
HandwheelDuctile iron DIN 1693
Handwheel BoltStainless steel 304 A2 (304)
Handwheel Diameter254.00 mm
i57.50 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
Inner Height43.00 mm
j17.00 mm
k40.80 mm
K180.00 mm
K Coefficient0
KeynoteS
l57.00 mm
L229.00 mm
Loss MethodK Coefficient
m20.40 mm
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
ModelFig. 589 SA / Fig. 589 HW
Model NumberFig. 589 SA / Fig. 589 HW
Model ReferenceResilient seated gate valve
n100.00 mm
NBS DescriptionCast iron gate valves
NBS Noten/a
NBS Object NameHattersley - Cast iron gate valves
NBS Office Master Tagn/a
NBS Reference90-10-90/336
Nominal Depth0.00 mm
Nominal Height0.00 mm
Nominal Length0.00 mm
o150.00 mm
O-RingEPDM BS EN 681-1
p200.00 mm
Production Year2023
q256.00 mm
r319.00 mm
Raised Face Diameter158.00 mm
Raised Face Height3.00 mm
Referenced Standardn/a
Replacement Costn/a
s210.60 mm
Shapen/a
Sizen/a
Spare Partsn/a
StemAISI 420
Stem NutBrass BS EN 12164 CW611N
t270.60 mm
Thrust NutBrass BS EN 12164 CW611N
Thrust WasherBrass BS EN 12164 CW611N
Type CommentsResilient seated gate valve
Type NameResilient seated gate valve
u132.40 mm
U-RingEPDM BS EN 681-1
URLwww.hattersley.com/
v217.40 mm
w32.50 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@hattersley.com
Warranty Guarantor Partsenquiries@hattersley.com
WedgeDuctile iron + EPDM BS EN1563 EN-GJS-500-7, BS EN 681-1

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
