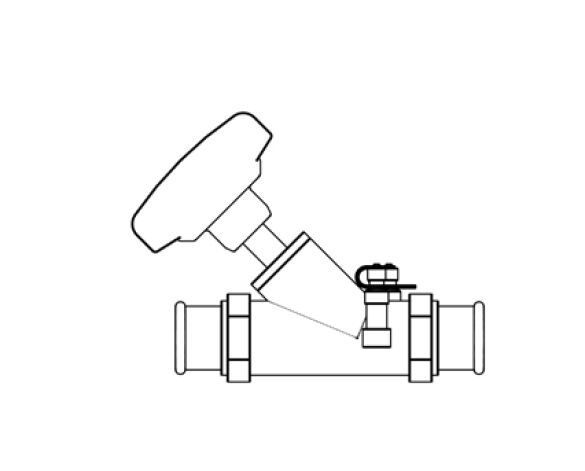

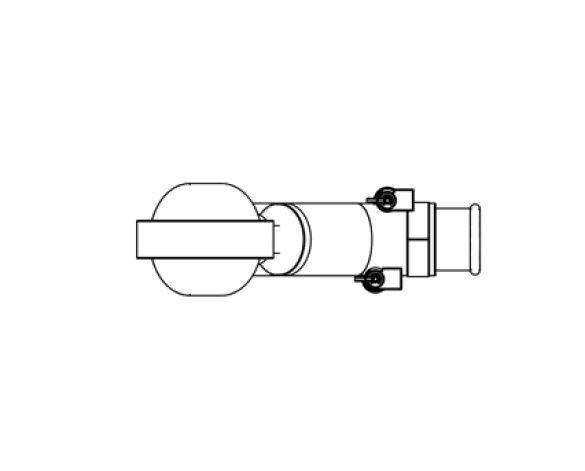

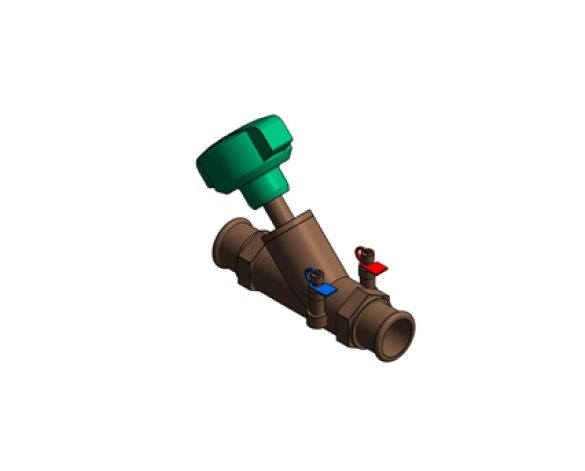

Fig 1732L.PF - Press-Fit Fixed Orifice Double Regulating Valve

Download Add to collection

Description

Fig. 1732L.PF - FODRV complete with Geberit Mapress connectors. Provides precise & accurate flow regulation & measurement.

This download includse all size variations of the 1432L.PF Press-Fit Fixed Orifice Double Regulating Valve by Hattersley.

Object Data

1 Revision

Last Updated

15/04/2014

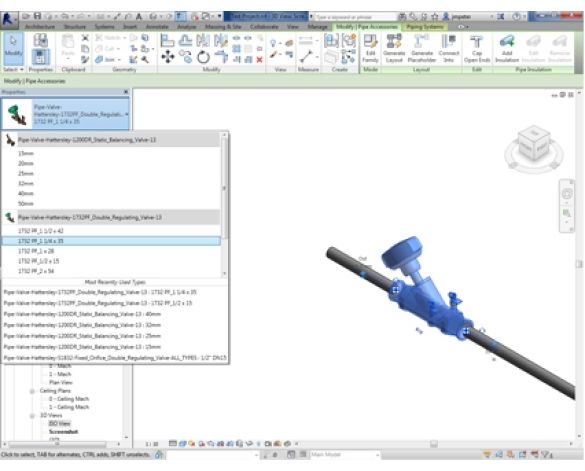

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_Angled Piece Origin 155 mm
_authorRyan Wigham
_BIMspec_GUID0
_Body Radius 212 mm
_Body Sec Rad9 mm
_Bonnet Disc Radius12 mm
_Bonnet Height42 mm
_Bonnet Radius12 mm
_Connection Size Radius9 mm
_current revision1
_distributed bywww.bimstore.co.uk
_Gland Nut Diameter25 mm
_Gland Nut Thickness7 mm
_Gland Radius7 mm
_Stem Radius10 mm
_Test Valve Fixing Depth10 mm
_Test Valve Fixing Width15 mm
_Test Valve Offset 126 mm
_Test Valve Offset 221 mm
A mm87 mm
Assembly CodeD30
B mm110 mm
Balancing ConeDZR Brass BS EN 12165 CW602N
BodyBronze BS EN 1982 CC491K
BonnetBronze BS EN 1982 CC491K
BSYes
C mm46 mm
Connection Size18 mm
Connector O RingCIIR Butyl Rubber WRAS Approved
D mm18 mm
DescriptionFixed Orifice Double regulating valve complete with Press-Fit connectors. Provides precise and accurate flow regulation & measurement.
DiscDZR Brass BS EN 12165 CW602N
Disc FacingsPTFE WRAS Approved
DocumentationLink URLwww.hattersley.com/documents/Fig_1732PF_FODRV_Press-Fit_Hattersley_0813_v3.pdf
Drive SleeveBrass BS EN 12164 CW617N
Drive Sleeve Retaining ClipCarbon Spring Steel DIN7993 SIZE 018
E mm133 mm
Expected Life0
F mm94 mm
Fig 631 Press Test ValveDZR Brass BS EN 12164 CW602N
HandwheelPlastic
Handwheel Retaining ScrewBrass BS EN 12164 CW617N
ID PlatePolycarbonate
ID Plate MaterialAluminum (Yellow)
Joint O RingEPDM Rubber Wras Approved
K Coefficient0.57
KeynoteS
Loss MethodK Coefficient
ManufacturerHattersley Ltd
Memory Stop ScrewHT Steel
Model1732L PF Low Flow
Model Number1732L PF Low Flow
O_Ring SealsEPDM Rubber Wras Approved
Orifice InsertDZR Brass BS EN 12164 CW602N
Press-Fit ConnectorBronze BS EN 1982 CC499K
Pressure (BAR)www.hattersley.com/documents/Fig_1732PF_FODRV_Press-Fit_Hattersley_0813_v3.pdf
Pressure Rating (Cat)PN16
Product DescriptionBronze Fixed Orifice Double Regulating Valve - Low Flow
Product Documentation Linkwww.hattersley.com/documents/Fig_1732PF_FODRV_Press-Fit_Hattersley_0813_v3.pdf
Product Page URLwww.hattersley.com/productView.asp?prodID=174&catID=34
Specification NotesBronze (BS EN 1982 CC491K) Y Pattern Globe Type Fixed Orifice Double Regulating Valve incorporating integral orifice with corner tappings terminating in Hattersley Fig. 631 test points. Double regulating feature set by Allen Key and valve operation by Microset handwheel. Disk with PTFE insert on sizes 1" and above. The entire unit provides a measurement accuracy of ± 5%. Conforms to BS7350 for flow measurement and regulation. Complete with Geberit Mapress bronze Press-Fit adaptors. Rated PN16 (Maximum temperature 12°C).
StemDZR Brass BS EN 12165 CW602N
Stem Length60 mm
Tag MaterialPlastic, Blue Dark
Temperature deg C-10 to 120°C
Type Comments1/2" x 18
Type Name1/2" x 18
Uniclass 2WR-90-94-95
URLwww.hattersley.com/
Valve MaterialBronze, Cast
Warranty Duration12 months
Warranty Duration Unit12 months
Weight (kg)0.72

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
