Fig 1432LC - Static Balancing Valves - PN20 (Threaded)

by Hattersley

Download Add to collection

Description

Provides precise and accurate flow regulation. Easy to operate with hand wheel and numerical indicator. Robust bronze body for long service life. WRAS approved for use with potable water

Features & Benefits:

Provides precise and accurate flow regulation
Easy to operate with handwheel and numerical indicator
Robust bronze body for long service life
WRAS Approved for use with potable water to 85°C
Positive flow control at all handwheel settings

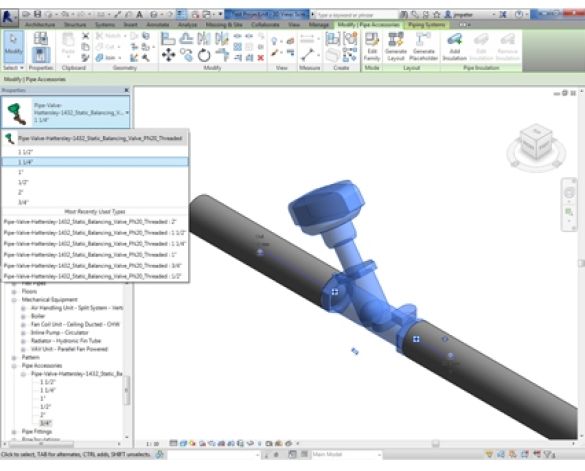

Object Data

1 Revision

Last Updated

15/04/2014

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

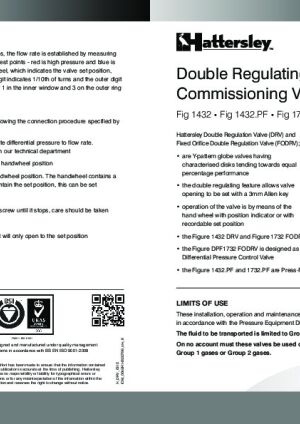

Installation Guide

Product Data Sheet

Object metadata

_Angled Piece Origin 153 mm
_authorRyan Wigham
_BIMspec_GUID0
_Body Sec Rad8 mm
_Bonnet Disc Radius8 mm
_Bonnet Height28 mm
_Bonnet Radius8 mm
_Connection Size Radius8 mm
_current revision1
_distributed bywww.bimstore.co.uk
_End Connector Diameter19 mm
_End Connector Thickness10 mm
_Gland Nut Diameter22 mm
_Gland Nut Thickness3 mm
_Gland Radius4 mm
_Stem Radius10 mm
_Test Valve Fixing Depth10 mm
_Test Valve Fixing Width15 mm
_Test Valve Offset 132 mm
_Test Valve Offset 225 mm
_Test Valve Offset 315 mm
_Test Valve Offset 47 mm
A mm105 mm
Assembly CodeD30
B mm110 mm
BodyBronze BS EN 1982 CC491K
BonnetDZR Copper Alloy 12165 CW602N
BSYes
Connection Size15 mm
DescriptionProvides precise and accurate flow regulation. Easy to operate with handwheel and numerical indicator. Robust bronze body for long service life. WRAS Approved for use with potable water. Positive flow control at all handwheel settings.
DiscDZR Copper Alloy 12165 CW602N
Disc SealPTFE
DocumentationLink URLwww.hattersley.com/documents/Fig_1432_1432L_1432C_1432LC_SBV_Hattersley_0813_v3.pdf
Expected Life0
HandwheelPlastic
ID Plate MaterialAluminum (Yellow)
K Coefficient2.26
KeynoteS
Loss MethodK Coefficient
ManufacturerHattersley Ltd
Model1432LC
Model Number1432LC
Pressure (BAR)www.hattersley.com/documents/Fig_1432_1432L_1432C_1432LC_SBV_Hattersley_0813_v3.pdf
Pressure Rating (Cat)PN16
Product DescriptionBronze Double Regulating Valve
Product Documentation Linkwww.hattersley.com/documents/Fig_1432_1432L_1432C_1432LC_SBV_Hattersley_0813_v3.pdf
Product Page URLwww.hattersley.com/productView.asp?prodID=55&catID=9
Specification NotesBronze (BS EN 1982 CC491K) Y Pattern Globe Type Fixed Orifice Double Regulating Valve incorporating integral orifice with corner tappings terminating in Hattersley Fig. 631 test points. Double regulating feature set by Allen Key and valve operation by Microset handwheel. Disk with PTFE insert on sizes 1" and above. The entire unit provides a measurement accuracy of ± 5%. Conforms to BS7350 for flow measurement and regulation. Complete with Geberit Mapress bronze Press-Fit adaptors. Rated PN16 (Maximum temperature 12°C).
StemDZR Copper Alloy 12165 CW602N
Stem Length51 mm
Stem SealsEPDM
Temperature deg C-10 to 30°C
Type Comments1/2"
Type Name1/2"
Uniclass 2WR-90-94-95
URLwww.hattersley.com/
Valve MaterialBronze, Cast
Warranty Duration12 months
Warranty Duration Unit12 months
Weight (kg)0.54
