DescriptionDZR Ball Valves are light, compact units which are easy to install and operate, giving low flow resistance and 100% bubble tight shut off. The Bi Directional Quarter turn type valve is limited to use for open and closed operation only. WRAS Approved Press-Fit integral ended Ball Valves are designed for both new-build and refurbishment projects, and can be installed on a variety of pipe materials.
FeaturesQuarter-turn full-bore isolation valve complete with integral M-Profile connectors, for reliable sealing and leak reduction on pipework. Supplied as one integral unit means less joints to make on-site, with site labour time reduced by 20% -25%. O-Ring features defined leak paths, a ‘fail safe’ against unpressed joints. Green indicators which surround the pressing contours provide a visual indicator of a pressed joint. Suitable for hard, half hard, and soft copper tubes to EN 1057, precision steel tubes to EN 10305-3, and precision steel tubes EN 10312. Quickly and easily installed using a Press-Fit tool, reducing labour costs. Available in a variety of operators, to meet application requirements. WRAS Approved to 85°C for use on wholesome (potable) water applications. Crane FS warrant the system connection on the D172A Press-Fit Ball Valves, for use on an extensive selection of pipe systems, for Contractor flexibility.
Horizontal Calc0.75 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
Manufacturer NameCrane FS

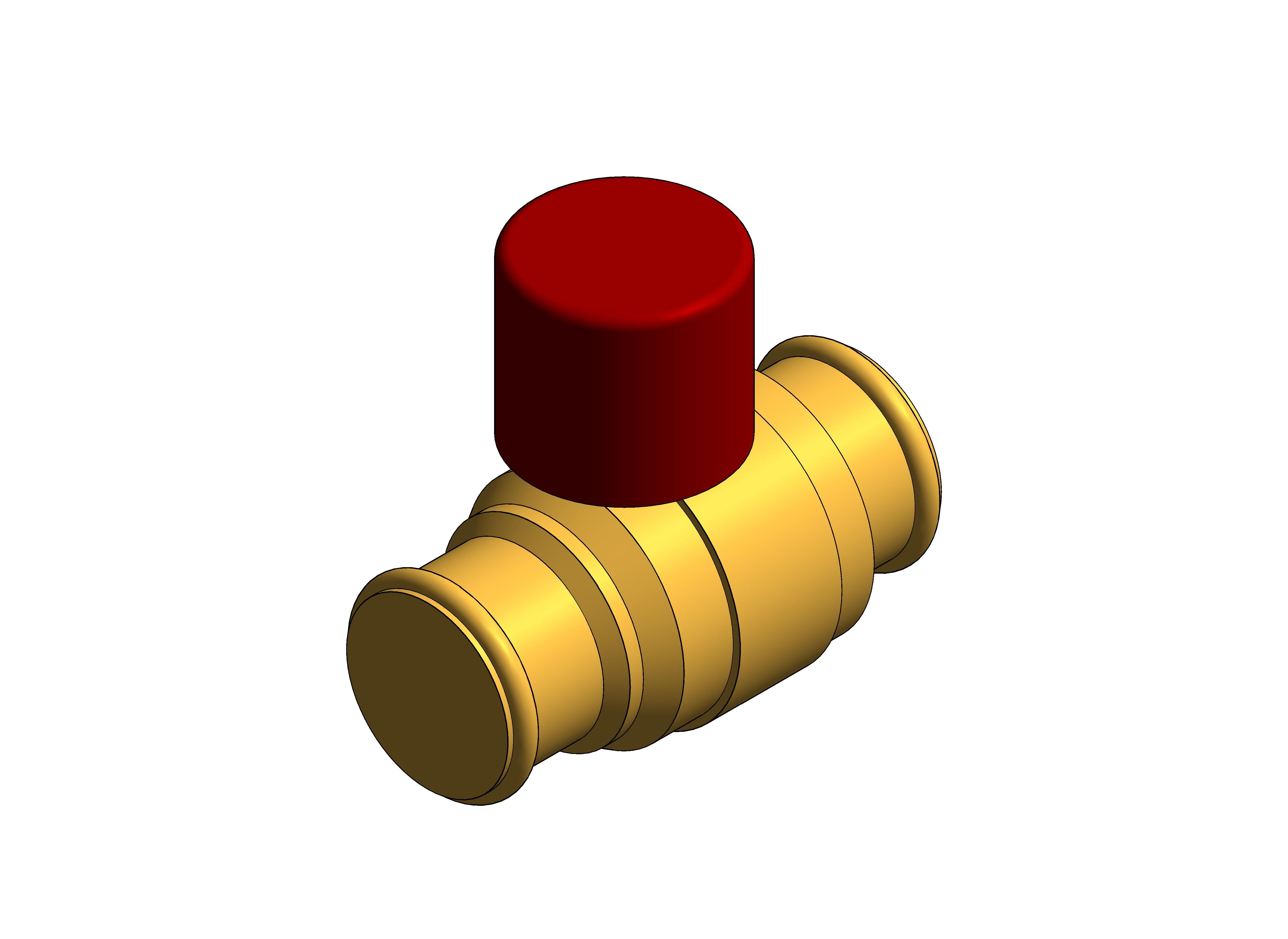

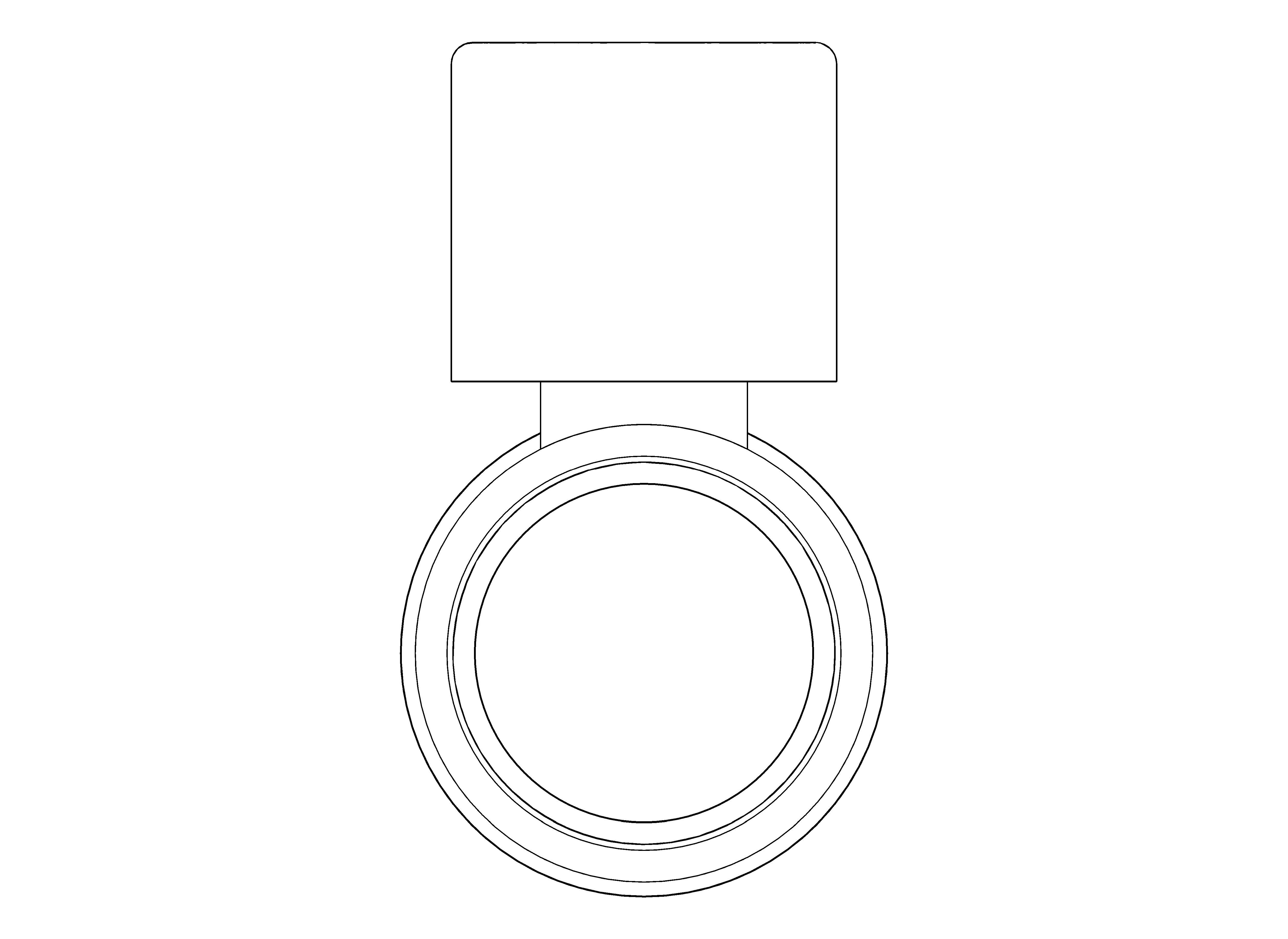

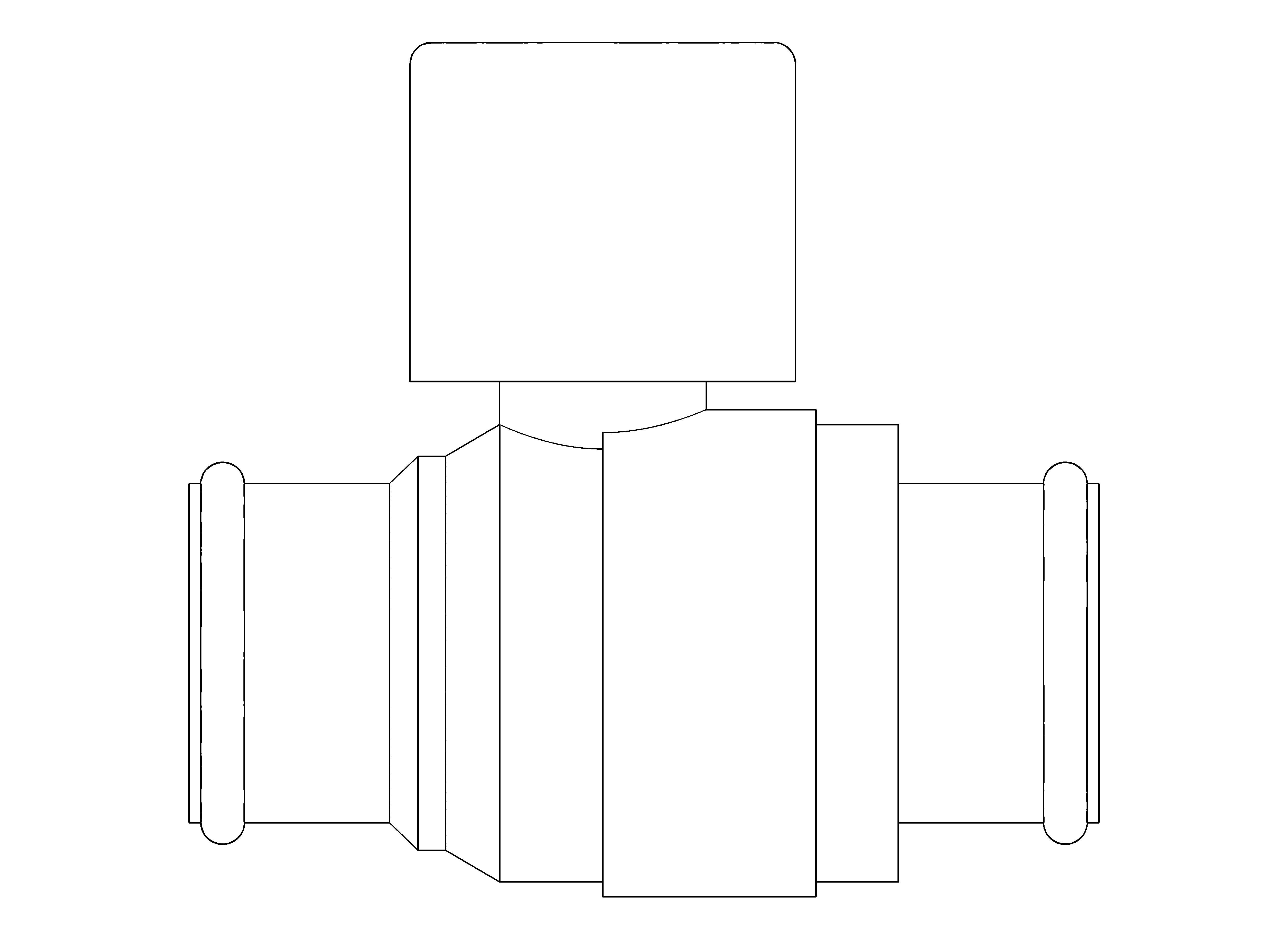

ModelDZR Press Fit Ball Valve - Lockshield
Model ReferenceDZR Press Fit Ball Valve - Lockshield
