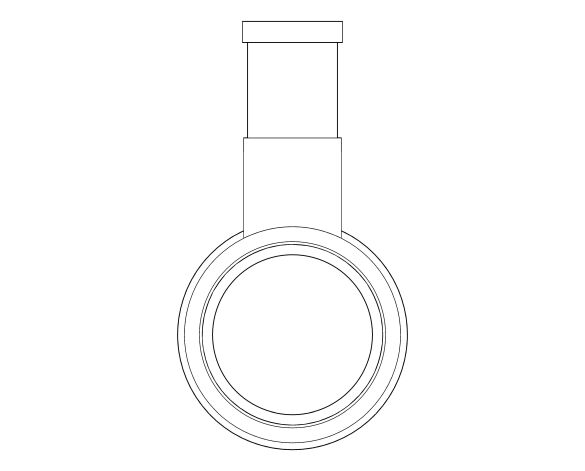

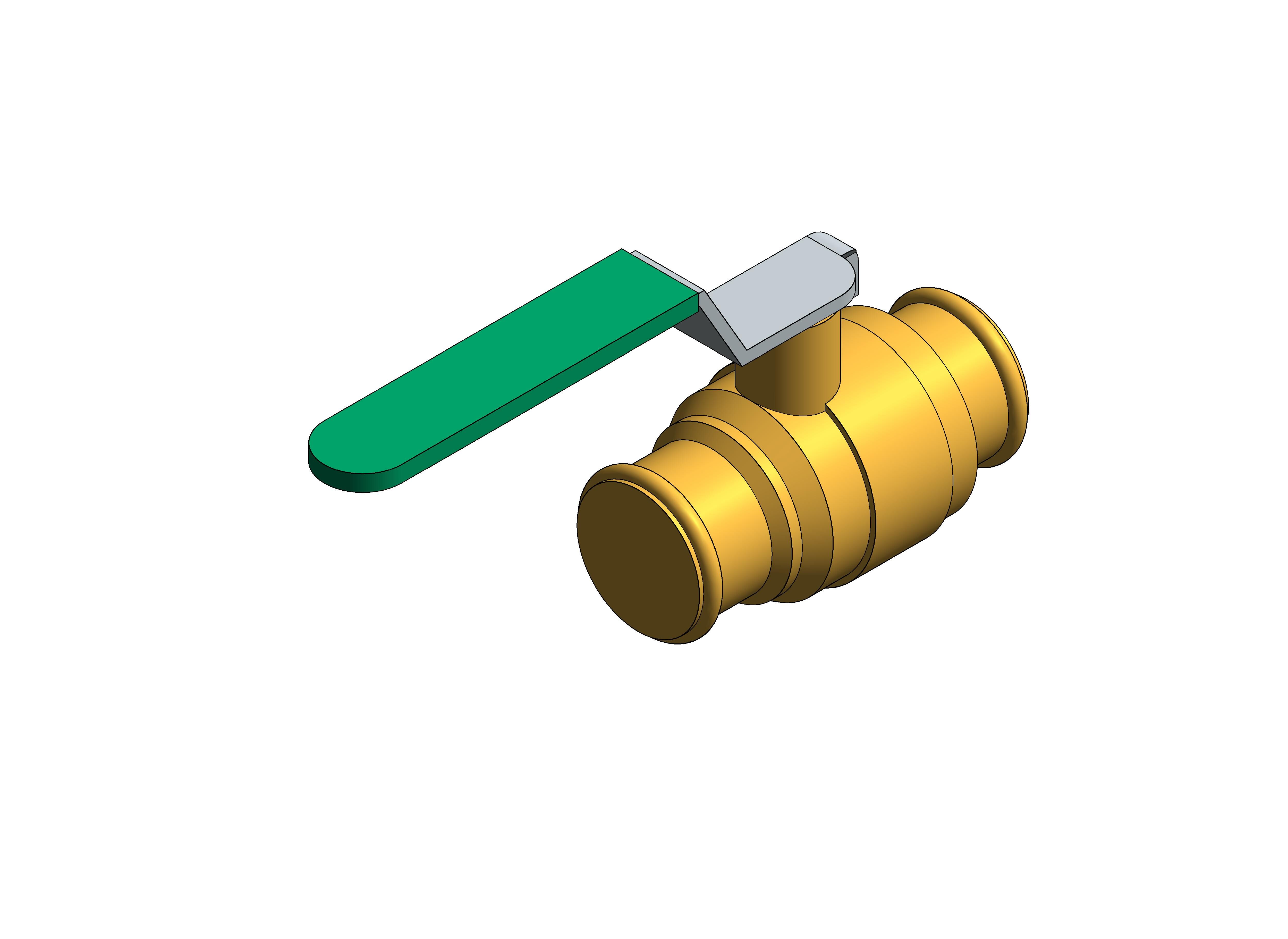

DZR Press Fit Ball Valve - Lever - Fig. 114.PF

  • Product: DZR Press Fit Ball Valve - Lever - Fig. 114.PF
  • Product: DZR Press Fit Ball Valve - Lever - Fig. 114.PF
  • Product: DZR Press Fit Ball Valve - Lever - Fig. 114.PF
  • Product: DZR Press Fit Ball Valve - Lever - Fig. 114.PF
SketchfabSketchfab
  • Views 3.6k
  • Comments 0
  • Rating- / 5
    Rate this product
    1/5 Rating1/5 Rating2/5 Rating2/5 Rating3/5 Rating3/5 Rating4/5 Rating4/5 Rating5/5 Rating5/5 Rating

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

25/01/2021

Available for:
  • Logo: Autodesk Revit

Ball Valves are light, compact units, which are easy to install & operate, giving low flow resistance & 100% bubble tight shut off.

Hattersley WRAS Approved Press-Fit integral ended Ball Valves, are designed for both new-build & refurbishment projects, & can be installed on a variety of pipe materials. The Quarter-turn Bi Directional flow valve is suitable for isolation applications (open or closed).

Features & Benefits:

  • Quarter-turn full-bore isolation valve complete with integral M-Profile press-fit connectors, for reliable sealing
  • O-Ring features define leak paths, to identify unpressed joints
  • Recyclable end-caps are fitted to avoid contamination in transit & storage
  • Press indicators which surround the pressing contours, give visual identification of a pressed joint
  • Suitable for hard & half hard copper tubes to EN 1057, precision carbon steel tubes to EN 10305-3, & precision stainless steel tubes EN 10312, to meet a variety of application requirements
  • Quickly & easily installed using a Press-Fit tool, with site labour time reduced by 20% - 25%
  • WRAS Approved to 85°C for use on wholesome (potable) water applications
  • Available in a variety of operators, to meet application requirements
  • Tested to DVGW W534 12.7 to ensure valves are watertight & endurable during pressure pick-up
  • BIM models available, enabling projects to be delivered quicker, cheaper & inline with rigid legislative standards.
