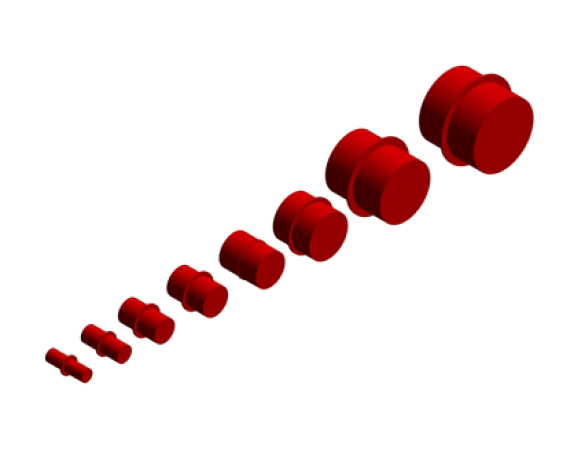

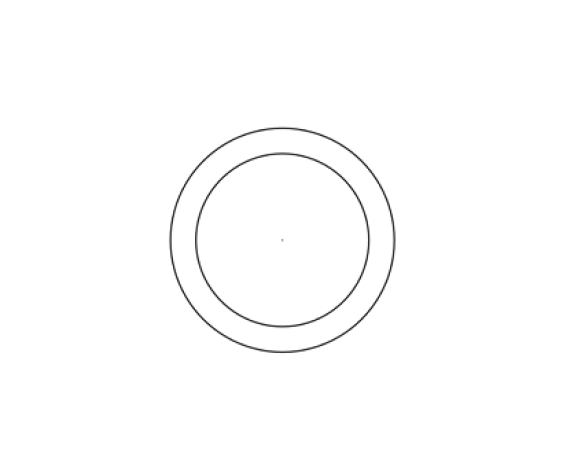

Downpipe Support

Description

The Harmer SML lightweight cast iron pipework systemis dry-jointed, Agrément certified, and has a proventrack record for above-ground drainage. With itscomprehensive range of fittings and accessories, SML isthe ideal soil and waste system which can also be usedfor rainwater installations.

This download contains the Downpipe Support BIM Component

Object Data

2 Revision

Last Updated

06/09/2017

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorIan Holmes
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision2
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeD2030100
Asset TypeFixed
BIM Object NamePipeFitting_HarmerDrainage_SML_DownpipeSupport
Classification NameUniclass2015
Classification ValuePr_65_52_63_12
Code Performancen/a
Codes Of PracticeBS EN 12056-2, BS EN 12056-3, BS EN 752: 1996
Coefficient Of Thermal Expansion0.0105 mm/m/K
Colorn/a
Connection Dia100.000000000000 mm
Connection Radius50.000000000000 mm
Constituentsn/a
Created Byinfo@alumascwms.co.uk
Created On2017-06-01T09:00:00
d145.000000000000 mm
Declaration Of Confomitywww.harmerdrainage.co.uk/downloader.aspx?type=ce-mark&file=harmer-sml-ce-declaration-of-confomity.pdf&info=Harmer SML CE Declaration of Confomity
DescriptionDownpipe Support
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturewww.harmerdrainage.co.uk/downloader.aspx?type=Brochure&file=sml_technical.pdf&info=Harmer SML Technical Submittal
Documentation Maintenancen/a
Documentation Technicalwww.harmerdrainage.co.uk/downloader.aspx?type=Brochure&file=sml_technical.pdf&info=Harmer SML Technical Submittal
Drainage Design Calculatorwww.harmerdrainage.co.uk/calculators/
Duration UnitYears
Environmental Considerations100% recyclable material therefore all waste can be returned to the furnace to make new cast iron products.
Expected Life0
External Diameter112.000000000000 mm
Featuresn/a
FinishCast Iron
Graden/a
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
K Coefficient TableRegular 45, 90 and 180 Elbow
KeynoteR11/140
l200.000000000000 mm
Loss Method0
ManufacturerHarmer Drainage Systems
Manufacturer NameHarmer Drainage Systems
Manufacturers AddressALUMASC WATER MANAGEMENT SOLUTIONS, Station Road, Burton Latimer, Kettering, NN15 5JP, NN15 5JP
Manufacturers Emailinfo@alumascwms.co.uk
Manufacturers Telephone Number 44 (0)1536 383810
MaterialCast Iron
ModelDownpipe Support
Model NumberDownpipe Support
Model ReferenceDownpipe Support
NBS DescriptionCast iron drainage pipe and fittings
NBS Object NameHarmer Drainage - Cast iron drainage pipe and fittings
NBS Office Master Tagn/a
NBS Reference90-10-20/342
Nominal Depth0.000000000000 mm
Nominal Height0.000000000000 mm
Nominal Length0.000000000000 mm
Nominal Pipe Dia100.000000000000 mm
Nominal Weight2.300000000000 kg
Product Code661564
Production Year2017
Product Pagewww.harmerdrainage.co.uk/harmer-drainage-systems/product-listing/Soil and Waste/Harmer SML L$W Cast Iron
Quality AssuranceBS EN ISO 9001: 2000 Registered No. 12 100 21864, IZEG and GEG
Referenced Standardn/a
Replacement Costn/a
Safety Data Sheetwww.harmerdrainage.co.uk/downloader.aspx?type=COSHH&file=M002DR.pdf&info=Harmer SML
Shapen/a
Size100mm
Spare Partsn/a
Testing And CertificationBBA Certificate No. 05/4191, BS EN 877, ISO 6594, BS EN 681/ISO 4633, BS EN 14366: 2004, EN 13501-1, BS EN 1561
Type Comments100mm
Type NameDownpipe Support
URLwww.harmerdrainage.co.uk/
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@alumascwms.co.uk
Warranty Guarantor Partsinfo@alumascwms.co.uk
x96.000000000000 mm

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
