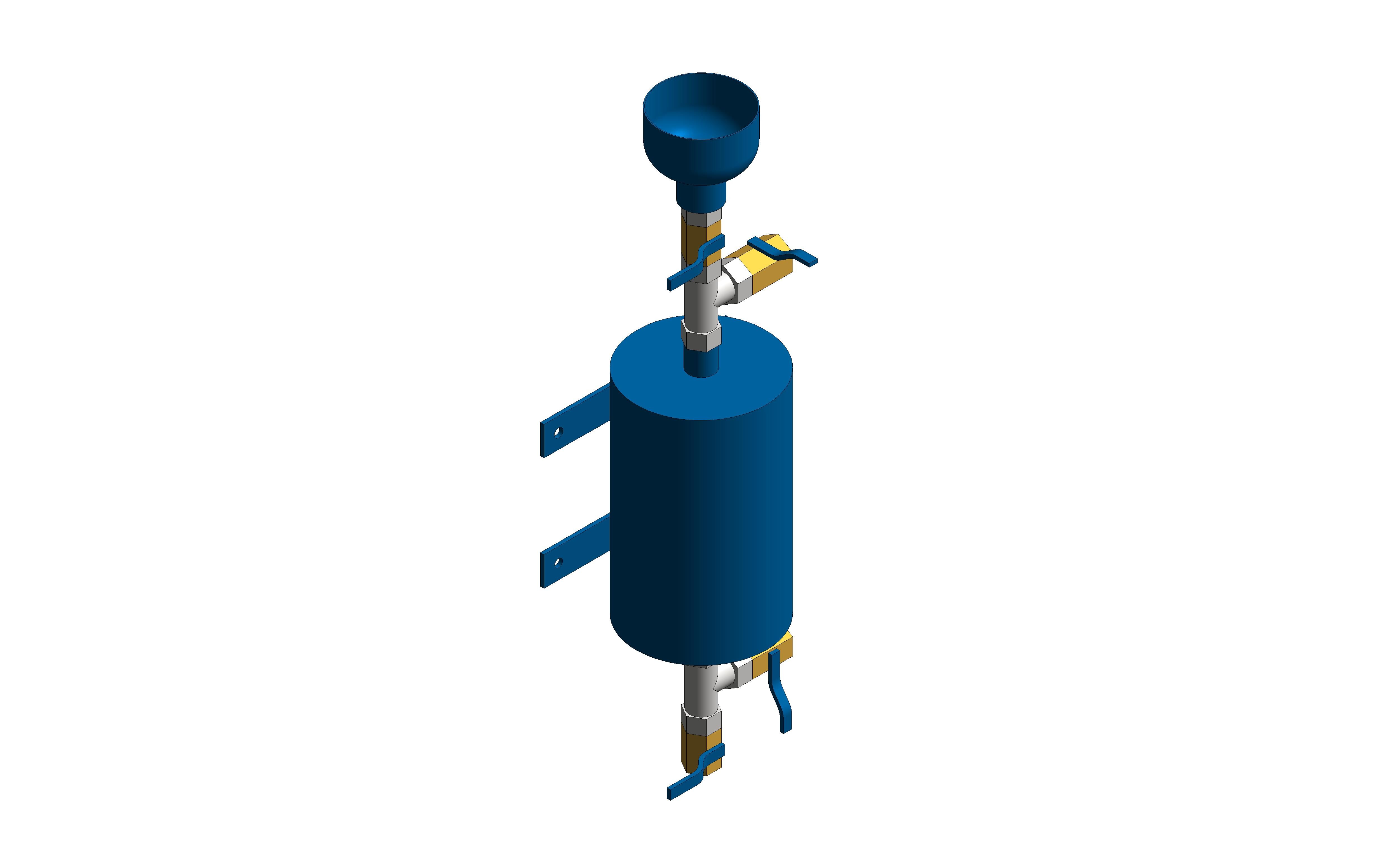

Dosing Pot

Description

ADEY’s range of Chemical Dosing Pots provide a safe and controlled method of introducing chemicals into sealed heating and cooling water systems whilst not interrupting a systems' operation. Supplied fully assembled for ease of installation.

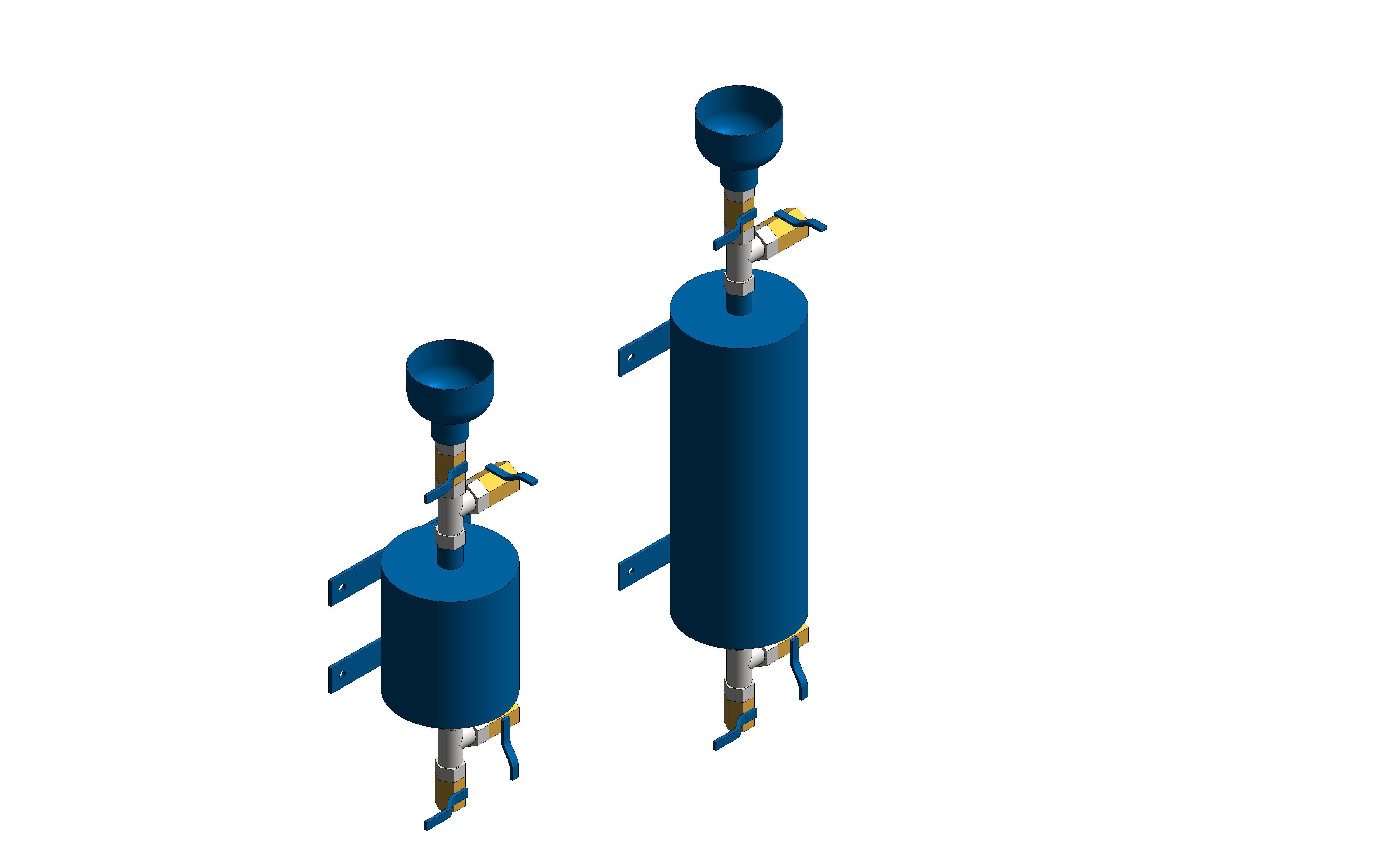

Available in the following sizes:

FL1-03-04728 - 3.5 Litre
FL1-03-04312 - 6 Litre
FL1-03-04313 - 11 Litre
FL1-03-04314 - 18 Litre

Object Data

1 Revision

Last Updated

10/02/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Installation Guide

Product Data Sheet

Object metadata

_Authorinfo@adey.com
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version15
_Created Byinfo@adey.com
_Current Revision2
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Asset TypeFixed
Back to Center116 mm
BIM Object NameAdey_MechanicalEquipment_ChemicalDosingPot
Body Height248 mm
Center to top bar85 mm
Centre to bottom bar85 mm
Classification NameUniclass2015
Classification ValuePr_60_55_97
Code Performancen/a
ColorBlue
Constituentsn/a
Created Byinfo@adey.com
Created On2020-02-10:T09:00:00
Default Elevation1500 mm
DescriptionADEY’s range of Chemical Dosing Pots provide a safe and controlled method of introducing chemicals into sealed heating and cooling water systems whilst not interrupting a systems' operation. Supplied fully assembled for ease of installation.
Diameter220 mm
Distance Between Supports170 mm
Documentation Certificateswww.adey.com/product/dosing-pot
Documentation Installation Guidewww.adey.com/product/dosing-pot
Documentation Literaturewww.adey.com/product/dosing-pot
Documentation Maintenancewww.adey.com/product/dosing-pot
Documentation Technicalwww.adey.com/product/dosing-pot
Duration UnitYears
Expected Life0
Featuresn/a
FinishPowder coated RAL5005
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.MIXING
KeynoteS12
ManufacturerAdey
Manufacturer NameAdey
MaterialFittings - Galvanised Malleable Iron | Body - Carbon steel | Valves - Brass | Tundish - Mild Steel
ModelChemical Dosing Pot
Model NumberChemical Dosing Pot
Model ReferenceFL1-03-04312- 6 Litre
NBS DescriptionWater treatment products
NBS Object NameAdey - Water treatment products
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth220 mm
Nominal Height856 mm
Nominal Length315 mm
PHD Product Weight Per 1 Unit17.00 kg
Production Year2020
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size6 Litre
Spare Partsn/a
Support Bracket Width315 mm
Type CommentsFL1-03-04312- 6 Litre
Type NameFL1-03-04312- 6 Litre
URLwww.adey.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts2
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsinfo@adey.com
