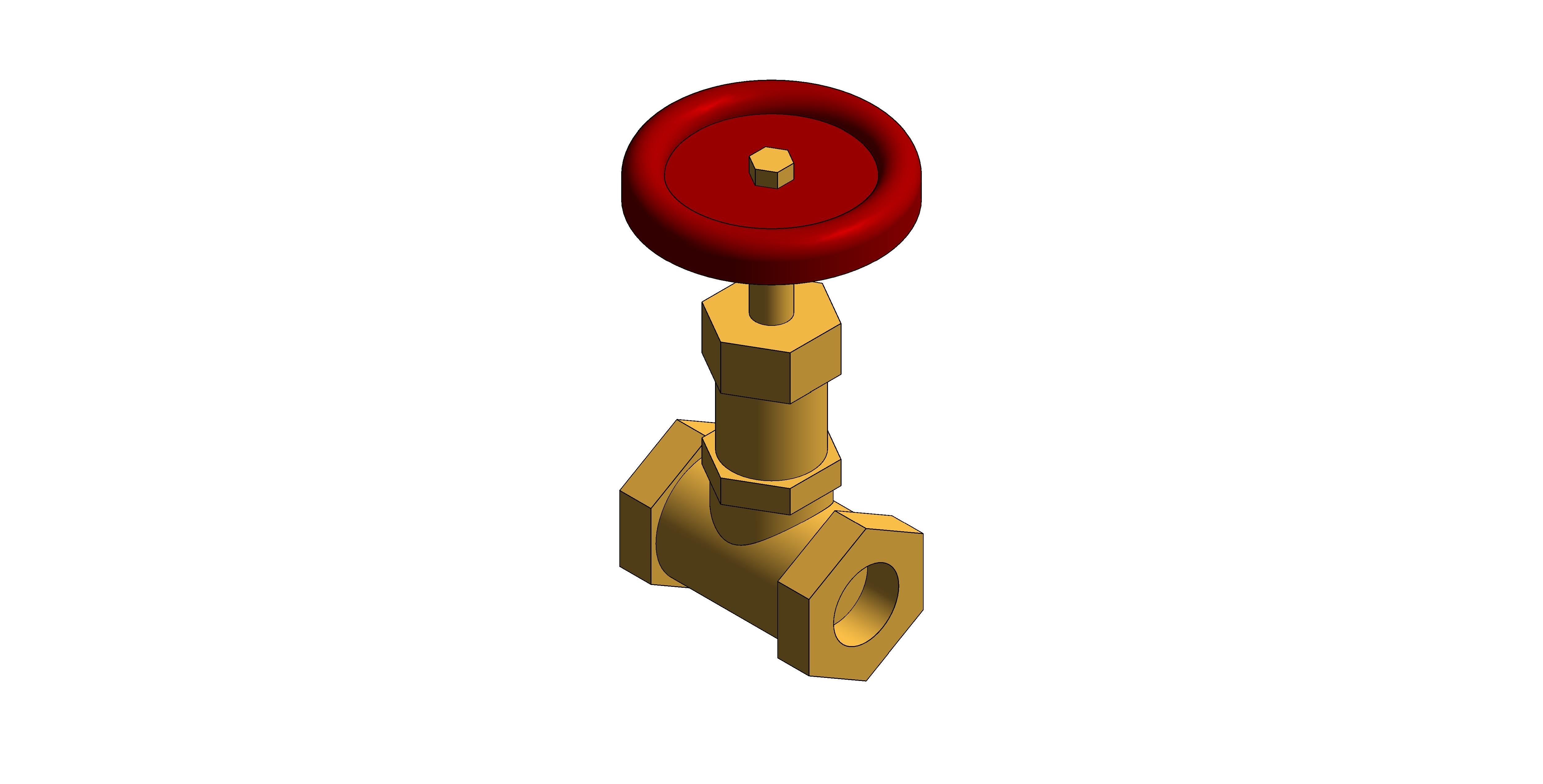

D71 - Globe Valve - Bronze

by Crane Fluid Systems

Download Add to collection

Description

PN32 Bronze Needle Globe Valve

Features & Benefits:

Crane bronze globe valves are highly efficient for throttling because seat and disc designs provide flow characteristics with proportionate relationships between valve lift and flow rate.

Object Data

1 Revision

Last Updated

22/03/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

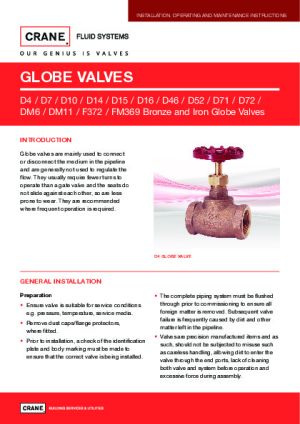

Installation Guide

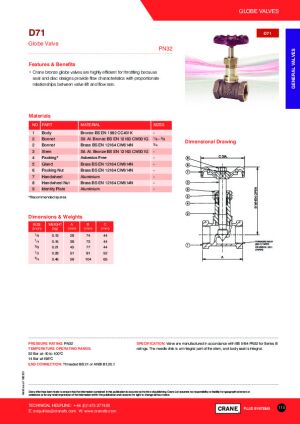

Product Literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/d71-globe-valve-bronze/document/object-user-guide
A51.00 mm
a8.42 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b12.00 mm
B91.00 mm
BIM Object NameCraneFS_GlobeValve_D71
BodyBronze BS EN 1982 (CC491K)
BonnetSil. Al. Bronze BS EN 12163 (CW301G)
C52.00 mm
c26.25 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_16
Code Performancen/a
Colorn/a
Connection Radius7.50 mm
Connection Size15.00 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2022-02-01 T:09:00:00
d9.45 mm
DescriptionCrane bronze globe valves are highly efficient for throttling because seat and disc designs provide flow characteristics with proportionate relationships between valve lift and flow rate.
Documentation Certificateswww.bimstore.co/products/d71-globe-valve-bronze/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/d71-globe-valve-bronze/document/installation-guide
Documentation Literaturewww.bimstore.co/products/d71-globe-valve-bronze/document/product-literature
Documentation Maintenancewww.bimstore.co/products/d71-globe-valve-bronze/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/d71-globe-valve-bronze/document/technical-data-sheet
Duration UnitYear
e21.37 mm
End ConnectionThreaded BS 21 or ANSI B1.20.1
Expected Life0
f8.50 mm
Featuresn/a
Finishn/a
g23.50 mm
GlandBrass BS EN 12164 (CW614N)
Graden/a
h16.00 mm
HandwheelAluminium
Handwheel NutBrass BS EN 12164 (CW614N)
i6.00 mm
ID PlateAluminium
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
j40.00 mm
k11.00 mm
K Coefficient0
KeynoteS
Loss MethodK Coefficient
m23.50 mm
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelD71
Model NumberD71
Model ReferenceD71 Globe Valve - Bronze
NBS DescriptionCopper alloy globe valves
NBS Noten/a
NBS Object NameCrane FS - Copper alloy globe valves
NBS Office Master Tagn/a
NBS Reference90-10-90/344
Nominal Depth52.00 mm
Nominal Height103.00 mm
Nominal Length51.00 mm
PackingAsbestos Free
Packing NutBrass BS EN 12164 (CW614N)
Pressure RatingPN32
Production Year2022
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size1/2"
Spare Partsn/a
Specification NotesValve are manufactured in accordance with BS 5154 PN32 for Series B ratings. The needle disk is an integral part of the stem, and body seat is integral.
StemSil. Al. Bronze BS EN 12163 (CW301G)
Temperature Operating Range32 Bar at -10 to 100°C; 14 Bar at 198°C
Type CommentsD71 Globe Valve - Bronze
Type NameD71 Globe Valve - Bronze
URLwww.cranefs.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
Weight0.29 kg
