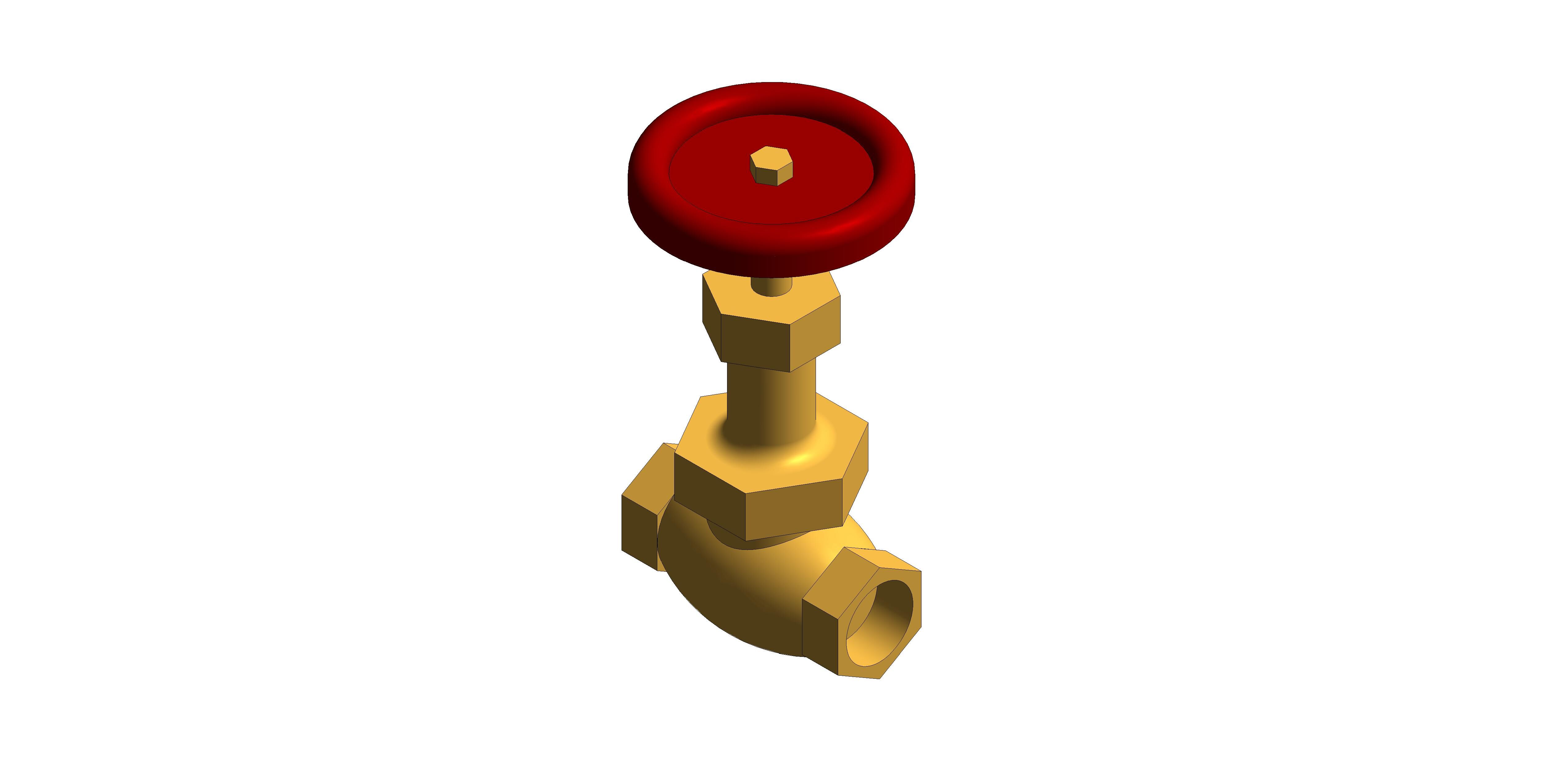

D52 - Globe Valve - Bronze

by Crane Fluid Systems

Download Add to collection

Description

PN64 Bronze Globe Valve

Features & Benefits:

Crane bronze globe valves are highly efficient for throttling because seat and disc designs provide flow characteristics with proportionate relationships between valve lift and flow rate.
This valve features a renewable nickel alloy plug disc and a stainless steel seat.

Object Data

1 Revision

Last Updated

22/03/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

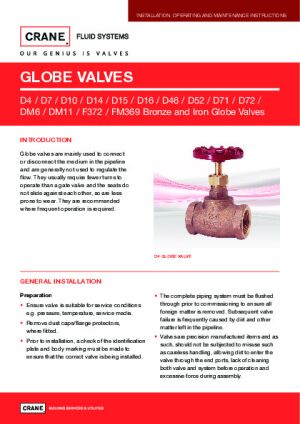

Installation Guide

Product Literature

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/d52-globe-valve-bronze/document/object-user-guide
a21.95 mm
A133.00 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
Available OptionsP150 Locking Device
b25.00 mm
B228.00 mm
BIM Object NameCraneFS_GlobeValve_D52
BodyBronze BS EN 1982 (CC491K)
Body Seat Ring13% Cr. Steel BS 970 Pt1 416S21R
BonnetBronze BS EN 1982 (CC491K)
c90.00 mm
C121.00 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_16
Code Performancen/a
Colorn/a
Connection Radius20.00 mm
Connection Size40.00 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2022-02-01 T:09:00:00
d60.00 mm
DescriptionCrane bronze globe valves are highly efficient for throttling because seat and disc designs provide flow characteristics with proportionate relationships between valve lift and low rate. This valve features a renewable nickel alloy plug disc and a stainless steel seat.
Disc316 Stainless Steel
Disc Stem RingAluminium Bronze BS EN 12163 (CW301G)
Documentation Certificateswww.bimstore.co/products/d52-globe-valve-bronze/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/d52-globe-valve-bronze/document/installation-guide
Documentation Literaturewww.bimstore.co/products/d52-globe-valve-bronze/document/product-literature
Documentation Maintenancewww.bimstore.co/products/d52-globe-valve-bronze/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/d52-globe-valve-bronze/document/technical-data-sheet
Duration UnitYear
e17.29 mm
End Connection(UK)BS 21 Taper
End Connection(US)Not Specified
Expected Life0
f50.00 mm
Featuresn/a
Finishn/a
g22.00 mm
GlandBrass BS EN 12164 (CW614N)
Graden/a
h37.23 mm
HandwheelAluminium
Handwheel NutBrass BS EN 12164 (CW614N)
i37.00 mm
ID PlateAluminium
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
j28.00 mm
k130.00 mm
K Coefficient0
KeynoteS
l28.00 mm
LockwasherBrass BS EN 1652 (CW507L)
Loss MethodK Coefficient
m75.00 mm
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelD52
Model NumberD52
Model ReferenceD52 Globe Valve - Bronze
n52.12 mm
NBS DescriptionCopper alloy globe valves
NBS Noten/a
NBS Object NameCrane FS - Copper alloy globe valves
NBS Office Master Tagn/a
NBS Reference90-10-90/344
Nominal Depth121.00 mm
Nominal Height263.00 mm
Nominal Length133.00 mm
OperatorHandwheel
PackingAsbestos Free
Packing NutBrass BS EN 12164 (CW614N)
Pressure RatingPN64
Production Year2022
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size1 1/2"
Spare Partsn/a
Specification NotesValves having PN64 ratings are not specified in BS 5154. D52 valves meet the requirements of BS 5154 in respect to materials design and method of manufacture as far as applicable. Design incorporates a Duplex Stainless Steel S32205 plug type disc retained on the stem by a threaded ring. The body seat is a screwed-in stainless steel ring. Valves having ANSI threads also generally conform to MSS SP-80. Not suitable for use on unstable fluids as defined by the Pressure Equipment Directive 2014/68/EU.
StemAluminium Bronze BS EN 12163 (CW301G)
Temperature Operating Range-10 to 288°C
Type CommentsD52 Globe Valve - Bronze
Type NameD52 Globe Valve - Bronze
Union RingBronze BS EN 1982 (CC491K)
URLwww.cranefs.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
Weight5.05 kg
