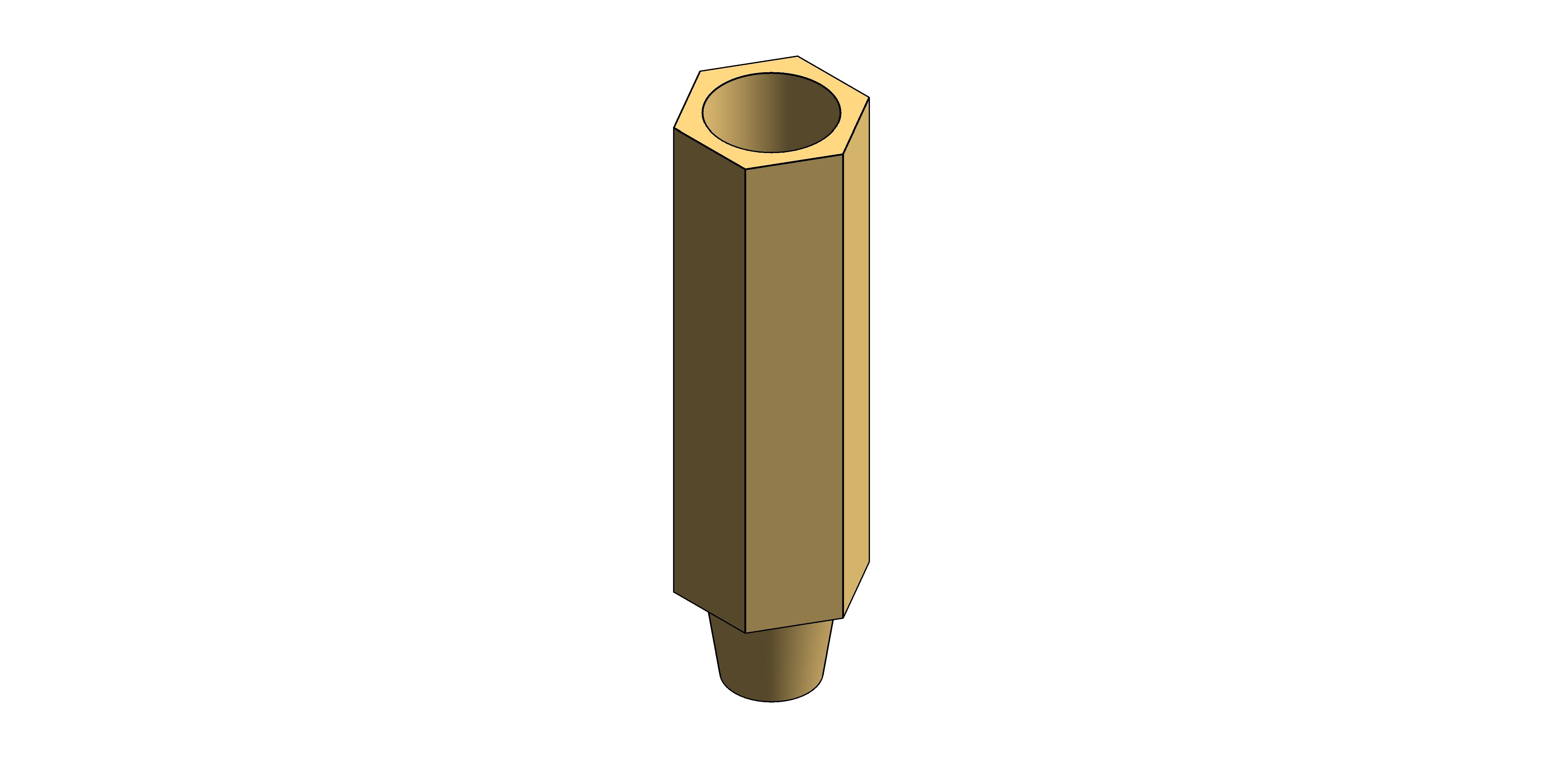

P83 - Extension Tube

by Crane Fluid Systems

Download Add to collection

Description

P83

Extension Tube

Features & Benefits

P83 pressure test point extension tubes allow Crane Fluid Systems' valves to be insulated to a thickness of 2" without the test points being covered.

Pressure Rating	PN40
Temperature Rating	10 - 120°C
End Connections	Taper threaded to BS EN 10226-2 (ISO 7-1) formerly BS 21

Object Data

1 Revision

Last Updated

31/08/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

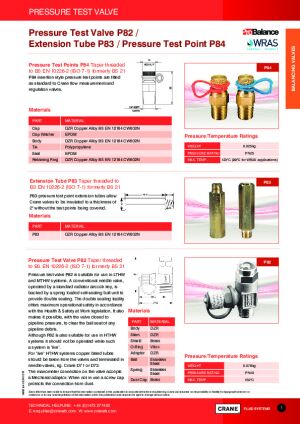

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/cranefs-p83/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
BIM Object NameCraneFS_ExtensionTube_P83
Classification NameUniclass 2015
Classification ValuePr_65_54_93_87
Code Performancen/a
Colorn/a
Connection Size0.00 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2021-08-31T:09:00:00
Default Elevation0.00 mm
DescriptionP83 - Extension Tube
Diameter17.00 mm
Documentation Certificateswww.bimstore.co/products/cranefs-p83/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/cranefs-p83/document/installation-guide
Documentation Literaturewww.bimstore.co/products/cranefs-p83/document/product-literature
Documentation Maintenancewww.bimstore.co/products/cranefs-p83/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/cranefs-p83/document/technical-data-sheet
Duration UnitYear
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Height66.50 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient0
KeynoteS
Loss MethodK Coefficient
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelP83 - Extension Tube
Model NumberP83
Model ReferenceP83 - Extension Tube
NBS DescriptionTest points
NBS Noten/a
NBS Object NameCrane FS - Test points
NBS Office Master Tagn/a
NBS Reference90-10-90/360
Nominal Depth17.00 mm
Nominal Height66.50 mm
Nominal Length17.00 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Test Point MaterialCrane - Metal - DZR Copper Alloy
Type CommentsP83 - Extension Tube
Type NameP83 - Extension Tube
URLwww.cranefs.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
