F493 - Check Valve - Cast Iron

by Crane Fluid Systems

Download Add to collection

Description

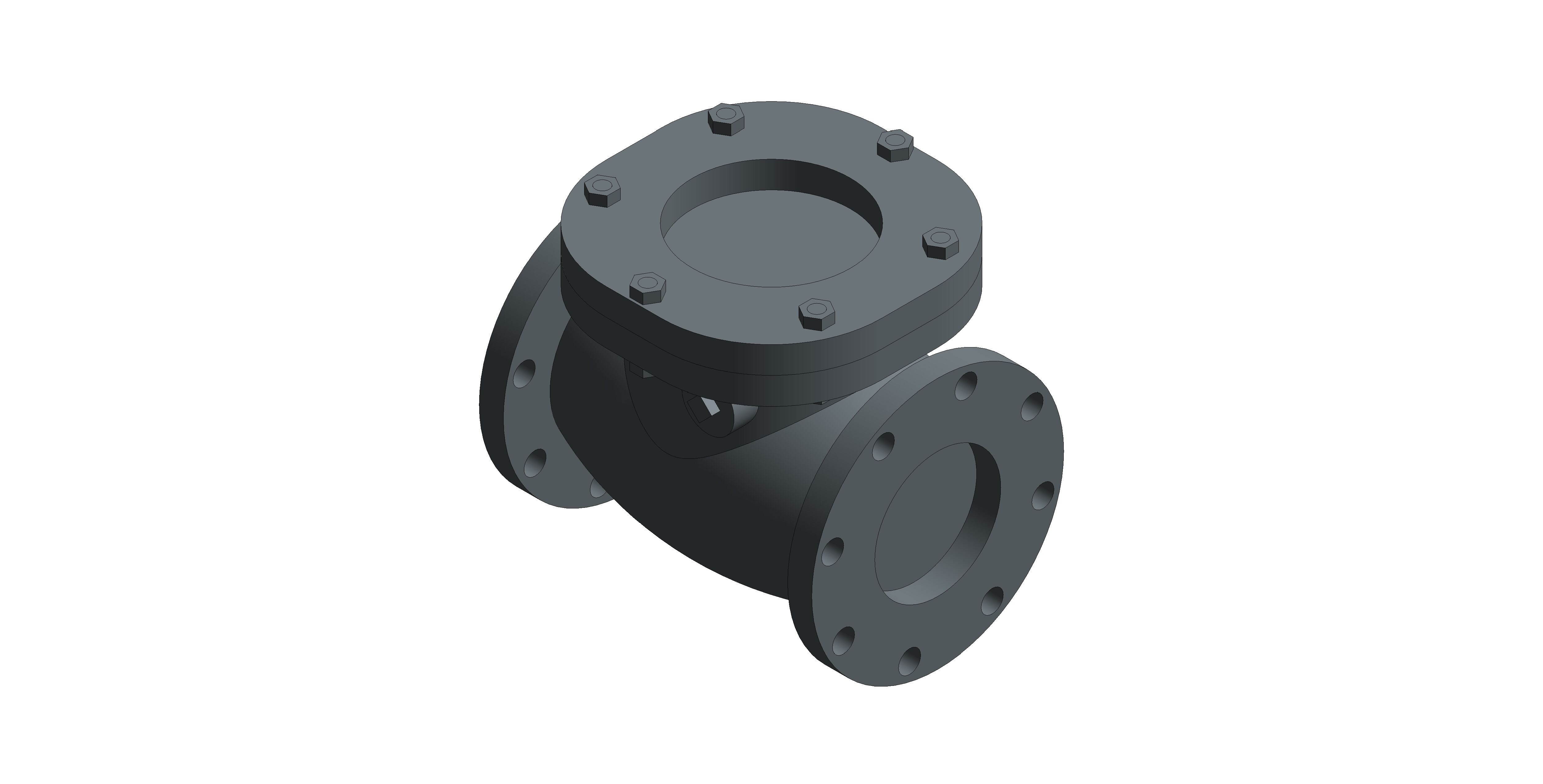

F493 - 2" to 12"

Check Valve - Cast Iron

Class 125 Cast Iron Check Valve

Features & Benefits

The F493 is a swing check valve with a Bronze trim
Manufactured to BS 5153:1974

Size	2" to 12"
Pressure Rating	Class 125
End Connections	ANSI Class 125
Material	Cast Iron

Object Data

1 Revision

Last Updated

31/08/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

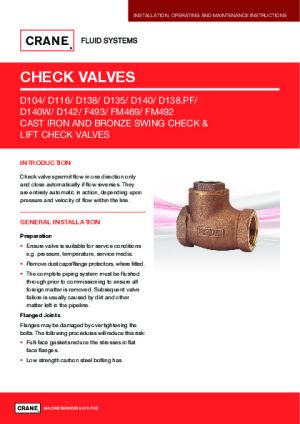

Object User Guide

Installation Guide

Maintenance Information

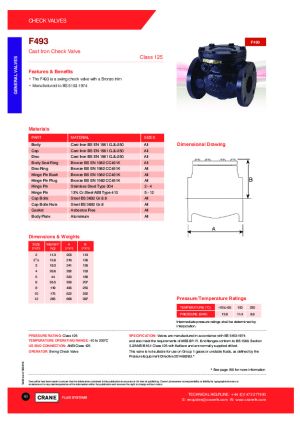

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/cranefs-f493/document/object-user-guide
A622.00 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B406.00 mm
BIM Object NameCraneFS_CheckValve_F493
Body Centre590.00 mm
Body Radius800.00 mm
Body Vertical Radius164.54 mm
Body Width562.00 mm
Bolt Offset389.70 mm
Border Circle Offset73.53 mm
Border Circle Radius73.53 mm
B Radius203.00 mm
C30.00 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_40_13
Code Performancen/a
Colorn/a
Connection Size250.00 mm
Connection Size Radius125.00 mm
Constituentsn/a
Cover Centre123.71 mm
Cover Disc Size433.00 mm
Cover Radius173.20 mm
Created Byenquiries@cranefs.com
Created On2021-08-31T:09:00:00
D433.00 mm
DescriptionF493 - Check Valve - Cast Iron
Documentation Certificateswww.bimstore.co/products/cranefs-f493/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/cranefs-f493/document/installation-guide
Documentation Literaturewww.bimstore.co/products/cranefs-f493/document/product-literature
Documentation Maintenancewww.bimstore.co/products/cranefs-f493/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/cranefs-f493/document/technical-data-sheet
Duration UnitYear
E352.00 mm
Expected Life0
Featuresn/a
Finishn/a
Flange Hole Centres362.00 mm
Flange Hole Diameter22.00 mm
Flange Hole Radius11.00 mm
Graden/a
Hinge Pin Centre Offset76.79 mm
Hinge Pin Length329.08 mm
Hinge Pin Radius41.14 mm
Hole Offset Radius181.00 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
K Coefficient3072.69
KeynoteS
Loss MethodK Coefficient
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelF493 - Check Valve - Cast Iron
Model NumberF493
Model ReferenceF493 - Check Valve - Cast Iron
NBS DescriptionCheck valves
NBS Noten/a
NBS Object NameCrane FS - Check valves
NBS Office Master Tagn/a
NBS Reference90-15-40/323
Nominal Depth433.00 mm
Nominal Height555.00 mm
Nominal Length622.00 mm
Number Of Holes12
Nut Diameter36.08 mm
Nut Height16.04 mm
Nut Length104.26 mm
Plug Depth13.71 mm
Plug Width27.42 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size10"
Spare Partsn/a
Top Of Stem231.70 mm
Type CommentsF493 - Check Valve - Cast Iron
Type NameF493 - Check Valve - Cast Iron
URLwww.cranefs.com/
Valve MaterialCrane - Metal - Cast Iron
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
