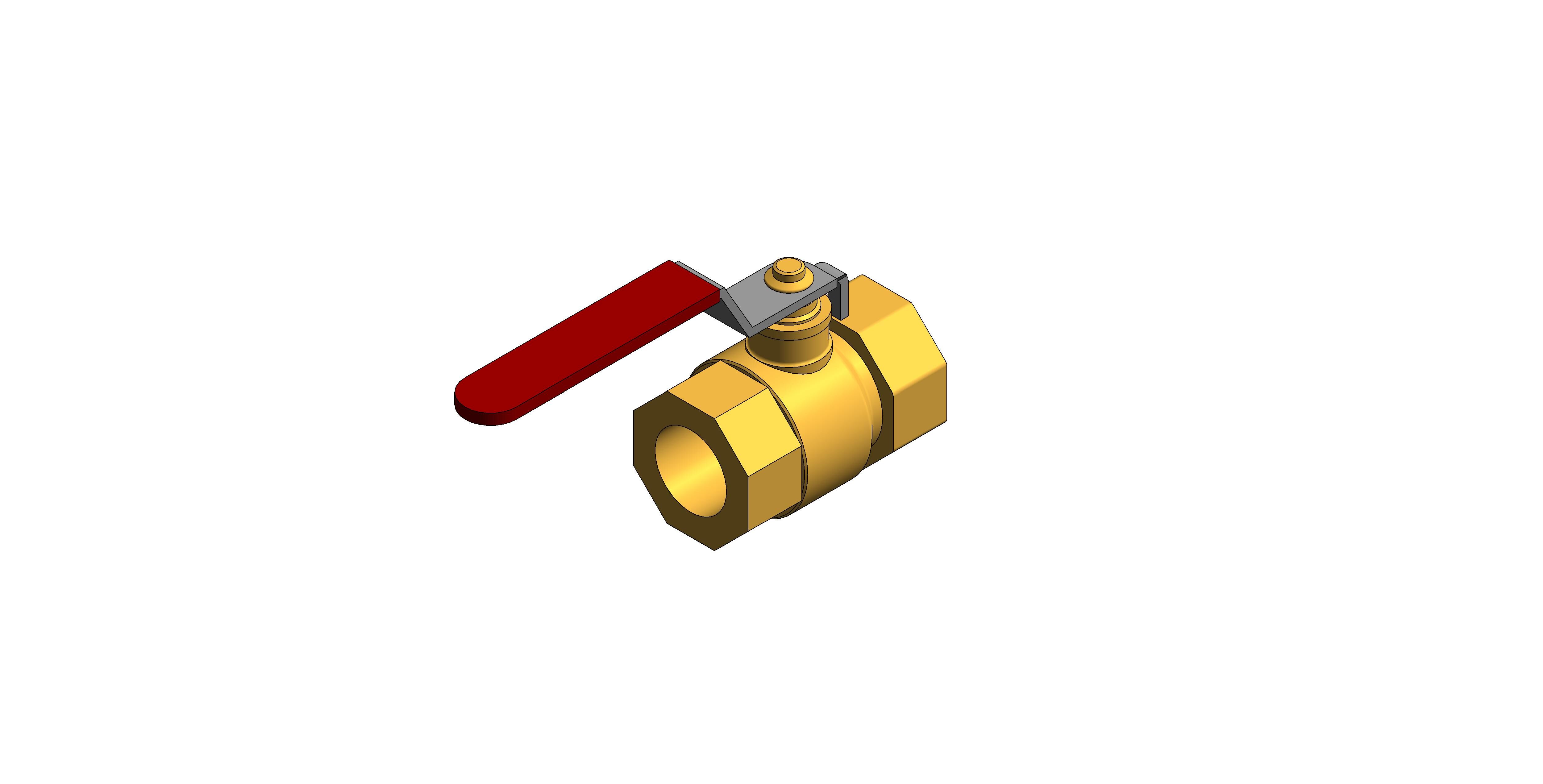

D171 - Ball Valve - Bronze
Description
D171 - 1/4" to 3"
Ball Valve - Bronze
PN25 Bronze Ball Valve
Features & Benefits
- D171 Ball Valves are light, compact units which are easy to install and operate, yet their robust construction ensures long, trouble free service life.
- D171 and D171EXS are WRAS approved.
Size | 1/4" to 3" |
Pressure Rating | PN25 |
End Connections | Taper Threaded To BS EN 10226-2 (Iso 7-1) Formerly BS 21 |
Material | Bronze |
Object Data
1 Revision
Last Updated
31/08/2021
Available Software
BS1192:4
Compliant
BSB
Compliant
EPD
Not Available
Sustainability & Environmental Data
Not available.
Environmental Product Declarations
There are no EPDs.
You must log in to write a comment
Login or Join
Patrick Mahon on 27 August 2021
Please note The Type Parts Catalogue is an empty file and therefore only one default valve size is available '1/4". Can someone place the correct file here
Natalie Charlton on 25 April 2019
Thanks for your comment Rob, the bimstore team are looking into this for you.
Rob Burrows on 25 April 2019
Downloaded, Loaded family error message cannot parse column header 1, so can only use 1/4"
Vu Tran on 10 January 2018
Hi everyone! I'm new here. Pls tell me how to choose the correct size when i want to dowload revit family in this site. for example: i want to download 1" gate valve (with flange end), i can see too many valve here but i don't know how to choose the correct size. i try some times but it's not meet my need. tks all
Benjamin Barfoot on 02 January 2018
Please, could someone review the comments???
Dan O'Sullivan on 27 June 2016
Hi,
Do you have metric sizes for valves?
Ermintrude Bimstore Cow on 10 July 2015
Great, thanks for letting us know James!
James L on 10 July 2015
Ok have loaded the type cataloguye, sorry I totally missed the text file. Works great now. Thankyou!
Ermintrude Bimstore Cow on 10 July 2015
Hi James - thanks for your comment.
This family hasn't been altered at all and is still on Revision 1 - in order to load the alternative family types you need to load the type catalogue as per the user guide provided in the model download. If there's anything else we can help with please let us know!
James L on 10 July 2015
This valve looks as though it was originally very well made, however the current downloadable version of this family appears to have been stripped down to a 1/4" only version, where it appears the original model had family types from 3/8" up to 1 1/2". However a number of the original models components remain, as though someone who didn't know what they were doing was allowed to modify the model and screwed it up.
