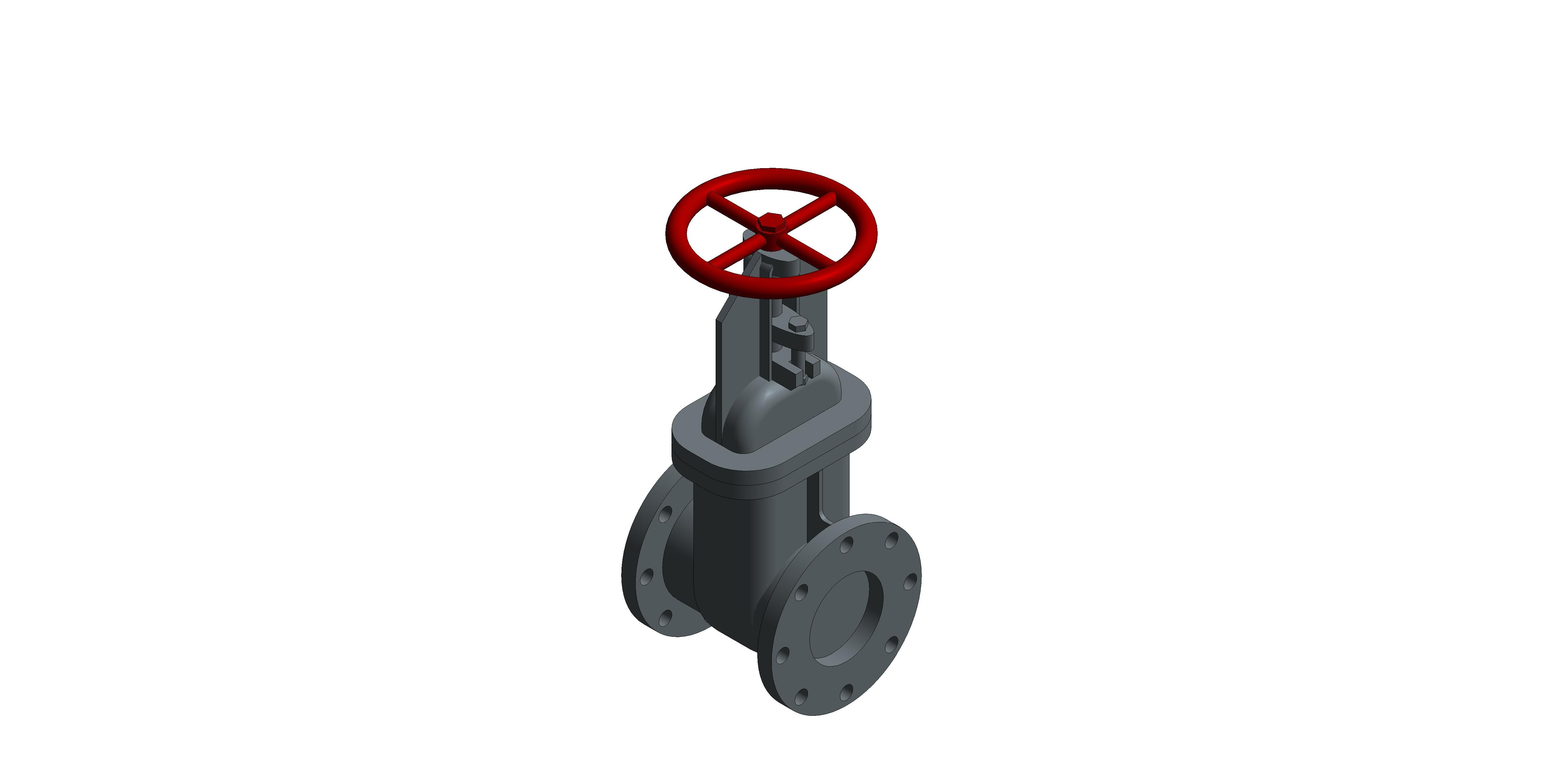

F58 - Gate Valve - Cast Iron

by Crane Fluid Systems

Download Add to collection

Description

F58 - 2" to 12"

Gate Valve - Cast Iron

Class 125 Cast Iron Gate Valve - Bronze Trim

Features & Benefits

Crane cast iron gate valves offer the ultimate in dependable service wherever minimum pressure drop is important
Rising stem gives visual indication of valve open position

Size	2" to 12"
Pressure Rating	Class 125
End Connections	ANSI Class 125
Material	Cast Iron

Object Data

1 Revision

Last Updated

06/10/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

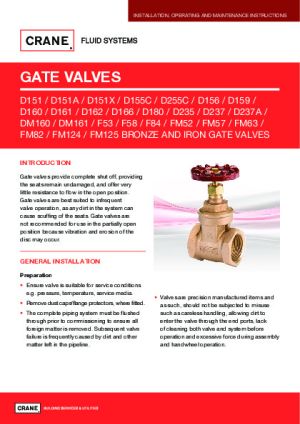

Installation Guide

Maintenance Information

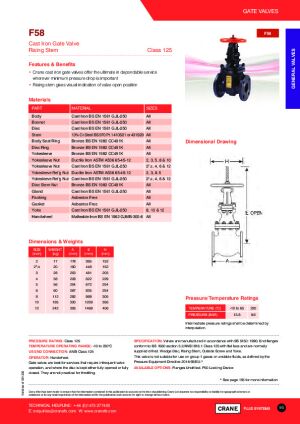

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/crane-fs-f58/document/object-user-guide
12 HolesYes
4 HolesNo
8 HolesNo
A330 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B30 mm
BIM Object NameCraneFS_GateValve_F58
Body Radius130 mm
Body Width270 mm
Bonnet Disk Depth34 mm
Bonnet Gap0 mm
Bonnet Height150 mm
C406 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_96
Code Performancen/a
Colorn/a
Connection Size250 mm
Connection Size Radius125 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2021-08-31T:09:00:00
D922 mm
DescriptionF58 - Gate Valve - Cast Iron
Documentation Certificateswww.bimstore.co/products/crane-fs-f58/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/crane-fs-f58/document/installation-guide
Documentation Literaturewww.bimstore.co/products/crane-fs-f58/document/product-literature
Documentation Maintenancewww.bimstore.co/products/crane-fs-f58/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/crane-fs-f58/document/technical-data-sheet
Duration UnitYear
E1199 mm
End Flange Hole Centres362 mm
End Flange Hole Diameter25 mm
Expected Life0
F258 mm
Featuresn/a
Finishn/a
Fin Side Depth130 mm
Fin Width52 mm
G429 mm
Graden/a
Grease Lubricator Offset491 mm
H356 mm
Handle MaterialCrane - PVC - Maroon
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient7681.73
KeynoteS
Loss MethodK Coefficient
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelF58 - Gate Valve - Cast Iron
Model NumberF58
Model ReferenceF58 - Gate Valve - Cast Iron
NBS DescriptionWaterworks gate valves
NBS Noten/a
NBS Object NameCrane FS - Waterworks gate valves
NBS Office Master Tagn/a
NBS Reference90-10-90/312
Nominal Depth406 mm
Nominal Height1402 mm
Nominal Length330 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Side Fin Height203 mm
Size10"
Spare Partsn/a
Stem Corner Radius57 mm
Stem Height524 mm
Stem Loop Depth286 mm
Stem Loop Width165 mm
Stem Lower Circle Radius143 mm
Stem Offset10 mm
Stem Radius18 mm
Top Of Stem312 mm
Type CommentsF58 - Gate Valve - Cast Iron
Type NameF58 - Gate Valve - Cast Iron
Upper Bonnet Length306 mm
Upper Bonnet Width129 mm
URLwww.cranefs.com/
Valve MaterialCrane - Metal - Cast Iron
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
