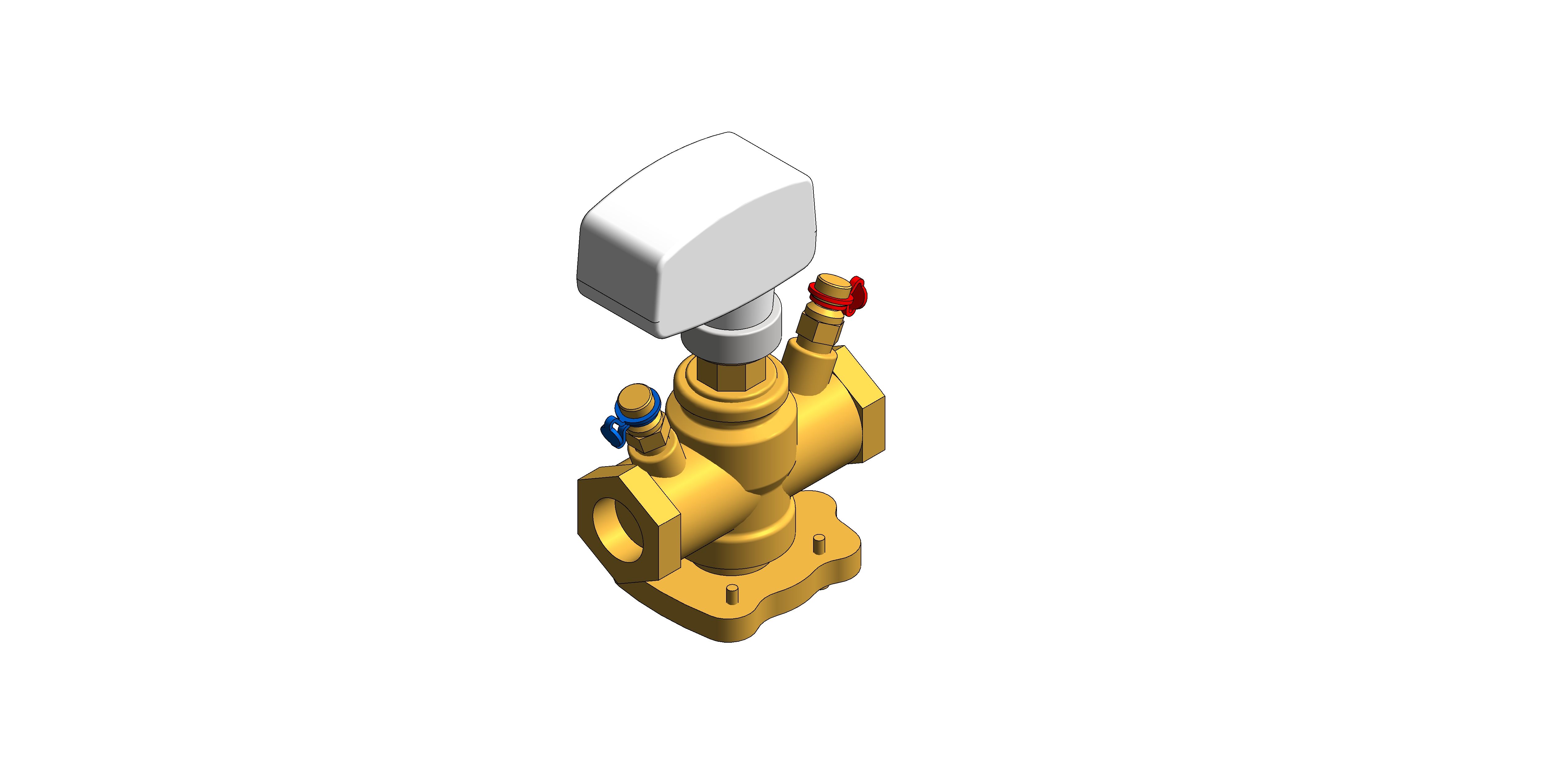

D995 - DN15, DN20, DN25 & DN32

Pressure Independent Control Valve (PICV)



Features & Benefits

  • Comprehensive flow range available, allowing for cost-effective valve selections. The PICV Peak Pro has up to 70% higher max flow compared to the previous model
  • Accurate over a wide ΔP range - available in both 400 and 800kPa variants
  • Class IV leakage
  • PN16 (DN32) & PN25 (DN15, DN20 & DN25) rated products, suitable for high pressure applications
  • Comprehensive testing undertaken for each valve - pressure tested to BS EN 12266-1 and performance tested in accordance with BSRIA BTS01 (10,000 cycles test which is equal to a design life of 15 years)
  • Integral test points for verification of ΔP and valve performance
  • Built in convoluted integral diaphragm
  • Smaller and lighter design suits applications with a small footprint



Size

DN15, DN20, DN25 & DN32

Pressure Rating

DN15 to DN25: PN25
DN32: PN16

Flow Rate

DN15: 0.008 - 0.370l/s
DN20: 0.070 - 0.500l/s
DN25: 0.120 - 1.030l/s
DN32: 0.520 - 1.730l/s

Temperature Rating

0°C to 90°C

End Connections

BSP Female Taper to BS EN 10226-2
