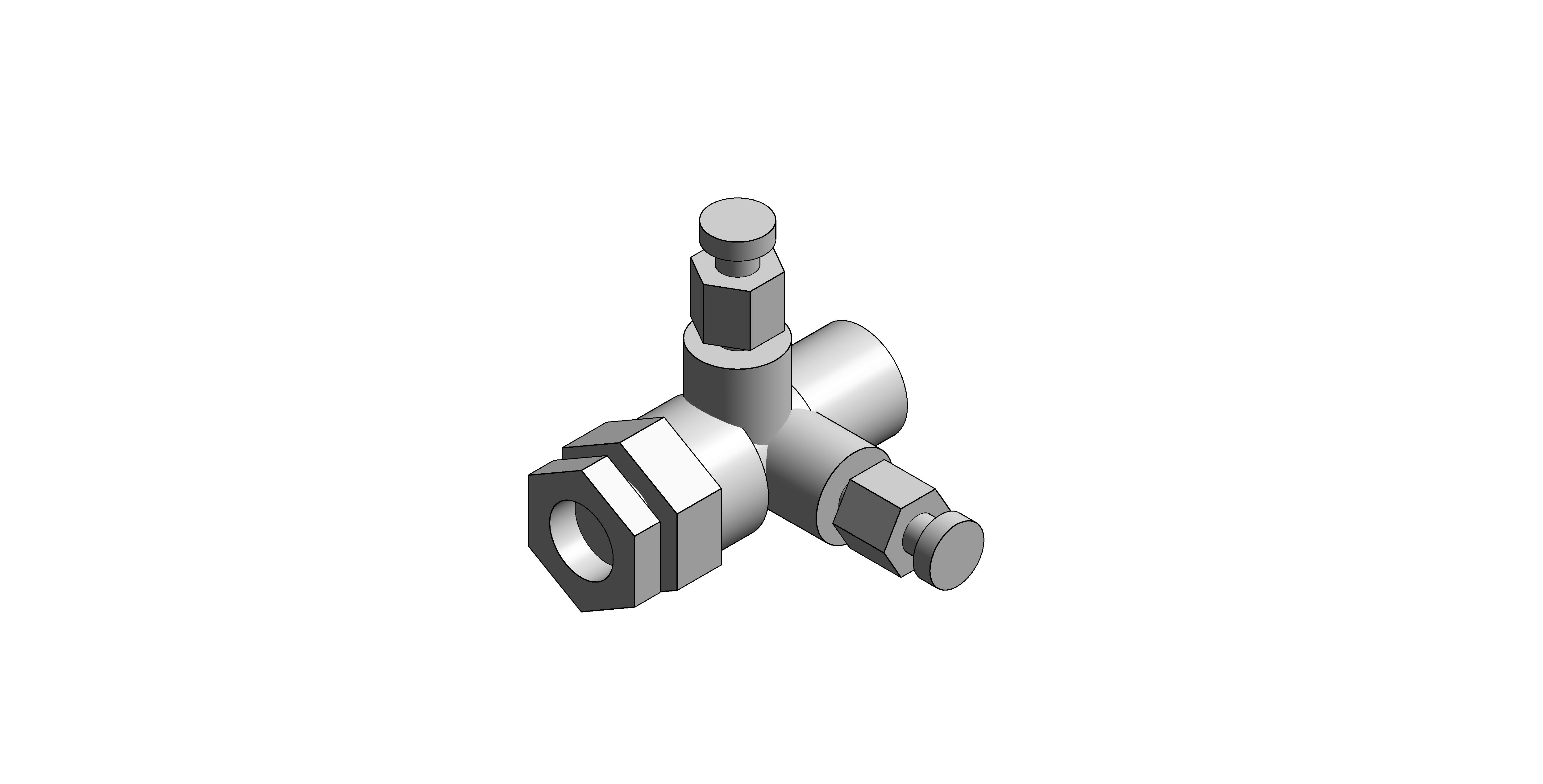

D902 - Ultra Low Flow Measurement Device (FMD) - DZR Copper Alloy

by Crane Fluid Systems

Download Add to collection

Description

D902 - DN15 Only

Ultra Low Flow Measurement Device (FMD) - DZR Copper Alloy

Features & Benefits

D902 Flow Measurement Device (1/2"/15mm size only) is suitable for the measurement of ultra-low flows in the range 0.015 to 0.06 l/sec e.g. flows to fan coil units
Square edged entrance orifice plates with tappings for P84 insertion style test points
Flow measurement accuracy of ±5%

Size	DN15 Only
Pressure Rating	PN25
Temperature Rating	10 - 120°C
End Connections	D902 - Sizes 1/2" Inlet parallel female threads. Outlet - Taper male threads.
Material	DZR Copper Alloy

Object Data

1 Revision

Last Updated

06/10/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Certificates

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/crane-fs-d902/document/object-user-guide
A1mm66 mm
Accessibility Performancen/a
Amm57 mm
Assembly CodeD20
Asset TypeFixed
BIM Object NameCraneFS_MeasurementDevice_UltraLowFlow_D902
Bmm55 mm
Centre Left Length12 mm
Centre Left Radius13 mm
Centre Right Radius11 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_40_16
Code Performancen/a
Colorn/a
Compression Adaptor VisYes
Connection Size15 mm
Connection Size Radius8 mm
Connector Length23 mm
Connector Radius9 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2021-08-31T:09:00:00
DescriptionD902 - Ultra Low Flow Measurement Device (FMD) - DZR Copper Alloy
Documentation Certificateswww.bimstore.co/products/crane-fs-d902/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/crane-fs-d902/document/installation-guide
Documentation Literaturewww.bimstore.co/products/crane-fs-d902/document/product-literature
Documentation Maintenancewww.bimstore.co/products/crane-fs-d902/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/crane-fs-d902/document/technical-data-sheet
Duration UnitYear
End Nut Diameter27 mm
End Nut Thickness10 mm
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.MIXING
K Coefficient0.57
KeynoteS
Left Offset25 mm
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelD902 - Ultra Low Flow Measurement Device (FMD) - DZR Copper Alloy
Model NumberD902
Model ReferenceD902 - Ultra Low Flow Measurement Device (FMD) - DZR Copper Alloy
NBS DescriptionControl valves
NBS Noten/a
NBS Object NameCrane FS - Control valves
NBS Office Master Tagn/a
NBS Reference90-15-40/329
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Right Offset28 mm
Shapen/a
Size1/2" DN15
Spare Partsn/a
Test Point Length24 mm
Threaded Nut Length20 mm
Threaded Nut Radius11 mm
Type CommentsD902 - Ultra Low Flow Measurement Device (FMD) - DZR Copper Alloy
Type NameD902 - Ultra Low Flow Measurement Device (FMD) - DZR Copper Alloy
URLwww.cranefs.com/
Valve MaterialCopper, Alloy
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
