D7 - Globe Valve - Bronze

by Crane Fluid Systems

Download Add to collection

Description

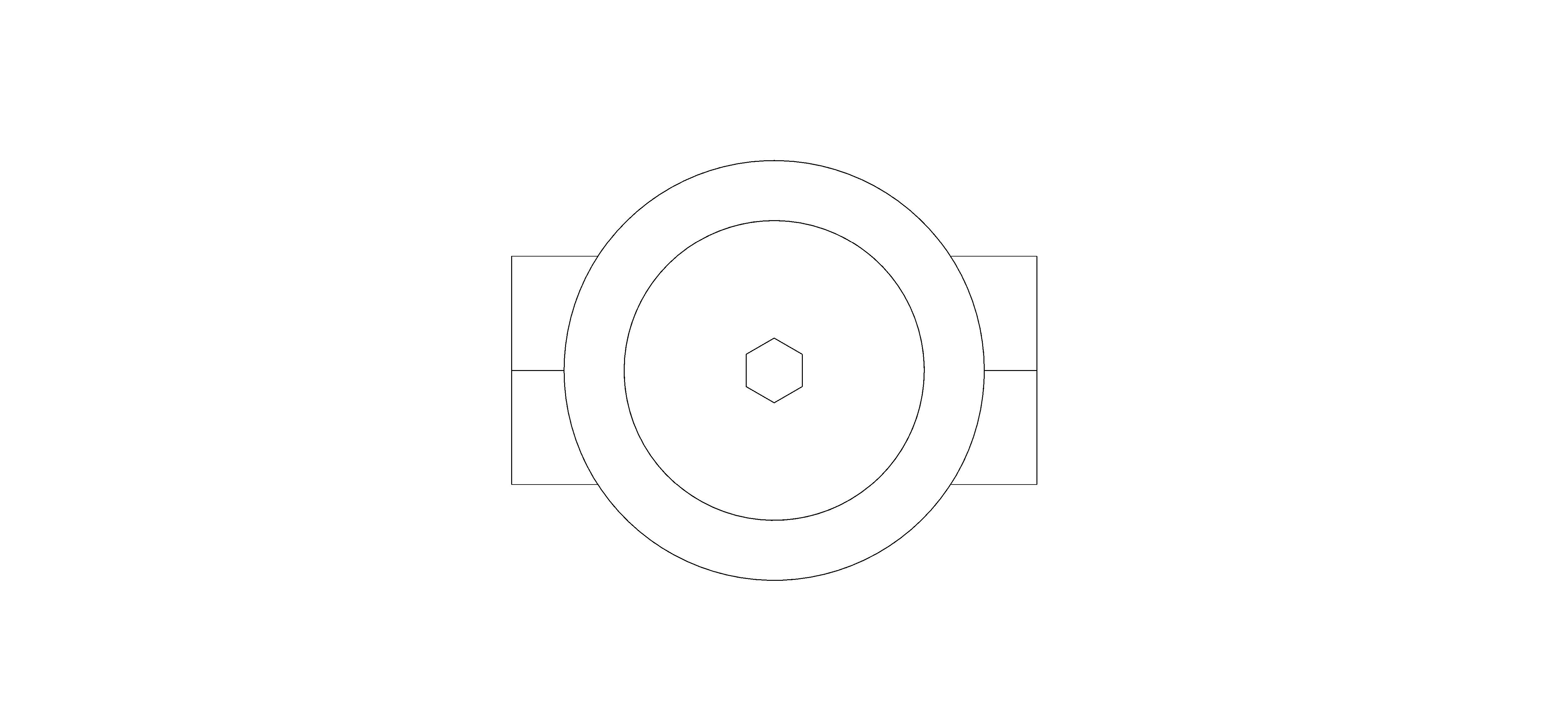

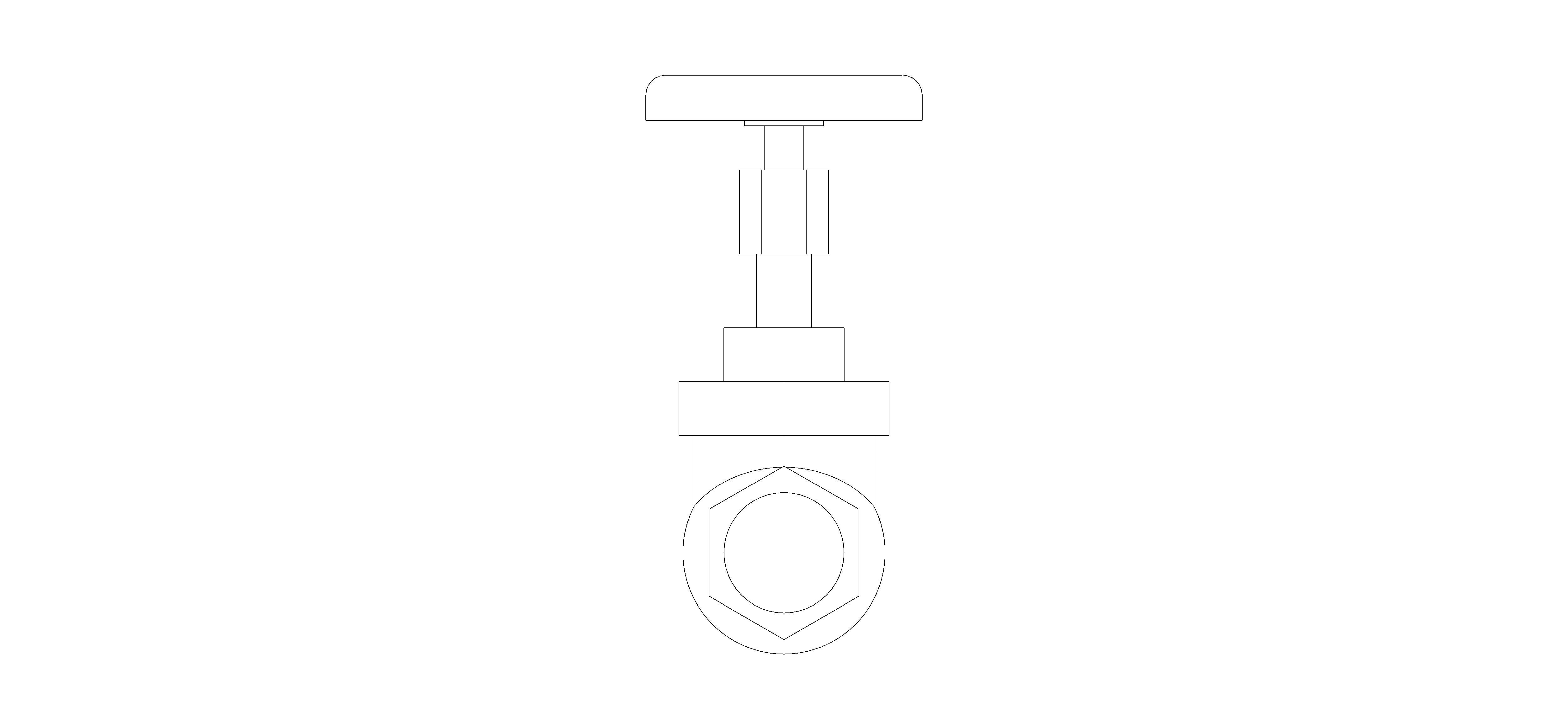

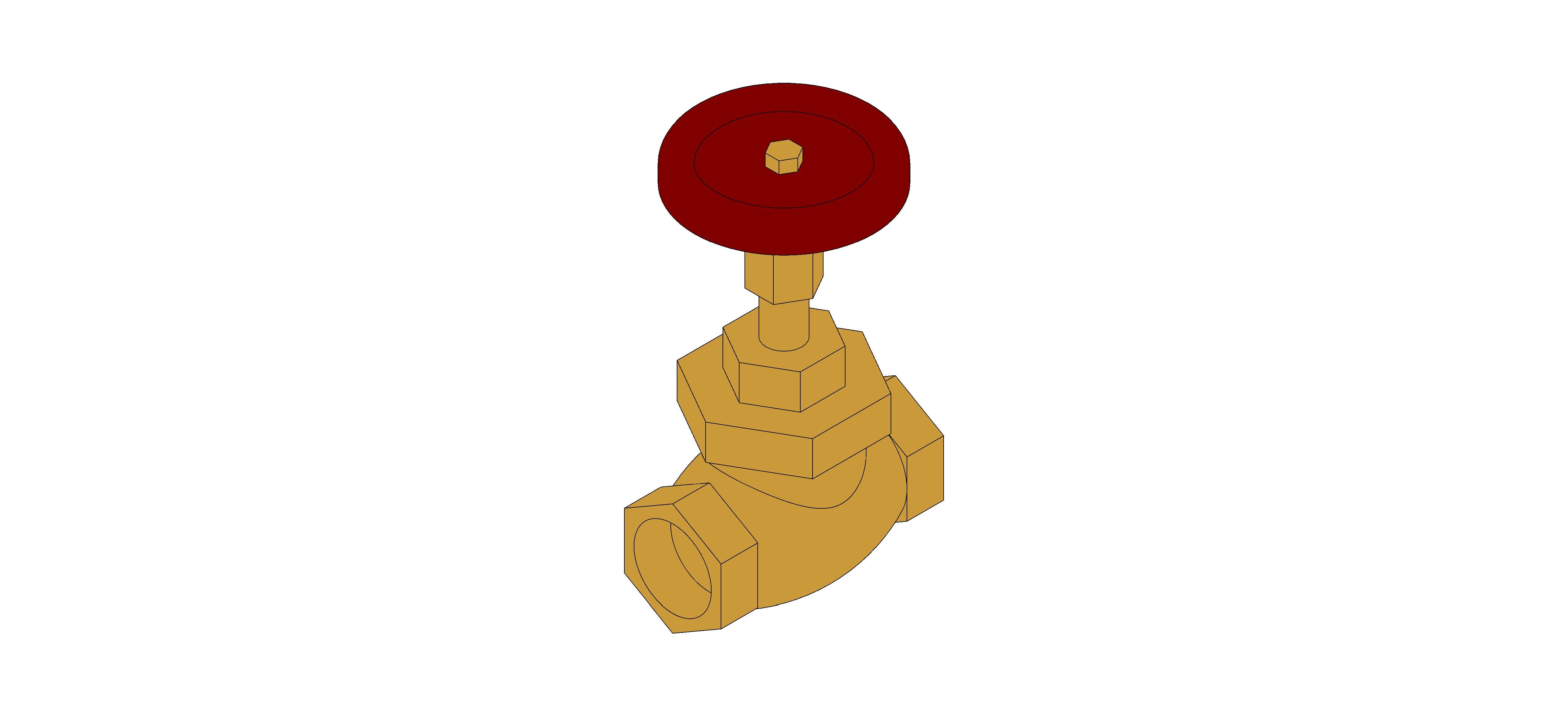

D7 - 1/4" to 3"

Globe Valve - Bronze

Features & Benefits

Crane bronze globe valves are highly efficient for throttling because seat and disc designs provide flow characteristics with proportionate relationships between valve lift and flow rate

Size	1/4" to 3"
Pressure Rating	PN32
End Connections	BS 21 Taper
Material	Bronze

Object Data

1 Revision

Last Updated

13/09/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Installation Guide

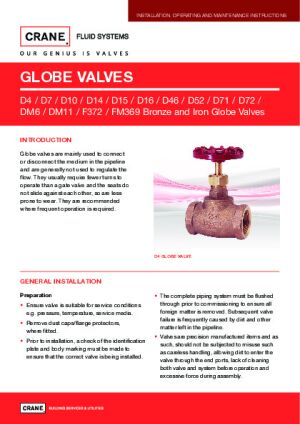

Technical Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/crane-fs-d7/document/object-user-guide
a18.98 mm
A115.00 mm
Accessibility Performancen/a
Assembly CodeD2090800
Asset TypeFixed
b25.00 mm
B159.00 mm
BIM Object NameCraneFS_GlobeValve_D7
BodyBronze BS EN 1982 CC491K
BonnetBronze BS EN 1982 CC491K
Bonnet Studn/a
Bonnet Stud Nutn/a
c90.00 mm
C92.00 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_16
Code Performancen/a
ColorBronze
Connection Radius20.00 mm
Connection Size40.00 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2022-08-01T:09:00:00
d60.00 mm
DescriptionCrane bronze globe valves are highly efficient for throttling because seat and disc designs provide flow characteristics with proportionate relationships between valve lift and flow rate.
DiscPTFE - 25% Glass Filled
Disc HolderBronze BS EN 1982 CC491K
Disc Retaining NutBrass BS EN 12164 CW614N
Disc Stem RingBrass BS EN 12163 CW721R
Documentation Certificateswww.bimstore.co/products/crane-fs-d7/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/crane-fs-d7/document/installation-guide
Documentation Literaturewww.bimstore.co/products/crane-fs-d7/document/product-literature
Documentation Maintenancewww.bimstore.co/products/crane-fs-d7/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/crane-fs-d7/document/technical-data-sheet
Duration UnitYear
e13.14 mm
End Connection(UK)BS 21 Taper
End Connection(US)ANSI B1.20.1
Expected Life0
f50.00 mm
Featuresn/a
Finishn/a
g16.73 mm
Graden/a
h18.40 mm
HandwheelAluminium
Handwheel NutBrass BS EN 12164 CW614N
i57.00 mm
ID PlateAluminium
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
Inch Size1-1/2 Inch
j18.00 mm
k99.50 mm
K Coefficient0
KeynoteS
l28.00 mm
Loss MethodK Coefficient
m40.00 mm
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelD7 Globe Valve - Bronze
Model NumberD7
Model ReferenceD7 Globe Valve - Bronze
n25.76 mm
NBS DescriptionCopper alloy globe valves
NBS Noten/a
NBS Object NameCrane FS - Copper alloy globe valves
NBS Office Master Tagn/a
NBS Reference90-10-90/344
Nominal Depth92.00 mm
Nominal Height184.00 mm
Nominal Length115.00 mm
o70.00 mm
OperatorHandwheel
PackingAsbestos Free
Packing GlandBrass BS EN 12164 CW614N
Packing NutBrass BS EN 12164 CW614N
Pressure RatingPN32
Production Year2022
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size1 1/2" - DN40
Spare Partsn/a
Specification NotesBronze Globe Valve, Rising Stem, Screwed Bonnet, in accordance with BS 5154:1991, PN20 rated. Integral narrow contact angled body seat. Valve Body & Bonnet to Bronze to BS EN 1982 CC491K. Bronze disc on size 2 Inch. Brass Stem and Disc to CW614N. PTFE packing ring complete with Brass packing gland and nut design. BSI Kitemark approved.
StemBrass BS EN 12163 CW721R
Temperature Operating Range-10 to 198°C
Type CommentsD7 Globe Valve - Bronze
Type NameD7 Globe Valve - Bronze
Union RingBrass BS EN 12164 CW617N
URLwww.cranefs.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
WasherBrass BS EN 12164 CW614N
Weight3.32 kg
