D237 - Gate Valve with Lockshield - Bronze

by Crane Fluid Systems

Download Add to collection

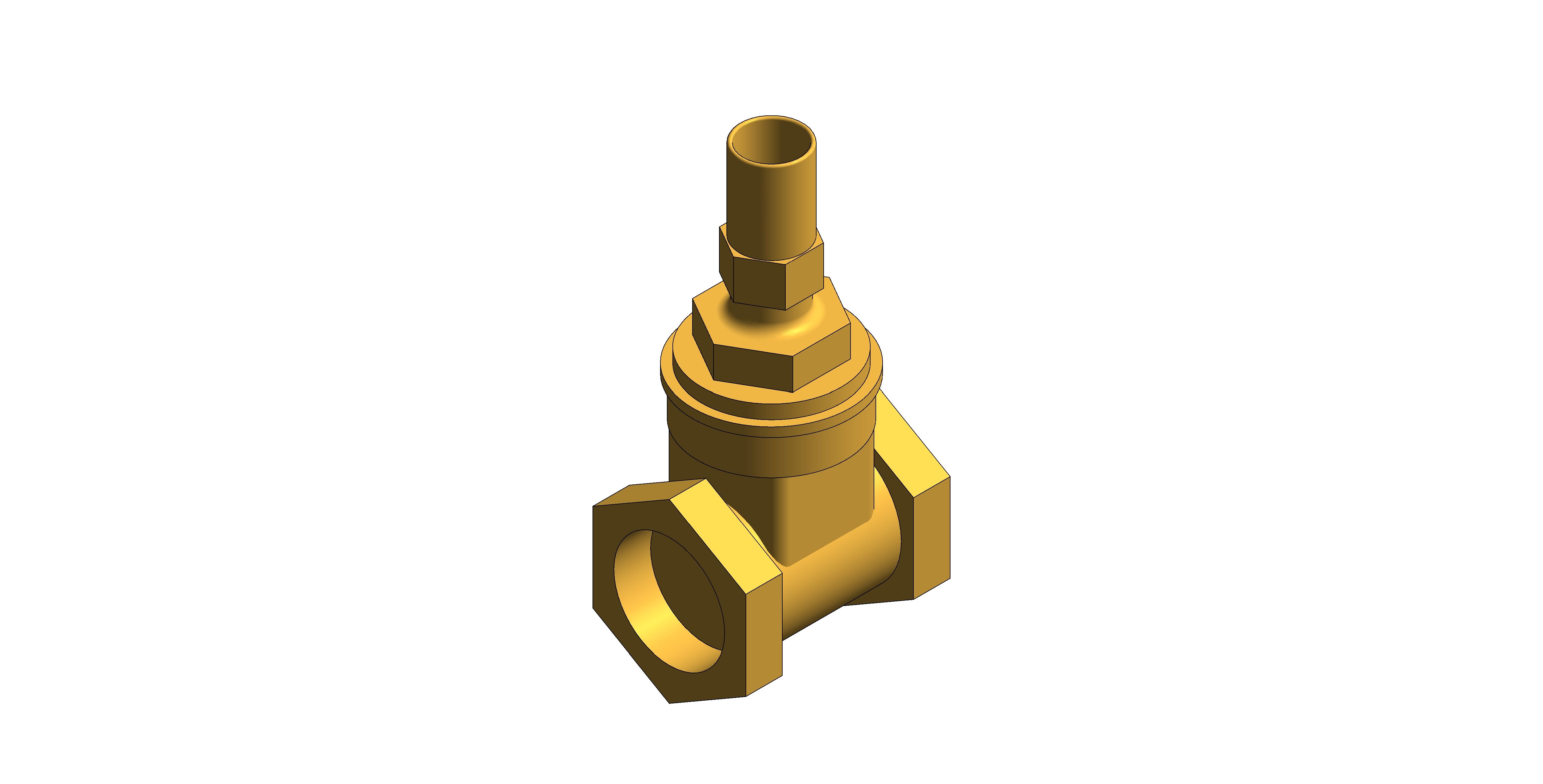

Description

D237 - 1/2" to 3"

Gate Valve with Lockshield - Bronze

PN20 Bronze Gate Valve with Lockshield

Features & Benefits

Crane gate valves offer the ultimate in dependable service wherever minimum pressure drop is important.
The D237 carries the British Standards Institution Kitemark - your assurance of exacting quality standards
WRAS approved

Size	1/2" to 3"
Pressure Rating	PN20
End Connections	Taper threaded to BS EN 10226-2 (ISO 7-1) formerly BS 21
Material	Bronze

Object Data

1 Revision

Last Updated

06/10/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

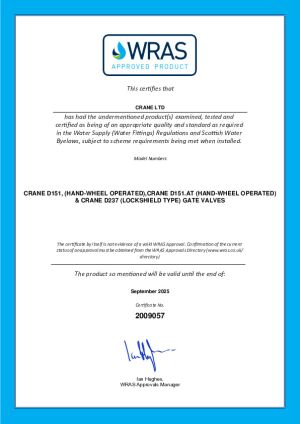

Product Certificates

Installation Guide

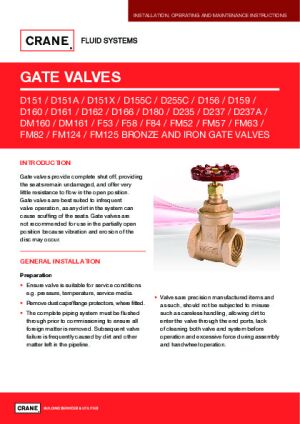

Maintenance Information

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/crane-fs-d237/document/object-user-guide
A78 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B132 mm
BIM Object NameCraneFS_GateValve_WithLockshield_D237
Body Centre Corner Radius5 mm
Body Centre Depth44 mm
Body Centre Width40 mm
Body Radius24 mm
Body Width50 mm
Bonnet Lower Height15 mm
Bonnet Lower Radius28 mm
Bonnet Middle Height4 mm
Bonnet Middle Radius30 mm
Bonnet Upper Height5 mm
Bonnet Upper Radius27 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_96
Code Performancen/a
Colorn/a
Connection Size42 mm
Connection Size Radius21 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2021-08-31T:09:00:00
DescriptionD237 - Gate Valve with Lockshield - Bronze
Documentation Certificateswww.bimstore.co/products/crane-fs-d237/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/crane-fs-d237/document/installation-guide
Documentation Literaturewww.bimstore.co/products/crane-fs-d237/document/product-literature
Documentation Maintenancewww.bimstore.co/products/crane-fs-d237/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/crane-fs-d237/document/technical-data-sheet
Duration UnitYear
End Connector Diameter58 mm
End Connector Thickness14 mm
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient161.93
KeynoteS
Lockshield Height46 mm
Lockshield Hex Height15 mm
Lockshield Hex Radius13 mm
Lockshield Neck Radius12 mm
Loss MethodK Coefficient
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelD237 - Gate Valve with Lockshield - Bronze
Model NumberD237
Model ReferenceD237 - Gate Valve with Lockshield - Bronze
NBS DescriptionWaterworks gate valves
NBS Noten/a
NBS Object NameCrane FS - Waterworks gate valves
NBS Office Master Tagn/a
NBS Reference90-10-90/312
Nominal Depth58 mm
Nominal Height166 mm
Nominal Length78 mm
Packing Ring Height22 mm
Packing Ring Hex Height12 mm
Packing Ring Hex Radius19 mm
Packing Ring Neck Diameter11 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size1 1/2"
Spare Partsn/a
Top Of Stem41 mm
Type CommentsD237 - Gate Valve with Lockshield - Bronze
Type NameD237 - Gate Valve with Lockshield - Bronze
URLwww.cranefs.com/
Valve MaterialCrane - Metal - Bronze
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
