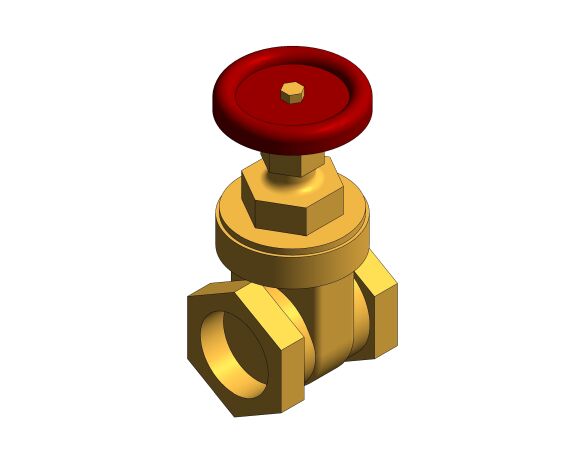

D156 - Gate Valve - Brass

by Crane Fluid Systems

Download Add to collection

Description

D156 - 1/4" to 4"

Gate Valve - Brass

PN16 Brass Gate Valve

Features & Benefits

Crane gate valves offer the ultimate in dependable service wherever minimum pressure drop is important

Size	1/4" to 4"
Pressure Rating	PN16
End Connections	Taper threaded to BS EN 10226-2 (ISO 7-1) formerly BS 21
Material	Brass

Object Data

1 Revision

Last Updated

06/10/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

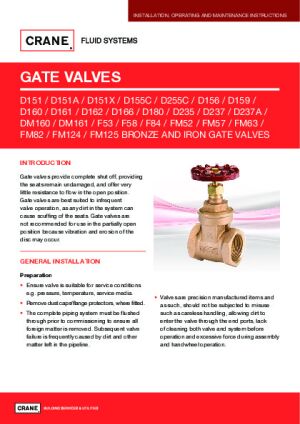

Object User Guide

Installation Guide

Maintenance Information

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/crane-fs-d156/document/object-user-guide
Accessibility Performancen/a
Amm72 mm
Assembly CodeD20
Asset TypeFixed
BIM Object NameCraneFS_GateValve_D156
Bmm125 mm
Body Centre Corner Radius4 mm
Body Centre Depth55 mm
Body Centre Width26 mm
Body Lower Curve Radius27 mm
Body Radius26 mm
Body Width44 mm
Bonnet Lower Radius34 mm
Bonnet Lower Thickness17 mm
Bonnet Upper Radius32 mm
Bonnet Upper Thickness3 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_96
Cmm70 mm
Code Performancen/a
Colorn/a
Connection Size42 mm
Connection Size Radius21 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2021-08-31T:09:00:00
DescriptionD156 - Gate Valve - Brass
Documentation Certificateswww.bimstore.co/products/crane-fs-d156/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/crane-fs-d156/document/installation-guide
Documentation Literaturewww.bimstore.co/products/crane-fs-d156/document/product-literature
Documentation Maintenancewww.bimstore.co/products/crane-fs-d156/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/crane-fs-d156/document/technical-data-sheet
Duration UnitYear
End Connector Diameter58 mm
End Connector Thickness14 mm
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Handwheel Depth13 mm
Handwheel MaterialPVC, Maroon
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient161.93
KeynoteS
Loss MethodK Coefficient
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelD156 - Gate Valve - Brass
Model NumberD156
Model ReferenceD156 - Gate Valve - Brass
NBS DescriptionWaterworks gate valves
NBS Noten/a
NBS Object NameCrane FS - Waterworks gate valves
NBS Office Master Tagn/a
NBS Reference90-10-90/312
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Packing Nut Diameter25 mm
Packing Nut Height15 mm
Packing Ring Diameter40 mm
Packing Ring Height15 mm
Packing Ring Neck Diameter10 mm
Packing Ring Neck Height10 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size1 1/2"
Spare Partsn/a
Stem Diameter5 mm
Stem Height10 mm
Top Of Stem41 mm
Type CommentsD156 - Gate Valve - Brass
Type NameD156 - Gate Valve - Brass
URLwww.cranefs.com/
Valve MaterialBrass, Soft Yellow
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
