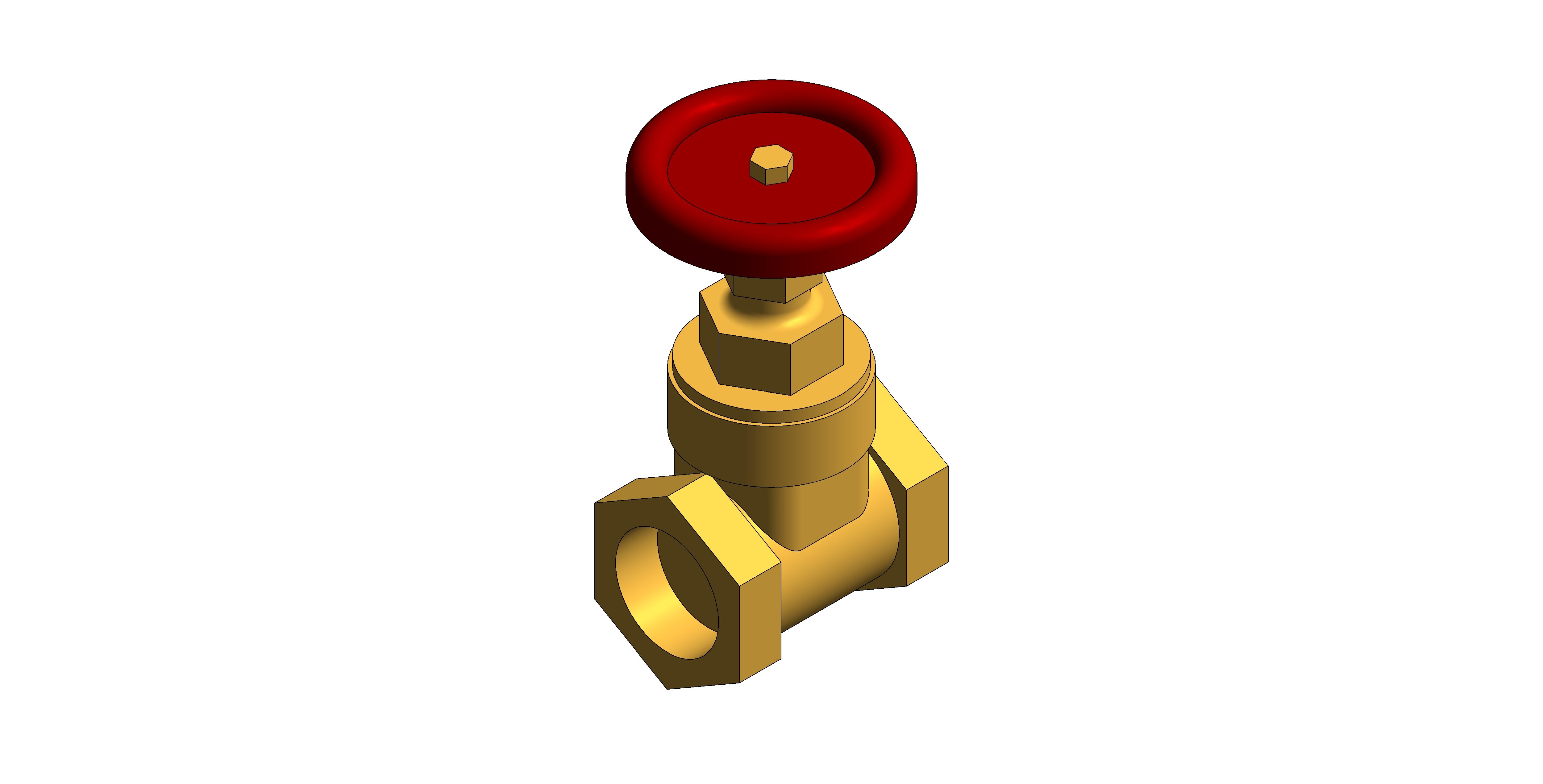

D151 - Gate Valve - Bronze

by Crane Fluid Systems

Download Add to collection

Description

D151 - 1/4" to 4"

Gate Valve - Bronze

PN20 Bronze Gate Valve

Features & Benefits

Crane gate valves offer the ultimate in dependable service wherever minimum pressure drop is important
The D151 carries the British Standards Institution kitemark - your assurance of exacting quality standards
WRAS approved for use on wholesome (potable) water in sizes 1/2"-2" only

Size	1/4" to 4"
Pressure Rating	PN20
End Connections	Taper threaded to BS EN 10226-2 (ISO 7-1) formerly BS 21
Material	Bronze

Object Data

1 Revision

Last Updated

06/10/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

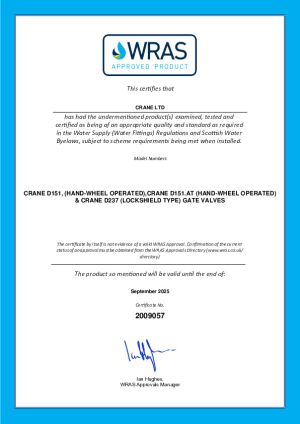

Product Certificates

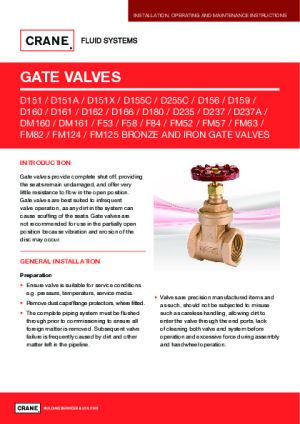

Installation Guide

Maintenance Information

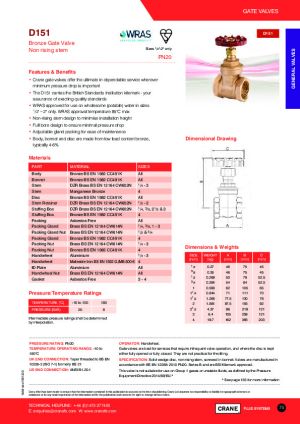

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/crane-fs-d151/document/object-user-guide
A78 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B130 mm
BIM Object NameCraneFS_GateValve_D151
Body Radius26 mm
Body Width49 mm
Bonnet Lower Radius30 mm
Bonnet Lower Thickness17 mm
Bonnet Upper Radius29 mm
Bonnet Upper Thickness3 mm
C78 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_96
Code Performancen/a
Colorn/a
Connection Size42 mm
Connection Size Radius21 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2021-08-31T:09:00:00
DescriptionD151 - Gate Valve - Bronze
Documentation Certificateswww.bimstore.co/products/crane-fs-d151/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/crane-fs-d151/document/installation-guide
Documentation Literaturewww.bimstore.co/products/crane-fs-d151/document/product-literature
Documentation Maintenancewww.bimstore.co/products/crane-fs-d151/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/crane-fs-d151/document/technical-data-sheet
Duration UnitYear
End Connector Diameter58 mm
End Connector Thickness14 mm
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Handwheel MaterialCrane - PVC - Maroon
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient161.93
KeynoteS
Loss MethodK Coefficient
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelD151 - Gate Valve - Bronze
Model NumberD151
Model ReferenceD151 - Gate Valve - Bronze
NBS DescriptionWaterworks gate valves
NBS Noten/a
NBS Object NameCrane FS - Waterworks gate valves
NBS Office Master Tagn/a
NBS Reference90-10-90/312
Nominal Depth78 mm
Nominal Height164 mm
Nominal Length78 mm
Packing Nut Diameter25 mm
Packing Nut Height15 mm
Packing Ring Diameter37 mm
Packing Ring Height15 mm
Packing Ring Neck Diameter11 mm
Packing Ring Neck Height14 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size1 1/2"
Spare Partsn/a
Stem Corner Radius11 mm
Stem Diameter5 mm
Stem Height14 mm
Stem Loop43 mm
Stem Loop Width23 mm
Top Of Stem38 mm
Type CommentsD151 - Gate Valve - Bronze
Type NameD151 - Gate Valve - Bronze
URLwww.cranefs.com/
Valve MaterialCrane - Metal - Brass
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
