Nickel Plated Brass Ball Valve, MUxF [00/2039]

by Valves Instruments Plus

Download Add to collection

Description

Nickel Plated Brass Full Bore Ball Valve, Male Union x BSP Female Ends, Lever Operated.

Object Data

1 Revision

Last Updated

16/06/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

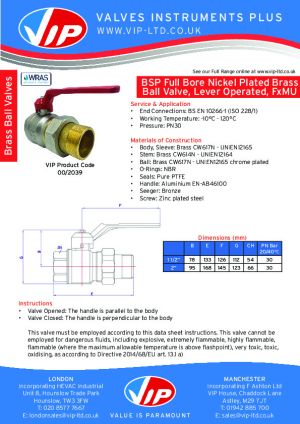

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAdam Grant
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version0
_Created ByAdam Grant
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/d2ae939a-d334-4cf9-bd0b-5fe3ebed5fda/document/object-user-guide
Accessibility Performancen/a
AF54 mm
AF264 mm
Assembly CodeD42
Asset TypeFixed
B78 mm
BIM Object NameVIP_BRASS_BALL_VALVE_FxUNION_(00/2039)
Centre Height10 mm
Centre Width19 mm
Classification NameUniclass 2024
Classification ValuePR_65_54_95_06
Code Performancen/a
ColorSilver, Yellow & Red
Constituentsn/a
Created Bysales@vip-ltd.co.uk
Created On2025-06-09T09:00:00
Default Elevation0 mm
DescriptionLever Operated Ball Valve Female x Union
Documentation Certificateswww.bimstore.co/products/d2ae939a-d334-4cf9-bd0b-5fe3ebed5fda/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/d2ae939a-d334-4cf9-bd0b-5fe3ebed5fda/document/installation-guide
Documentation Literaturewww.bimstore.co/products/d2ae939a-d334-4cf9-bd0b-5fe3ebed5fda/document/product-literature
Documentation Maintenancewww.bimstore.co/products/d2ae939a-d334-4cf9-bd0b-5fe3ebed5fda/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/d2ae939a-d334-4cf9-bd0b-5fe3ebed5fda/document/technical-data-sheet
Duration UnitYears
E133 mm
Expected Life0
F126 mm
Featuresn/a
Finishn/a
Graden/a
KeynoteS
L119 mm
L232 mm
L322 mm
L48 mm
ManufacturerVIP
Manufacturer NameVIP
Max Working Pressure20 Bar at 20°C
ModelLever Operated Ball Valve
Model Number00/2039/042
Model ReferenceBall Valves
NBS Descriptionn/a
NBS Noten/a
NBS Object Namen/a
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Diameter42 mm
Offset4 mm
Offset 228 mm
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN42
Spare Partssales@vip-ltd.co.uk
ThreadsISO 228
Type Comments00/2039/042
Type NameDN42
URLwww.vip-ltd.co.uk/Valves/VIP_Brass_Ball_Valves/00_2039/
Valve Body Width71 mm
Valve Body Width 248 mm
VIP - Brass Valve BodyVIP - Brass Valve Body
VIP - Valve BodyVIP - Nickel Plated Brass
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@vip-ltd.co.uk
Warranty Guarantor Partssales@vip-ltd.co.uk
Working Temperature-10°C to 120°C
WRAS ApprovedYes

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
