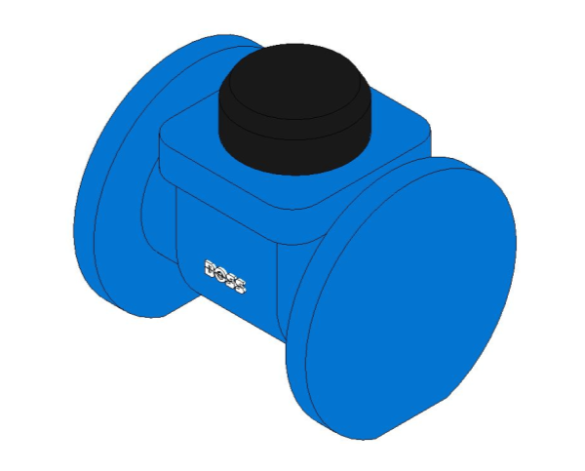

Woltmann Water Meter - 38CMWF

Download Add to collection

Description

BOSS Waltmann Water Meter 38 CMWF

Object Data

1 Revision

Last Updated

28/01/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_Authorwww.alusservices.co.uk
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.alusservices.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility PerformanceN/A
AirNo
ApplicationWoltmann Water Meter
ApprovalN/A
Assembly CodeD2020100
Asset TypeFixed
BIM Object NameBOSS_PipeAccessories_WoltmannWaterMeter_38CMWF
BodyEpoxy powder coated ductile iron body
Classification NameUniclass2015
Classification ValuePr_80_51_51_97
Code PerformanceN/A
ColorBlue
ConnectionBS 4505 PN16 flanged
ConstituentsN/A
Created Byenquiries@bssgroup.com
Created On2019-08-27 T09:00:00
DescriptionBOSS Waltmann Water Meter 38 CMWF
Documentation CertificatesN/A
Documentation Installation GuideN/A
Documentation LiteratureN/A
Documentation MaintenanceN/A
Documentation TechnicalN/A
Duration Unityears
EAN CodeN/A
Expected Life0
FeaturesWoltmann Helix design. MID approved for horizontal and vertical installation. Dry dial. Quiet operation. 360° rotating dial.
FinishBlue Powder Coat
Flange Cut72 mm
Flange Dia165 mm
Flow Range LPHN/A
Flow Range LPSN/A
Gas CombustibleYes
Gas CorrosiveNo
Gas InertNo
Gas OxygenNo
GPID Code1009956373
GradeN/A
H157 mm
H274 mm
H3115 mm
Ifc Export AsIfcFlowMeterType.WATERMETER
Ifc Export TypeIfcFlowMeterType
K Coefficient0
K Coefficient TableBall Valve Full Port Full Open
KeynoteS
L1100 mm
L219 mm
L3108 mm
L4130 mm
L590 mm
L690 mm
L745 mm
Loss MethodNot Defined
ManufacturerBSS BOSS Products
Manufacturer NameBSS BOSS Products
MaterialEpoxy powder coated ductile iron body
Maximum Flow30 m³/h
Maximum Working Pressure5 Bar
Maximum Working Temperature120°C
Minimum Flow0.6 l/h
ModelBOSS Waltmann Water Meter 38 CMWF DN50
Model Number38400494
Model ReferenceBOSS Waltmann Water Meter 38 CMWF DN50
NBS DescriptionWater meters
NBS Object NameBSS BOSS Products -Water meters
NBS Office Master TagN/A
NBS Reference90-65-55/470
Nominal Depth185 mm
Nominal Dia50 mm
Nominal Flow15 m³/h
Nominal Height186 mm
Nominal Length200 mm
Nominal Width200 mm
OilNo
Pressure DropN/A
Production Year2019
Pulse Value100 l
R251 mm
R340 mm
Referenced StandardN/A
Replacement CostN/A
ShapeCylindrical
SizeDN50
Spare PartsBOSS Technical Team Tel 0116 245 5940
Start Flow0.15 l
SteamNo
Sym Ext36 mm
Trans Flow1.5 l/h
Tubing OptionsN/A
Type CommentsBOSS Waltmann Water Meter 38 CMWF DN50
Type NameBOSS Waltmann Water Meter 38 CMWF DN50
URLwww.bssindustrial.co.uk/products/valves-and-filtration
Warranty DescriptionN/A
Warranty Duration Labor0
Warranty Duration Parts1
Warranty Duration Unityears
Warranty Guarantor Laborenquiries@bssgroup.com
Warranty Guarantor Partsenquiries@bssgroup.com
WaterYes
Weight9.9 Kg

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
