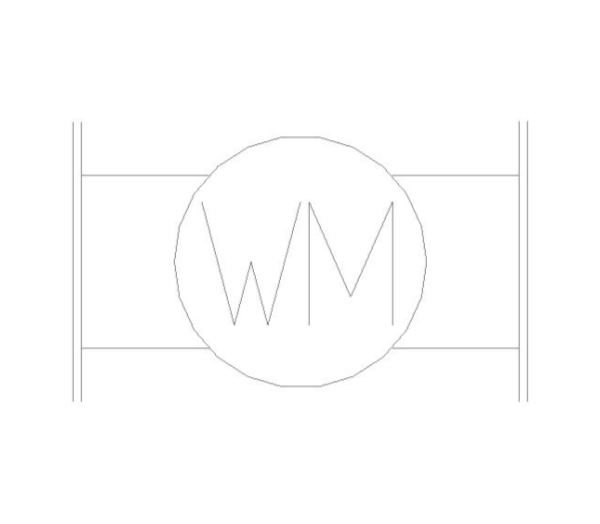

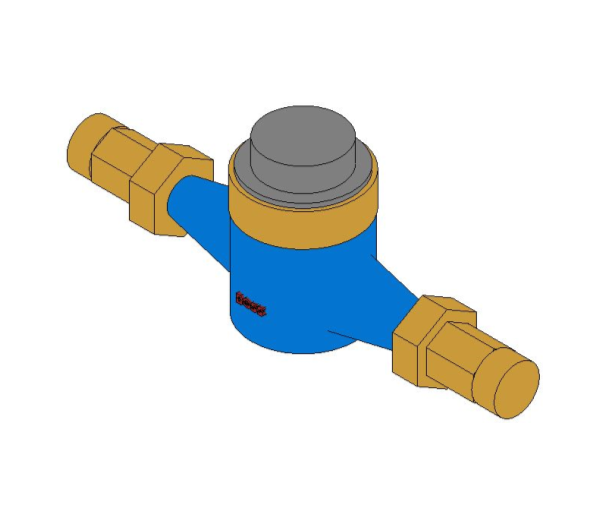

Multi Jet Water Meter FIG 38

Download Add to collection

Description

Multi Jet Water Meter - 38

Object Data

1 Revision

Last Updated

15/10/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_Authorwww.alusservices.co.uk
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.alusservices.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility PerformanceN/A
AirNo
ApplicationMulti-Jet Water Meters
ApprovalWRAS approved.
Assembly CodeD2020100
Asset TypeFixed
BIM Object NameBOSS_PipeAccessories_MultiJetWaterMeter_38
BodyDZR brass
Body Bottom80 mm
Body ColourMetal -BOSS - Blue Finish
Body SizeYes
Body Top90 mm
Body Width64 mm
Box Body Depth137 mm
Box Body Len109 mm
Classification NameUniclass2015
Classification ValuePr_80_51_51_97
Code PerformanceN/A
ColorBrass
Connection1.1/4" BSPT (BS21:1985 Taper)
ConstituentsN/A
ControllerNo
Created Byenquiries@bssgroup.com
Created On2019-08-17 T09:00:00
D270 mm
D330 mm
DescriptionBOSS Multi-Jet Water Meters 38 CM DN32 Cold
Dn 5 RedNo
Documentation CertificatesN/A
Documentation Installation GuideN/A
Documentation LiteratureN/A
Documentation MaintenanceN/A
Documentation TechnicalN/A
Duration Unityears
EAN CodeN/A
Expected Life0
FeaturesMulti-Jet design. MID approved for horizontal and vertical installation. Dry dial. Comes with an integral strainer. Quiet operation. 360° rotating dial. Minimum reading of 0.1 litres.
FinishBrass
Flow Range LPHN/A
Flow Range LPSN/A
Gas CombustibleNo
Gas CorrosiveNo
Gas InertNo
Gas OxygenNo
GPID Code1009956377
GradeN/A
H135 mm
H246 mm
H375 mm
H479 mm
H5100 mm
H6109 mm
H7110 mm
Ifc Export AsIfcFlowMeterType.WATERMETER
Ifc Export TypeIfcFlowMeterType
K Coefficient0
K Coefficient TableBasket Strainer
KeynoteS
L1190 mm
L2170 mm
L3128 mm
L4106 mm
L554 mm
Logo Pos47 mm
Loss MethodNot Defined
Main BodyYes
ManufacturerBSS BOSS Products
Manufacturer NameBSS BOSS Products
MaterialDZR Brass Body
Maximum Flow12.5 m³/h
Maximum Working Pressure16 Bar
Maximum Working Temperature30°C
Minimum Flow100 l/h
ModelBOSS Multi-Jet Water Meters 38 CM DN32 Cold
Model Number38400450
Model ReferenceBOSS Multi-Jet Water Meters 38 CM DN32 Cold
NBS DescriptionWater meters
NBS Object NameBSS BOSS Products -Water meters
NBS Office Master TagN/A
NBS Reference90-65-55/470
Nominal Depth96 mm
Nominal Dia40 mm
Nominal Flow10 m³/h
Nominal Height135 mm
Nominal Length380 mm
Nominal Width380 mm
Nut AF53 mm
OilNo
Pressure DropN/A
Production Year2019
Pulse Value10 l
R146 mm
R231 mm
R347 mm
R433 mm
R544 mm
Referenced StandardN/A
Replacement CostN/A
ShapeCylindrical
SizeDN15
Spare PartsBOSS Technical Team Tel 0116 245 5940
Spigot Hex37 mm
Start Flow10 l
SteamNo
Thread Pos12 mm
Through Dim30 mm
Top Flange117 mm
Trans Flow160 l/h
Tubing OptionsN/A
Type CommentsBOSS Multi-Jet Water Meters 38 CM DN32 Cold
Type NameBOSS Multi-Jet Water Meters 38 CM DN32 Cold
URLwww.bssindustrial.co.uk/products/valves-and-filtration
Valve CoverPlastic - BSS - Black
Valve Top<By Category>
Warranty DescriptionN/A
Warranty Duration Labor0
Warranty Duration Parts1
Warranty Duration Unityears
Warranty Guarantor Laborenquiries@bssgroup.com
Warranty Guarantor Partsenquiries@bssgroup.com
WaterYes
Weight0.137

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
