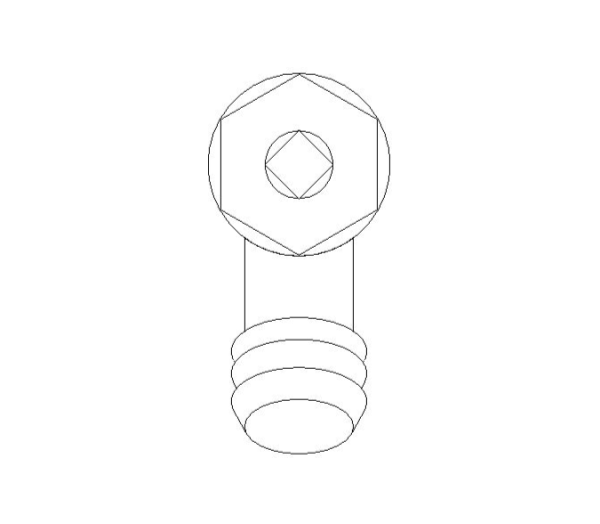

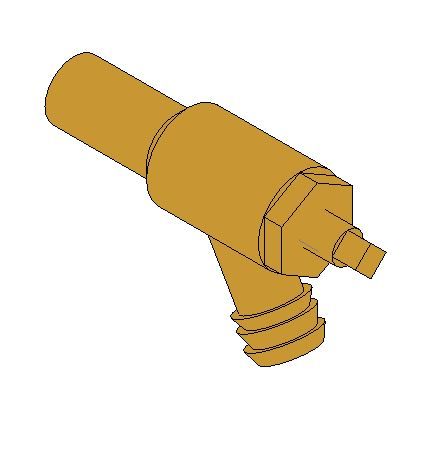

DZR Brass Drain Tap – FIG 372 BS 2879-2 [Extended Drain Cock]

Download Add to collection

Description

DZR BRASS DRAIN TAP

Object Data

1 Revision

Last Updated

10/09/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_Authorwww.alusservices.co.uk
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.alusservices.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility PerformanceN/A
Across Corners8 mm
AirNo
Angle60.00 °
ApplicationExtended Drain Cock
ApprovalWRAS approved.
Assembly CodeD2020
Asset TypeFixed
BIM Object NameBOSS_PipeAccessories_DrainingTaps_372
BodyBrass DZR CW602N
Cap Seal MaterialRubber NBR
Classification NameUniclass2015
Classification ValuePr_65_54_95_27
Code PerformanceN/A
ColorBrass
ConnectionN/A
ConstituentsN/A
Created Byenquiries@bssgroup.com
Created On2019-06-17 T09:00:00
D115 mm
D1 S8 mm
D222 mm
D69 mm
DescriptionDZR BRASS DRAIN TAP
Documentation CertificatesN/A
Documentation Installation GuideN/A
Documentation LiteratureN/A
Documentation MaintenanceN/A
Documentation TechnicalN/A
Duration Unityears
EAN Code0
Expected Life0
FeaturesExtended Male End
FinishBrass
Flow Range LPHN/A
Flow Range LPSN/A
Gas CombustibleNo
Gas CorrosiveNo
Gas InertNo
Gas OxygenNo
Gland Nut MaterialBrass
GPID Code1009958202
GradeN/A
HW117 mm
HW313 mm
Ifc Export AsIfcValveType.DRAWOFFCOCK
Ifc Export TypeIfcValveType
K Coefficient0
K Coefficient TableSwing Check Valve Threaded
KeynoteS
L177 mm
L26 mm
L39 mm
L434 mm
L536 mm
Loss MethodNot Defined
ManufacturerBSS BOSS Products
Manufacturer NameBSS BOSS Products
MaterialDZR Brass Body
Maximum Working Pressure16bar
Maximum Working Temperature85°C
Model15mm DZR Brass Drain Tap 372 BS 2879-2
Model Number27200107
Model Reference15mm DZR Brass Drain Tap 372 BS 2879-2
NBS DescriptionDraining taps
NBS Object NameBSS BOSS Products - Draining taps
NBS Office Master TagN/A
NBS Reference90-10-90/374
Nominal Depth22 mm
Nominal Diameter15 mm
Nominal Height45 mm
Nominal Length77 mm
Nominal Width77 mm
OilNo
Pressure DropN/A
Production Year2019
Referenced StandardN/A
Replacement CostN/A
ShapeCylindrical
Size15mm
Spare PartsBOSS Technical Team Tel 0116 245 5940
Spindle MaterialBrass
SteamNo
Stem O Ring MaterialRubber NBR
Tubing OptionsN/A
Type Comments15mm DZR Brass Drain Tap 372 BS 2879-2
Type Name15mm DZR Brass Drain Tap 372 BS 2879-2
URLwww.bssindustrial.co.uk/products/valves-and-filtration
Warranty DescriptionN/A
Warranty Duration Labor0
Warranty Duration Parts1
Warranty Duration Unityears
Warranty Guarantor Laborenquiries@bssgroup.com
Warranty Guarantor Partsenquiries@bssgroup.com
Washer MaterialRubber NBR
WaterYes
Weight0.120

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
