Brass Screwed - Solid Square Head Plug

Download Add to collection

Description

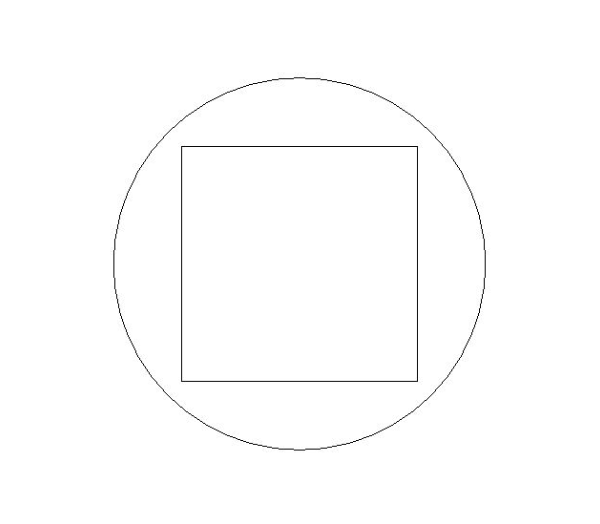

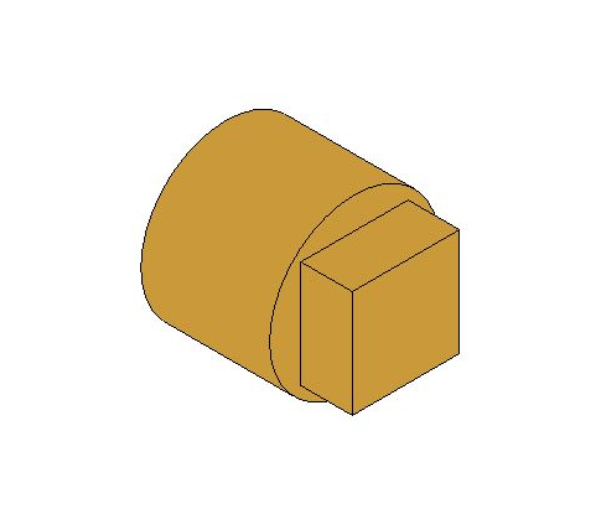

Brass Screwed Solid Square Head Plug

Object Data

1 Revision

Last Updated

10/02/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_Authorwww.alusservices.co.uk
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.alusservices.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility PerformanceN/A
AF113 mm
AirNo
ApplicationScrewed Solid Square Head Plug
ApprovalN/A
Assembly CodeD2090800
Asset TypeFixed
BIM Object NameBOSS_PipeFittings_ThreadedBrass_SolidSquareHeadPlug
BodyCZ121
Classification NameUniclass2015
Classification ValuePr_65_52_63_18
Code PerformanceN/A
ColorDZR
ConnectionB.S.P.
ConstituentsN/A
Created Byenquiries@bssgroup.com
Created On23-01-2019 T09:00:00
D120 mm
DescriptionBOSS Brass Screwed Solid Square Head Plug 1/2"
Documentation CertificatesN/A
Documentation Installation GuideN/A
Documentation LiteratureN/A
Documentation MaintenanceN/A
Documentation TechnicalN/A
Duration Unityears
EAN CodeN/A
Expected Life0
FeaturesFittings constructed from extruded brass bar conforming to BS2874 CZ121 (CW614N).Threads conform to BS1256 design, having BS21 parallel internal and taper external pipe threads.
FinishDZR
Gas CombustibleYes
Gas CorrosiveNo
Gas InertNo
Gas OxygenNo
GPID CodeN/A
GradeN/A
Ifc Export AsIfcPipeFittingType.CONNECTOR
Ifc Export TypeIfcPipeFittingType
K Coefficient0
K Coefficient TableReducer/Coupling/Union/Increaser
KeynoteS
L115 mm
L26 mm
Loss MethodNot Defined
ManufacturerBSS BOSS Products
Manufacturer NameBSS BOSS Products
MaterialDZR
Maximum Working Pressure16 Bar
Maximum Working Temperature225°C
ModelBOSS Brass Screwed Solid Square Head Plug 1/2"
Model Number24014505
Model ReferenceBOSS Brass Screwed Solid Square Head Plug 1/2"
NBS DescriptionCopper pipeline fittings
NBS Object NameBSS BOSS Products -Copper pipeline fittings
NBS Office Master TagN/A
NBS Reference90-10-65/315
Nominal Depth20 mm
Nominal Height20 mm
Nominal Length21 mm
Nominal Width21 mm
OilNo
Pressure DropN/A
Production Year2020
Referenced StandardN/A
Replacement CostN/A
ShapeCylindrical
Size1/2"
Spare PartsBOSS Technical Team Tel 0116 245 5940
SteamYes
Thread 1 Pos7 mm
Tubing OptionsN/A
Type CommentsBOSS Brass Screwed Solid Square Head Plug
Type NameBOSS Brass Screwed Solid Square Head Plug
URLwww.bssindustrial.co.uk/products/boss
Warranty DescriptionN/A
Warranty Duration Labor0
Warranty Duration Parts1
Warranty Duration Unityears
Warranty Guarantor Laborenquiries@bssgroup.com
Warranty Guarantor Partsenquiries@bssgroup.com
WaterYes
WeightN/A

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
