Billi Sahara with XT Touch Dispenser

by Billi

Download Add to collection

Description

The Sahara 360 Boiling and Ambient drinking water system is a mid-range commercial capacity system, but still maintains Billi’s core design principles of space saving while requiring no joinery ventilation.

Offering both boiling temperature water and a bottomless supply of filtered ambient temperature water, the Sahara range is convenient and functional.

The XT touch dispenser is an innovative, contemporary design, which has a top operating panel offering a sophisticated and clean style.

Dispenser design	XT Touch
Capacity	Up to 60 Persons
Underbench Size	340mm h x 180mm w x 460mm d
Product Code	943060T
Water Combination	Boiling \| Still

Object Data

1 Revision

Last Updated

15/08/2025

Available Software

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

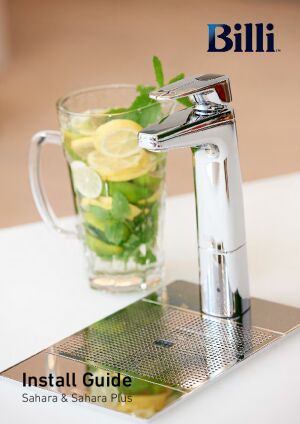

Installation Guide

Product Data Sheet

Object metadata

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bymarketing@billi-uk.com
_Current Revision0
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/
310 UnitPlumFixt_Billi_UnderbenchUnit_Sahara : Billi Sahara 310
Accessibility Performancen/a
Assembly CodeD2020
Asset TypeFixed
BIM Object NamePlumFixt_Assembly_BilliUK_Sahara_XT
Boiling Water Delivery165 cups per hour
CapacityUp to 60
Chilled Sparkling Water Deliveryn/a
Classification NameUniclass2015
Classification ValuePr_40_70_23_42
Code Performancen/a
ColorBR - Brushed
Constituentsn/a
Created Bymarketing@billi-uk.com
Created On2025-02-20T09:00:00
Cups Per Hour NoteBased on a set volume of water being drawn every 30 seconds at an inlet temperature of average temperature 21°C. Each cup is equivalent to 170ml.
CW ConnectionYes
Default Elevation0 mm
DescriptionInstant boiling and still filtered water systems.
Dispenser DesignXT Touch Dispenser
Documentation Certificateswww.billi-uk.com/product/billi-sahara-360-with-xt-touch-dispenser/
Documentation Installation Guidewww.billi-uk.com/wp-content/uploads/2021/10/Billi-Sahara-Install-Guide-2022.pdf
Documentation Literaturewww.billi-uk.com/product/billi-sahara-360-with-xt-touch-dispenser/
Documentation Maintenancewww.billi-uk.com/product/billi-sahara-360-with-xt-touch-dispenser/
Documentation Technicalwww.billi-uk.com/wp-content/uploads/2021/10/6913_Billi-UK_Comm-Datasheets-Sahara-360-XT_FA.pdf
Duration UnitYears
Expected Life0
FeaturesSpace saving design. Easy installation. Energy efficient. HACCP certified. No cupboard ventilation required. BPA free.
Filter 1Filter : 5 Micron Fibron X
Filter 2Filter : 0.2 Micron Fibron XC
Filter 3Filter : HSD Fibron XT
Filter 4Filter : Sediment Only
Filter 5Filter : 0.2 Micron HF Sediment Only
Finishn/a
Font MaterialBilli_Metal_Brushed
Graden/a
HW ConnectionNo
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.FAUCET
KeynoteN13
ManufacturerBilli
Manufacturer NameBilli
Materialn/a
ModelBilli Sahara 360 with XT Touch Dispenser
Model Number943060TBRUK
Model ReferenceBilli Sahara 360 with XT Touch Dispenser
NBS DescriptionInstant boiling and cold water taps
NBS Noten/a
NBS Object NameBilli - Instant boiling and cold water taps
NBS Office Master Tagn/a
NBS Reference90-15-35/485
Nominal Depth464 mm
Nominal Height340 mm
Nominal Length187 mm
Power SupplyA 13amp single switched socket must be positioned at a high level and accessible within the cupboard. The unit comes with a 1 meter flex cord and plug
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Riser MaterialBilli_Metal_Brushed
Shapen/a
Sizen/a
Spare Partsn/a
Tap MaterialBilli_Metal_Brushed
Type CommentsBilli Sahara 360 with XT Touch Dispenser Brushed (943060TBRUK)
Type NameBilli Sahara 360 with XT Touch Dispenser Brushed (943060TBRUK)
Underbench Size340mm h x 180mm w x 460mm d
Underbench UnitPlumFixt_Billi_UnderbenchUnit_Sahara : Billi Sahara
Underbench Unit Depth464 mm
Underbench Unit Height340 mm
Underbench Unit Width187 mm
URLwww.billi-uk.com/product/billi-sahara-360-with-xt-touch-dispenser/
Vent ConnectionNo
Warranty DescriptionAll components of the drinking water systems are covered by a 24-month warranty.
Warranty Duration Labor2
Warranty Duration Parts2
Warranty Duration UnitYears
Warranty Guarantor Laborwww.billi-uk.com/customercare/request-service-support/
Warranty Guarantor Partswww.billi-uk.com/customercare/request-service-support/
Waste ConnectionNo
Water TypeBoiling Still
