Billi Sahara with XL Levered Dispenser

by Billi

Download Add to collection

Description

The Sahara 360 Boiling and Ambient drinking water system is a mid-range commercial capacity system, but still maintains Billi’s core design principles of space saving while requiring no joinery ventilation.

Offering both boiling temperature water and a bottomless supply of filtered ambient temperature water, the Sahara range is convenient and functional.

The XL levered dispenser is streamlined and elegant, with boiling water delivered safely, compliant to the Equality ACT 2010 and at your own pace simply by operating the position-sensitive levers.

Dispenser design	XL Levered
Capacity	Up to 60 Persons
Underbench Size	340mm h x 180mm w x 460mm d
Product Code	943060L
Water Combination	Boiling \| Still

Object Data

1 Revision

Last Updated

15/08/2025

Available Software

EPD

Not Available

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bymarketing@billi-uk.com
_Current Revision0
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/
310 UnitPlumFixt_Billi_UnderbenchUnit_Sahara : Billi Sahara 310
Accessibility Performancen/a
Assembly CodeD2020
Asset TypeFixed
BIM Object NamePlumFixt_Assembly_BilliUK_Sahara_XL
Boiling Water Delivery165 cups per hour
CapacityUp to 60
Chilled Sparkling Water Deliveryn/a
Classification NameUniclass2015
Classification ValuePr_40_70_23_42
Code Performancen/a
ColorBR - Brushed
Constituentsn/a
Created Bymarketing@billi-uk.com
Created On2025-02-20T09:00:00
Cups Per Hour NoteBased on a set volume of water being drawn every 30 seconds at an inlet temperature of average temperature 21°C. Each cup is equivalent to 170ml.
CW ConnectionYes
Default Elevation0 mm
DescriptionInstant boiling and still filtered water systems.
Dispenser DesignXL Levered Dispenser
Documentation Certificateswww.billi-uk.com/product/billi-sahara-360-with-xl-levered-dispenser/

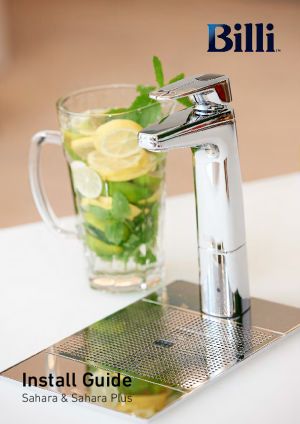

Documentation Installation Guidewww.billi-uk.com/wp-content/uploads/2021/10/Billi-Sahara-Install-Guide-2022.pdf
Documentation Literaturewww.billi-uk.com/product/billi-sahara-360-with-xl-levered-dispenser/
Documentation Maintenancewww.billi-uk.com/product/billi-sahara-360-with-xl-levered-dispenser/
Documentation Technicalwww.billi-uk.com/wp-content/uploads/2021/10/6913_Billi-UK_Comm-Datasheets-Sahara-360-XL_FA.pdf
Duration UnitYears
Expected Life0
FeaturesSpace saving design. Easy installation. Energy efficient. HACCP certified. No cupboard ventilation required. BPA free.
Filter 1Filter : 5 Micron Fibron X
Filter 2Filter : 0.2 Micron Fibron XC
Filter 3Filter : HSD Fibron XT
Filter 4Filter : Sediment Only
Filter 5Filter : 0.2 Micron HF Sediment Only
Finishn/a
Font MaterialBilli_Metal_Brushed
Graden/a
HW ConnectionNo
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.FAUCET
KeynoteN13
Left Lever MaterialBilli_Metal_Brushed
ManufacturerBilli
Manufacturer NameBilli
Materialn/a
ModelBilli Sahara 360 with XL Levered Dispenser
Model Number943060LBRUK
Model ReferenceBilli Sahara 360 with XL Levered Dispenser
NBS DescriptionInstant boiling and cold water taps
NBS Noten/a
NBS Object NameBilli - Instant boiling and cold water taps
NBS Office Master Tagn/a
NBS Reference90-15-35/485
Nominal Depth464 mm
Nominal Height340 mm
Nominal Length187 mm
Power SupplyA 13amp single switched socket must be positioned at a high level and accessible within the cupboard. The unit comes with a 1 meter flex cord and plug
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Right Lever MaterialBilli_Metal_Brushed
Riser MaterialBilli_Metal_Brushed
Shapen/a
Sizen/a
Spare Partsn/a
Tap MaterialBilli_Metal_Brushed
Type CommentsBilli Sahara 360 with XL Levered Dispenser Brushed (943060LBRUK)
Type NameBilli Sahara 360 with XL Levered Dispenser Brushed (943060LBRUK)
Underbench Size340mm h x 180mm w x 460mm d
Underbench UnitPlumFixt_Billi_UnderbenchUnit_Sahara : Billi Sahara
Underbench Unit Depth464 mm
Underbench Unit Height340 mm
Underbench Unit Width187 mm
URLwww.billi-uk.com/product/billi-sahara-360-with-xl-levered-dispenser/
Vent ConnectionNo
Warranty DescriptionAll components of the drinking water systems are covered by a 24-month warranty.
Warranty Duration Labor2
Warranty Duration Parts2
Warranty Duration UnitYears
Warranty Guarantor Laborwww.billi-uk.com/customercare/request-service-support/
Warranty Guarantor Partswww.billi-uk.com/customercare/request-service-support/
Waste ConnectionNo
Water TypeBoiling Still
