Billi Alpine 125 with XR Remote Dispenser

by Billi

Download Add to collection

Description

Enjoy refreshing chilled or continuous supply of ambient temperature filtered water.

Billi’s Alpine 125 offers a premium filtered drinking water experience to account for all preferences.

The XR remote dispenser is an innovative and thoughtful design, with the potential for ambulant or wheelchair-inclusive access via the remote control panel.

Dispenser design	XR Remote Dispenser
Capacity	Up to 40 Persons
Underbench Size	340mm h x 180mm w x 460mm d
Product Code	932125R
Water Combination	Chilled \| Still

Object Data

1 Revision

Last Updated

19/05/2025

Available Software

BSB

Compliant

EPD

Not Available

Accompanying literature

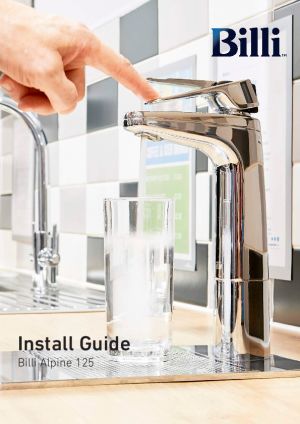

Installation Guide

Product Literature

Technical Data Sheet

Warranty

Product Data Sheet

Object metadata

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Byinfo@billi.com.au
_Current Revision0
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/
Accessibility Performancen/a
Assembly CodeD2020
Asset TypeFixed
BIM Object NamePlumFixt_Assembly_Billi_Alphine125_XR
Boiling Water Deliveryn/a
CapacityUp to 40
Chilled Sparkling Water Delivery120 cups per hour
Classification NameUniclass2015
Classification ValuePr_40_70_23_42
Code Performancen/a
ColorCH - Chrome
Constituentsn/a
Created Byinfo@billi.com.au
Created On2025-02-20T09:00:00
Cups Per Hour NoteBased on a set volume of water being drawn every 30 seconds at an inlet temperature of average temperature 21°C. Each cup is equivalent to 170ml.
CW ConnectionYes
Default Elevation0 mm
DescriptionChilled and still filtered water systems.
Dispenser DesignXR Remote Dispenser
Documentation Certificateswww.billi.com.au/product/billi-alpine-125-with-xr-remote-dispenser/
Documentation Installation Guidewww.billi.com.au/wp-content/uploads/2021/10/Billi_Installation-Guide_Alpine-125-613211-6pp_Rev04-1.pdf
Documentation Literaturewww.billi.com.au/wp-content/uploads/2021/03/Billi-Oct-2024_Commercial-Brochure_Digital_FA.pdf
Documentation Maintenancewww.billi.com.au/product/billi-alpine-125-with-xr-remote-dispenser/
Documentation Technicalwww.billi.com.au/wp-content/uploads/2017/07/Billi-Datasheets-Alpine-125-XR.pdf
Duration UnitYears
Expected Life0
FeaturesEnergy efficient. Adjustable chilled temperature. Adjustable sparkling level. Heat exchange technology. HACCP certified. No cupboard ventilation required. BPA free.
Filter 1Filter : 5 Micron Fibron X
Filter 2Filter : 0.2 Micron Fibron XC
Filter 3Filter : HSD Fibron XT
Filter 4Filter : Sediment Only
Filter 5Filter : 0.2 Micron HF Sediment Only
Finishn/a
Font MaterialBilli_Metal_Chrome
Graden/a
HW ConnectionNo
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.FAUCET
KeynoteN13
ManufacturerBilli
Manufacturer NameBilli
Materialn/a
ModelBilli Alpine 125 with XR Remote Dispenser
Model Number932125RCH
Model ReferenceBilli Alpine 125 with XR Remote Dispenser
NBS DescriptionInstant boiling and cold water taps
NBS Noten/a
NBS Object NameBilli - Instant boiling and cold water taps
NBS Office Master Tagn/a
NBS Reference90-15-35/485
Nominal Depth464 mm
Nominal Height340 mm
Nominal Length181 mm
Power SupplyA standard 10 amp power outlet is required, located no further than 1000mm from the underbench unit. The system is supplied with a 1 metre flex cord and plug
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Riser MaterialBilli_Metal_Chrome
Shapen/a
Sizen/a
Spare Partsn/a
Tap MaterialBilli_Metal_Chrome
Type CommentsBilli Alpine 125 with XR Remote Dispenser Chrome (932125RCH)
Type NameBilli Alpine 125 with XR Remote Dispenser Chrome (932125RCH)
Underbench Size340mm h x 180mm w x 460mm d
Underbench Unit Depth464 mm
Underbench Unit Height340 mm
Underbench Unit Width181 mm
URLwww.billi.com.au/product/billi-alpine-125-with-xr-remote-dispenser/
Vent ConnectionNo
Warranty DescriptionAll components of the drinking water systems are covered by a 24-month warranty.
Warranty Duration Labor2
Warranty Duration Parts2
Warranty Duration UnitYears
Warranty Guarantor Laborservice@billi.com.au
Warranty Guarantor Partsservice@billi.com.au
Waste ConnectionNo
Water TypeChilled Still
