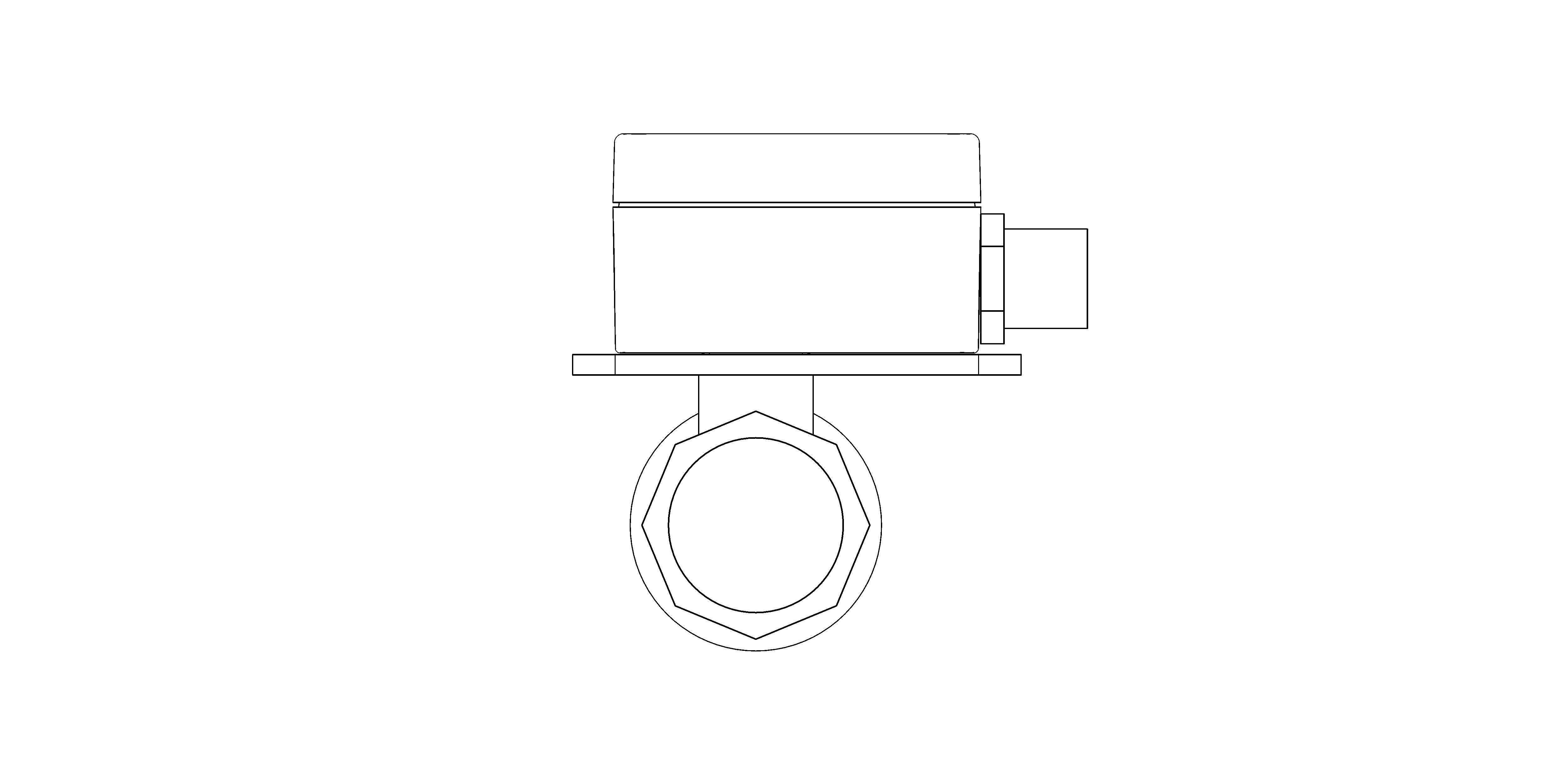

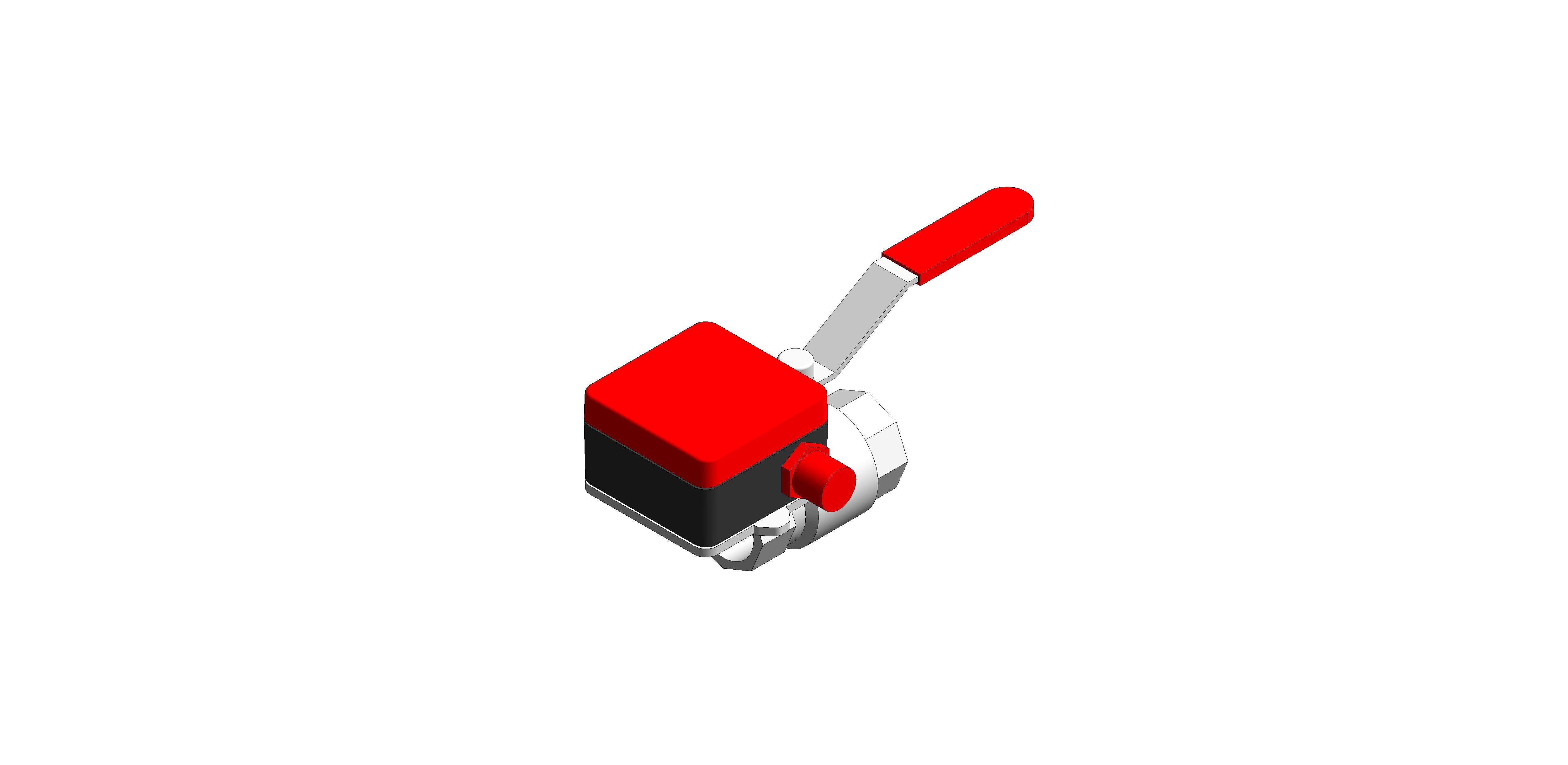

Ball Valve Monitor - RVM
Description
Manifold Valve Monitor for the ball valves on the RMR series.
Object Data
1 Revision
Last Updated
18/09/2024
Available Software
BS1192:4
Compliant
BSB
Compliant
EPD
Not Available
Object metadata
- _AuthorIH
- _Authorized Bybimstore
- _Bim Spec Guid0
- _BS Bible Version17
- _Created Bywww.bimstore.co/
- _Current Revision1
- _Distributed Bywww.bimstore.co/
- _Object User Guidewww.bimstore.co/products/ball-valve-monitor-rvm/document/object-user-guide
- Accessibility Performancen/a
- Assembly CodeD4030
- Asset TypeFixed
- BIM Object NameRiserTeq_ManifoldValve_RVM_BallValveMonitor
- Classification NameUniclass2015
- Classification ValuePr_65_54_30_85
- Code Performancen/a
- ColorSilver and Red
- Constituentsn/a
- Created Bydesign@riserteq.com
- Created On2024-07-30T09:00:00
- D118 mm
- D210 mm
- D313 mm
- Default Elevation0 mm
- DescriptionManifold Valve Monitor for the ball valves on the RMR series
- Diameter 138 mm
- Diameter 246 mm
- Documentation Certificateswww.bimstore.co/products/ball-valve-monitor-rvm/document/product-certificates
- Documentation Installation Guidewww.bimstore.co/products/ball-valve-monitor-rvm/document/installation-guide
- Documentation Literaturewww.bimstore.co/products/ball-valve-monitor-rvm/document/product-literature
- Documentation Maintenancewww.bimstore.co/products/ball-valve-monitor-rvm/document/maintenance-information
- Documentation Technicalwww.bimstore.co/products/ball-valve-monitor-rvm/document/technical-data-sheet
- Duration UnitYears
- Electrical Offset 29 mm
- Electrical Unit BlackRiserTeQ - Black
- Electrical Unit Height26 mm
- Electrical Unit Length107 mm
- Electrical Unit Offset72 mm
- Electrical Unit OrangeRiserTeQ - Red
- Expected Life0
- Featuresn/a
- Finishn/a
- Graden/a
- H140 mm
- H28 mm
- Handle GripRiserTeQ - Red
- Height57 mm
- Ifc Export AsIfcFlowTerminalType
- Ifc Export TypeIfcFireSuppressionTerminalTypeEnum.SPRINKLER
- K Coefficient TableReducer/Coupling/Union/Increaser
- L125 mm
- L22 mm
- Length78 mm
- Loss MethodK Coefficient
- ManufacturerRiserTeQ
- Manufacturer NameRiserTeQ
- MaterialMetal
- ModelRVM Ball Valve Monitor
- Model NumberRVM
- Model ReferenceRVM Ball Valve Monitor - DN25
- NBS DescriptionSprinkler system alarm valves
- NBS Noten/a
- NBS Object NameRiserTeq - Alarm valves for sprinkler systems
- NBS Office Master Tagn/a
- NBS Reference90-35-95/310
- Nominal Depth46 mm
- Nominal Diameter25 mm
- Nominal Height46 mm
- Nominal Length78 mm
- Nominal Radius13 mm
- Nut Length 120 mm
- Nut Length 218 mm
- Nut Size38 mm
- Production Year2024
- Referenced Standardn/a
- Replacement Costn/a
- Shapen/a
- SizeDN25
- Socket Diameter30 mm
- Spare Partsn/a
- Type CommentsRVM Ball Valve Monitor - DN25
- Type NameRVM Ball Valve Monitor - DN25
- URLriserteq.com/products/rmr-valve-monitor/
- Valve MaterialRiserTeQ - Siver
- Warranty Descriptionn/a
- Warranty Duration Labor0
- Warranty Duration Parts0
- Warranty Duration UnitYears
- Warranty Guarantor Laborn/a
- Warranty Guarantor Partssales@riserteq.com
We have more variations, please download the object to get them all.
Sustainability & Environmental Data
Not available.
Environmental Product Declarations
There are no EPDs.
